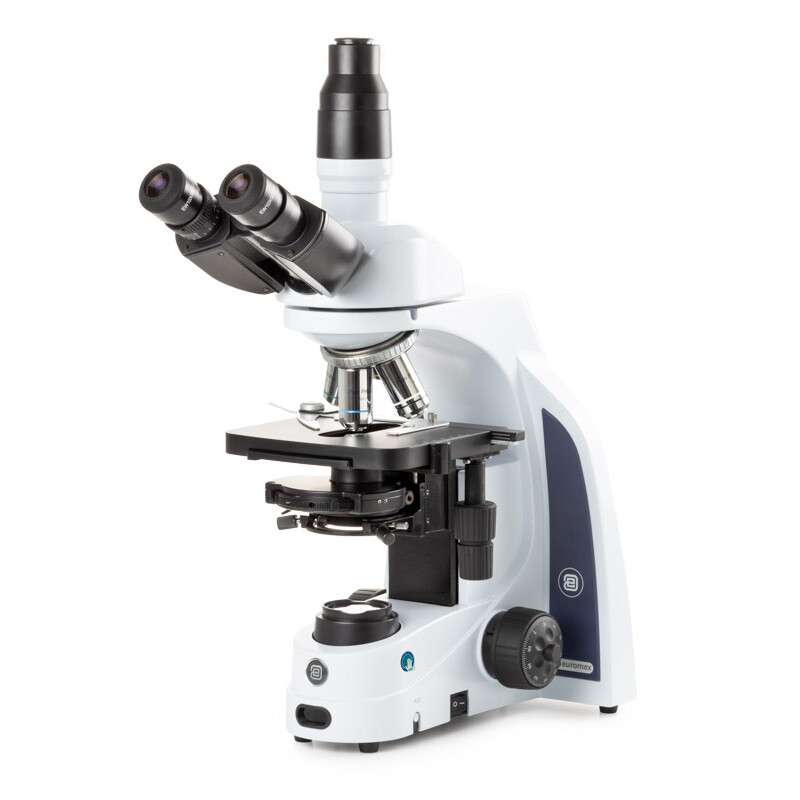

iScope® IS.1153-PLPH – Trinocular microscope with plan phase contrast
The IS.1153‑PLPH expands the PLPH series with trinocular optics and a phototube, making the microscope ideal for digital documentation and teaching purposes. As with the binocular PLPH version, this model offers planachromatic DIN lenses with phase contrast for improved visibility of fine, unstained structures.
Thanks to the 3W NeoLED illumination system, ergonomic design and stable microscope stage, this model is ideal for routine veterinary diagnostics, teaching and training scenarios, and inspection tasks in technically oriented environments.
The trinocular version also facilitates the integration of cameras or staff training, making it a versatile solution for practice, training and visual documentation.
Euromex iScope for phase contrast IS.1153-PLPH
- Eyepieces EWF10x/22 mm
- Head Trinocular with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on both eyepieces
- Nosepiece Revolving quintuple reversed nosepiece on ball bearings
- Objectives Plan PLi 4x/0.10, PLPH 10x/0.25, PLPH S40x/0.65, PLPH S100x/1.25 oil-immersion DIN IOS objectives. All optical parts are anti-fungus treated
- Stage 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
- Condenser In height adjustable Zernike, N.A. 1.25 condenser with positions for darkfield and brightfield.
- Focusing adjustment Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
- Illumination and power supply Diascopic intensity adjustable 3W NeoLED™ illumination with internal 100-240V power supply (no Koehler LED)
- iCare Sensor The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
- CSS - Cable Storage System The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
- Packaging Delivered with power cord, 500 mA 250V spare fuse and dust cover
