Microscopes > Upright microscopes > Bright field microscopes > Euromex > iScope > Euromex Microscope iScope IS.1153-EPL, trino, DIN, e-plan, 40x-1000x, iCare, LED
Product no.: 51449

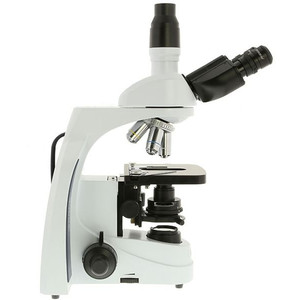

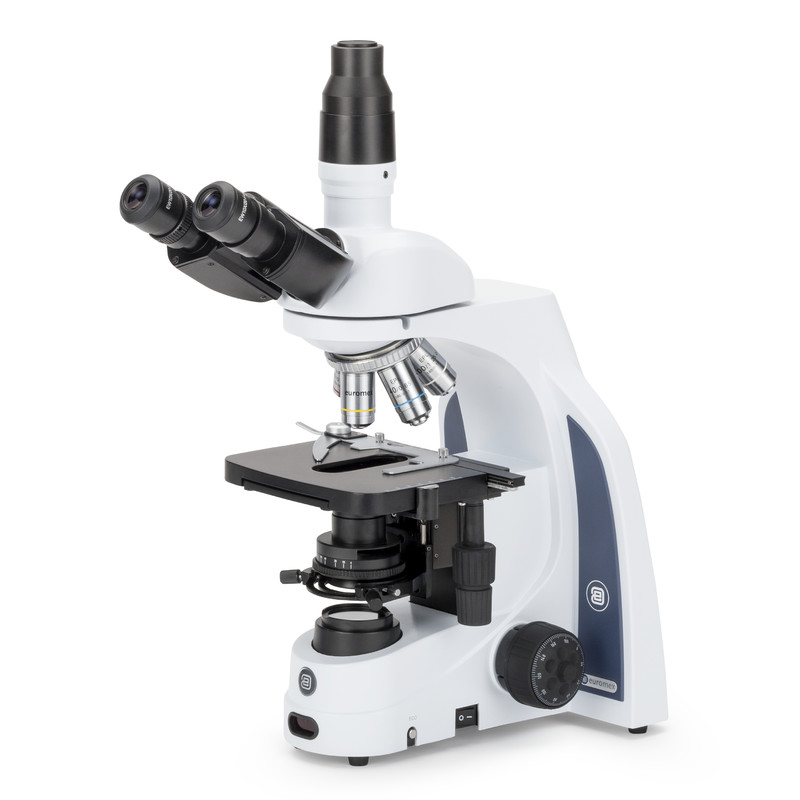

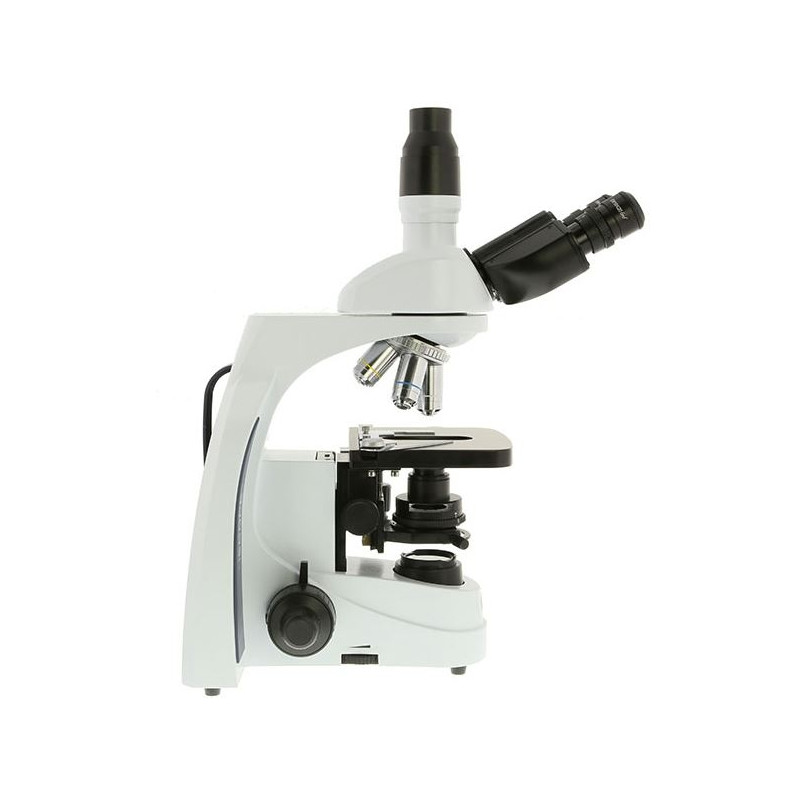

Microscope iScope IS.1153-EPL, trino, DIN, e-plan, 40x-1000x, iCare, LED

$ 1,400.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
This product is available in the following variants:
supplier product number Price
IS.1152-EPL, bino $ 1,350.00
IS.1153-EPL, trino $ 1,400.00
IS.1153-PLPH $ 2,490.00

Product description

More about the series iScope...

Euromex iScope for brightfield IS.1153-EPL

  • Eyepieces EWF10x/20 mm
  • Head Trinocular version with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on left eyepiece
  • Nosepiece Revolving quintuple reversed nosepiece on ball bearings
  • Objectives E-Plan EPL 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil-immersion DIN objectives. All optical parts are anti-fungus treated
  • Stage 140 mm x 160 mm stage equipped with integrated 79 x 52 mm mechanical stage
  • Focusing adjustment Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
  • Illumination and power supply Diascopic intensity adjustable 3W NeoLED™ illumination with internal 100V-240V power supply (CE)
  • iCare Sensor The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
  • CSS - Cable Storage System The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
  • Packaging Delivered with power cord, 500 mA 250V spare fuse and dust cover

Specifications

Optics


Lighting
Transmitted light
Lamp type
LED
Field curvature
Plan
Colour correction
achromatic
Eyepiece
EWF 10x / 20 mm (Ø 23.2 mm)
Number of objectives
4
Objective 1
4x / 0.10 (E-Plan)
Objective 2
10x / 0.25 (E-Plan)
Objective 3
S40x / 0.65 (E-Plan)
Objective 4
S100x / 1.25 (E-Plan)
Suspension
yes
Immersion lens
yes
Condensor
without Köhler LED
infinity corrected
no
Magnification
40 - 1000
Optical system
DIN (160mm)

Capacity


brightfield
yes

Mechanics


Type of build
Trinocular
Focusing
Coarse and fine movement (200 x 1µm)
Specimen stage
Cross table (140 x 160mm (x/y 79 x 52mm))
Revolver
5

General


Series
iScope
Weight (g)
9000
Width (mm)
210
Length (mm)
255
Height (mm)
407

Miscellaneous


supplier product number
IS.1153-EPL, trino

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
