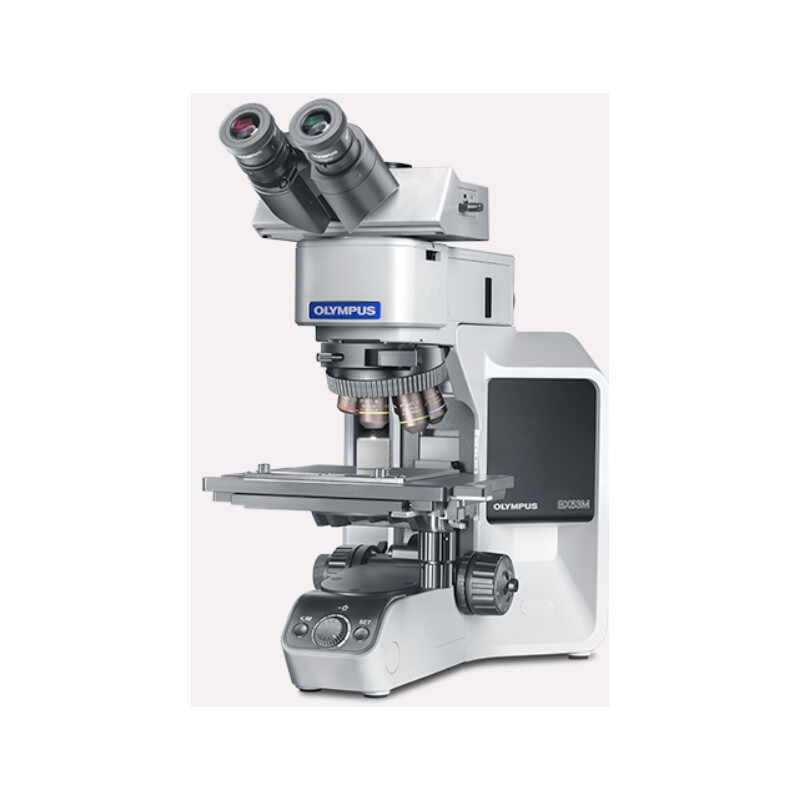

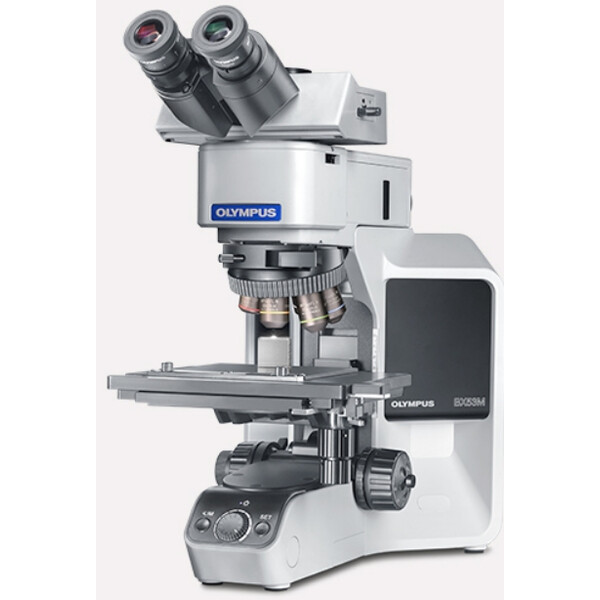

BX53M reflected light for bright field
Specification
- Optical system: infinity corrected
- Tripod: reflected light
- Focus: travel: 25 mm, 100 µm per revolution, smallest division: 1 µm, with upper stop and torque adjustment for coarse adjustment
- Max. height of object: 65 mm (without spacer), 105 mm (with spacer BX3M-ARMAD)
- Observation tube: Wide field of view (F.N,22), inverted: Binocular with camera tube
- Lighting: White light LED
- Objective turret for bright field: 5-fold
- Eyepiece: 10x/22 diopter adjustment on one side
- Table (X x Y) 76 mm × 52 mm Coaxial table with left-hand drive with torque adjustment
- Weight: approx. 15.8 kg (microscope stand 7.4 kg)
Modules included in delivery:
- Tripods &mounts BX53MRF-S-1-3
- Trinocular tube U-TR30-2-2
- Eyepiece WHN10X-1-8
- Eyepiece WHN10X-H-1-8
- U-KMASreflected light condenser
- Light source BX3M-LEDR
- Objective turret U-5RE-2
- Cross table U-SVRM Right-hand drive
- Table insert plate U-MSSP
- Connection cable UYCP
Objectives can be ordered separately; they are not included in the scope of delivery!
Please select your preferred accessories for this model: MPLFLN lenses
Modern microscopy made easy
With its modular concept, the BX3M series offers versatility for a wide range of applications in industry and materials research. Thanks to improved integration with OLYMPUS Stream software, BX53M microscopes enable smooth workflows for standard microscopy applications and digital imaging, from examination to reporting.
Easily use familiar procedures:
Simple light source
The light source minimises complicated steps that are usually required when working with a microscope. The adjustment knob on the front of the condenser allows the microscopy method to be selected conveniently. Users can quickly switch between the most commonly used methods of reflected light microscopy, from bright field to dark field or polarised light microscopy, to easily perform different types of analysis. In addition, simple polarised light microscopy can be adjusted by rotating the analyser.
Intuitive microscope controls:
Simple adjustment of the illumination field diaphragm and aperture diaphragm
Correct adjustment of the illumination field and aperture diaphragm ensures good image contrast and full utilisation of the numerical aperture of the objective. The Legend guides the user through the correct settings for the respective microscopy method and the objective used.
Fast focus adjustment
The focus scale on the tripod facilitates quick focusing. Users can roughly adjust the focus without looking through an eyepiece, saving time when examining objects of different heights.
Easy and ergonomic operation
Ergonomics is of paramount importance for all users. Whether a user is using their microscope on its own or in conjunction with OLYMPS Stream image analysis software, they will benefit from the ergonomic hand switches that clearly indicate the position of the hardware. The ergonomic hand switches allow the user to concentrate on their sample and its inspection.
For consistent lighting:
Light intensity manager
During initial setup, the light intensity can be adjusted to match the hardware configuration of the coded light source and/or coded objective turret.
Restoring microscope settings:
Coded hardware
Coded functions integrate the system settings of the BX53M microscope into the OLYMPUS Stream image analysis software. Microscopy methods, illumination intensity and magnification are automatically recorded by the software with the corresponding images. This allows the user to always perform inspections with the same microscopy settings, which improves the reliability of the inspection results.
Consistent colour temperature:
Bright white LED light source
The BX53M microscope uses bright white LED light sources for both reflected and transmitted light. The LED ensures a consistent colour temperature regardless of brightness. Long-life LEDs provide efficient lighting and are ideal for inspection applications in materials research.
Optical system: UIS2 optical system (infinitely corrected)
Focus travel: 25 mm
Fine adjustment: 100 µm per revolution
Smallest subdivision: 1 µm With upper stop and torque adjustment for coarse adjustment
Max. height of object: Incident light: 65 mm (without spacer), 105 mm (with BX3M-ARMAD) Incident light/transmitted light: 35 mm (without spacer), 75 mm (with BX3M-ARMAD)
Eyepieces: 10x/22
Lighting: Reflected light: White light LED, HF/DF/DIC/POL/MIX Illuminated field diaphragm, aperture diaphragm (with centring mechanism), HF/DF lock
Transmitted lightCoded, white light LED, HF/DF/DIC/POL/MIX illuminated field diaphragm, aperture diaphragm (with centring mechanism), HF/DF lock
Objective turret for bright field: 5-fold
Objective turret for HF, DF, MIX: 6-fold
Condenser large working distance
Table (X x Y) 76 mm × 52 mm
Objectives not included.
Function
The BX53M supports the familiar methods of conventional microscopy such as bright field, dark field, polarised light and differential interference contrast. In the development of new materials, many of the difficulties encountered in standard methods of defect detection can be solved by modern microscopy techniques, which enable more accurate and reliable testing. New illumination techniques and image acquisition options with the OLYMPUS Stream image analysis software offer users more choices for evaluating their samples and documenting their results.
- The invisible becomes visible
- Sharp images of the entire object
- Effortless table adjustment for overview images
- Display of both dark and light areas
- Adaptable to microscopy and analysis preferences
- Designed for a wide variety of samples
