Mikroskopie-Zubehör > Kameras > Kameras > Optika > WiFi > Optika Kamera m WiFi, 4083.WiFi, color, CMOS, 1/2.5", 5 MP, WiFi
Artikel-Nr.: 51442

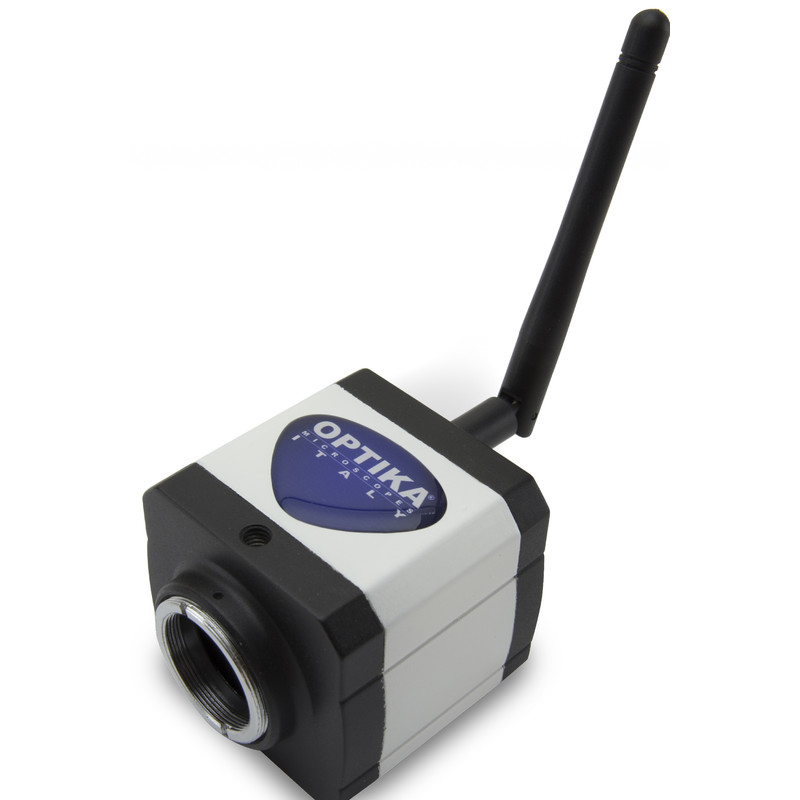

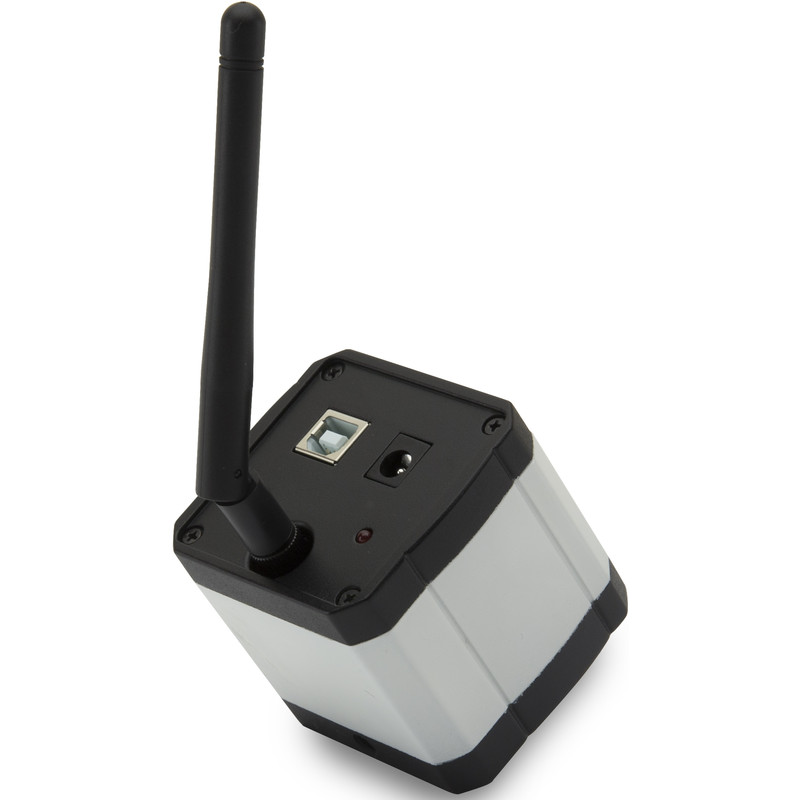

Kamera m WiFi, 4083.WiFi, color, CMOS, 1/2.5", 5 MP, WiFi

$ 494,- Aktionspreis:
$ 302,94 inkl. MwSt, zzgl. Versandkosten
inkl. Bestpreis-Garantie
auf Lager
versandfertig in 24 h + Laufzeit
Express-Versand bis übermorgen, 08.11.2024, möglich!

Artikelbeschreibung

Optikam WiFi - 4083.WiFi C and C-Short mount, Eyepieces Camera

  • Sensor Size 1\2.5”
  • PC camera resolution 5 MegaPixels
  • WI-FI camera resolution 2 MegaPixels
  • Signal output USB 2.0, WiFi
  • Audio Signal NO
  • Sensor technology Micron CMOS
  • Image format 4\3
  • Full Image size 2592 x 1944
  • Pixel size 2,2 x 2,2 micron
  • USB Frame rate Full resolution 3 frames/sec: 2592 x 1944
  • USB Frame rate other resolutions 11 frames/sec: 640 x 480, 8 frames/sec: 1024 x 768
  • WiFi Frame rate Low resolution 2 frames/sec: 640 x 480 with 10 users
  • WiFi Frame rate other resolutions 1 frames/sec: 1024 x 768 with 10 users, 1 frames/3sec: 1600 x 1200 with 10 users
  • WiFi Speed 802.11n 150Mbps
  • WiFi Signal from the camera
  • WiFi Router requirements NO
  • WiFi password NO
  • WiFi Antenna 2.4GHz 5DB
  • WiFi Signal ready to About 40 sec from the first power up
  • Ethernet port NO
  • Sensitivity 0.53 V/Lux-Second at 550nm
  • Signal / noise ratio 40.5 dB
  • Dynamic range >60 dB
  • Max Exposure time Automatic
  • ADC conversion 8 BIT
  • Color Depth 8 BIT
  • ON board Memory NO
  • External Memory Card NO
  • External camera power 5 V 2000mA
  • Cooling system NO
  • External Cooling power NO
  • On camera case IR Filter 650 nm
  • Automatic White Balance Auto / Man
  • Automatic Gain Control Auto / Man
  • Automatic Back light control Auto / Man
  • Exposure control Auto / Man
  • C-Mount connection YES, Available
  • CS-Mount connection YES, ready

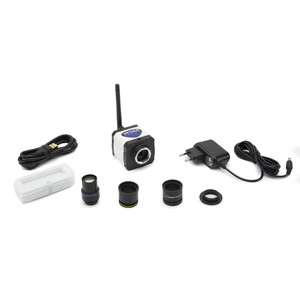

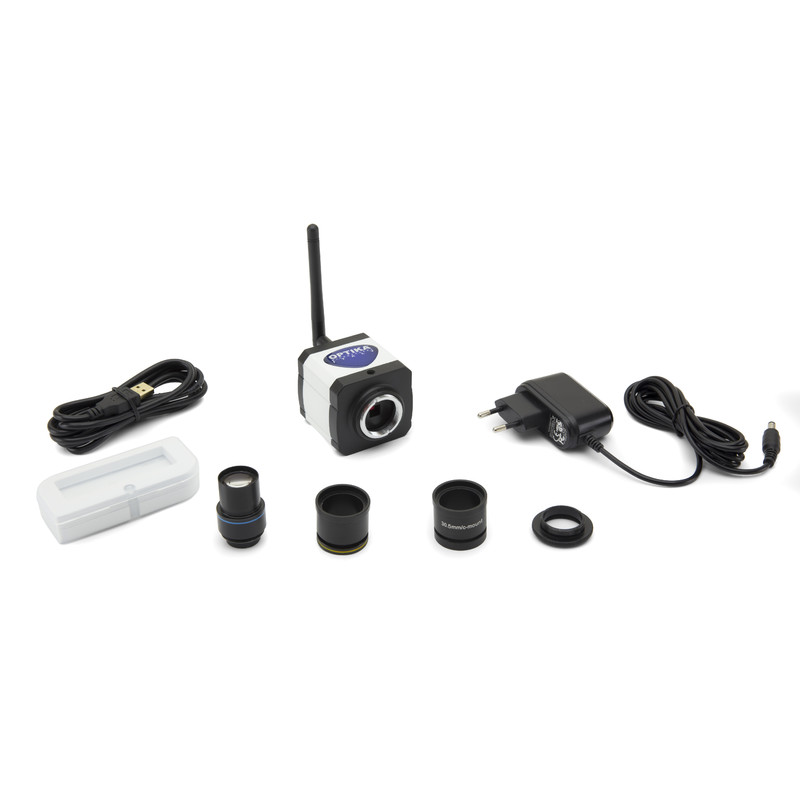

Scope of delivery

  • CS-mount to C-mount Ring SI
  • Optical adapters 0,45x (for 23mm eyepiece tube)
  • Adapters for Binocular & Monocular microscopes 30 and 30,5 mm diameter
  • Calibration Slide YES
  • Always Included 1.8 m USB cable, power supply, Installation manual, CD Rom

Software specification

  • WiFi System requirements Windows Tablet, Android Tablet, IOS Tablet, IOS Phone, Android Phone, Windows Phone, BlackBerry
  • WiFi users allowed
  • 10 Users: good live view speed,
  • 20 Users: slow live view speed,
  • 30 Users: very slow live view Speed
  • WiFi available APP Via Browser: NO APP is needed
  • WiFi Additional available APP For IOS and Android
  • WiFi Capture features Image size
  • WiFi Control parameters Automatic
  • USB System requirements Windows Vista / win7 / win8 / win10 / 32-64 bit , USB 2.0
  • USB Supplied Software Optika Vision Lite
  • USB Driver types No Driver ( Microsoft Driver )
  • USB Capture features Continuous auto white balance, continuous auto exposure, image size, image capture,compressed video capture
  • USB Control parameters Brightness, contrast, tonality, saturation, sharpness, gamma, white Balance, background
  • Working temperature +0 up to +50°C
  • Storage temperature -10 up to +50°C
  • Relative Humidity up to 80%
  • Dimensions 7 x 7 cm
  • Height: 4 cm
  • Height with optical adapter: 12 cm
  • Weight 80 gr

Technische Daten

Leistung


Chipgröße (mm)
1/2.5"
Megapixel
5
Lichtempfindlichkeit (Lux)
0.53 V/Lux-s (550nm)
Bildformat
4/3
Auflösung Foto (Pixel)
2592 x 1944 (USB)
Auflösung Video (Pixel)
1024 x 768 (WiFi)
Interner Speicher (Megabyte)
-
LCD-Bildschirm (Zoll)
-
TV-Ausgang
-
Schnittstelle
USB 2.0
Videofunktion
ja

Kamera


Megapixel
5
Peltier-Kühlung
nein
Farbkamera
ja
Bildübertragung
WiFi
Chipgröße (″)
1/2.5
Sensor
CMOS
Pixelgröße (µm)
2.2 x 2.2
Auflösung Foto (Pixel)
2592x1944
Bildfrequenz (fps)
11
Kameraverschluss
Rolling Shutter
Benötigter Adapter
0.5x
Software
VisionLite
Unterstützte Betriebssysteme
Windows

Allgemein


Länge (mm)
7
Breite (mm)
7
Höhe (mm)
12
Gewicht (g)
80
Serie
WiFi

Sonstiges


Lieferanten Produktnummer
4083.WiFi
Optika Kamera m WiFi, 4083.WiFi, color, CMOS, 1/2.5", 5 MP, WiFi
Optika Kamera m WiFi, 4083.WiFi, color, CMOS, 1/2.5", 5 MP, WiFi
Optika Kamera m WiFi, 4083.WiFi, color, CMOS, 1/2.5", 5 MP, WiFi
Optika Kamera m WiFi, 4083.WiFi, color, CMOS, 1/2.5", 5 MP, WiFi
