En savoir plus sur la série SZN...
Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

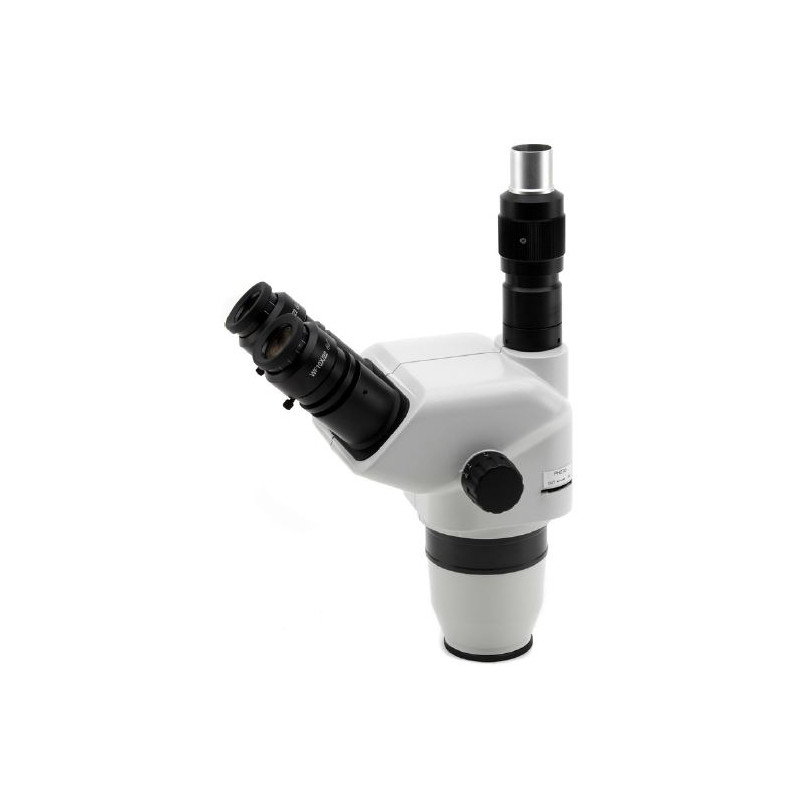

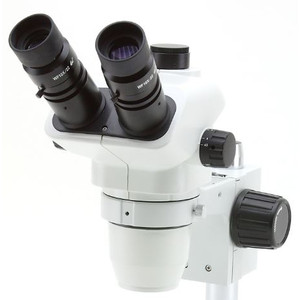

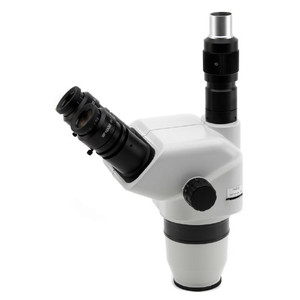

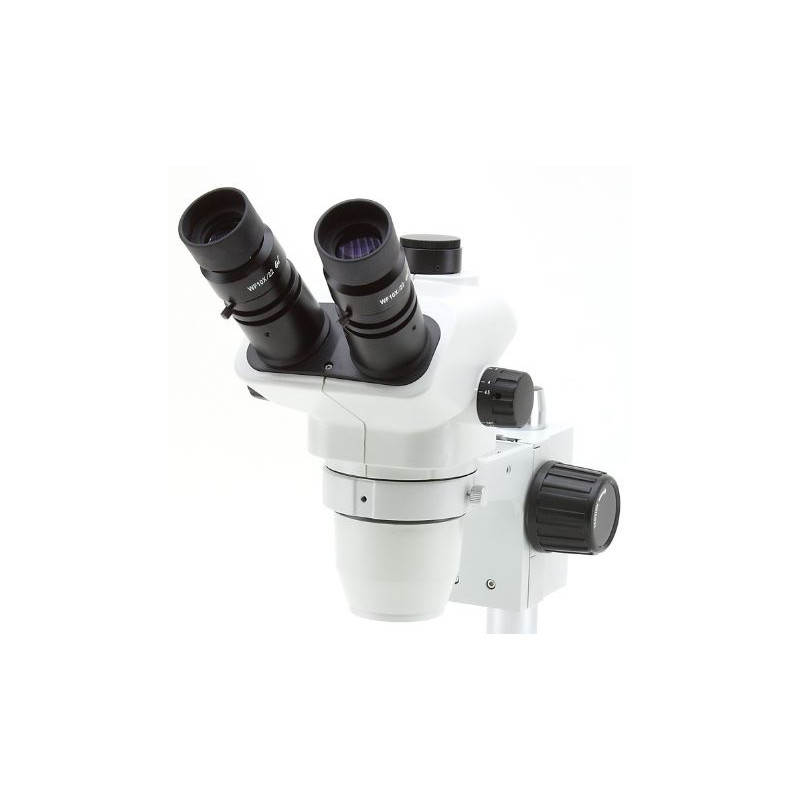

SZN-T trinocular stereozoom head
Illumination:
The microscope has no illumination system, but it can be used with external illuminators (halogen, LED or optical fibers) or with the following models:
ST-151; ST-153; SZ-STL3Led; ST-155; ST-156; SZ-STL8
Focusing:
The microscope can be used with the following models of stand:
ST-150; ST-151; ST-152; ST-153; SZ-STL1H; SZ-STL2H; SZ-STL3Led; SZ-STL3; SZ-STL4; ST-155; ST-156; SZ-STL8
As an alternative it's possible to use focusing systems with a 76 mm diameter head holder.
Head:
- Trinocular 360° rotating and 45° inclined.
- Adjustment +- 5 diopters on both eyepieces.
- Interpupillary adjustment 55-75 mm.
Eyepieces:
- Widefield eyepieces WF10x/22 with field number 22.
- Parfocal achromatic objective 1X
- Working distance: 110 mm
- Zoom range: 0,67x - 4,5x (zoom factor: 6,71:1).
- Maximum magnification in standard configuration: 45X (can be increased to 225X).
Accessories:
Instruction manual and dust cover included.
