Cabazal estereo microsopio Cabezal trinocular con zoom, con oculares SZN-T

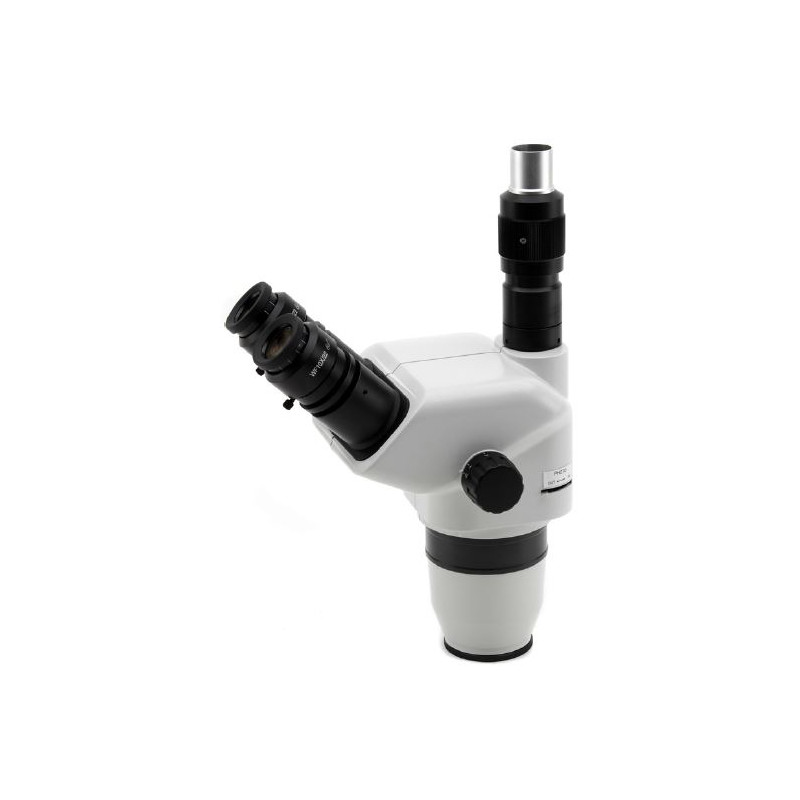

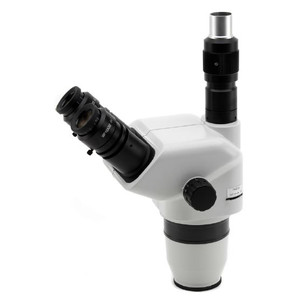

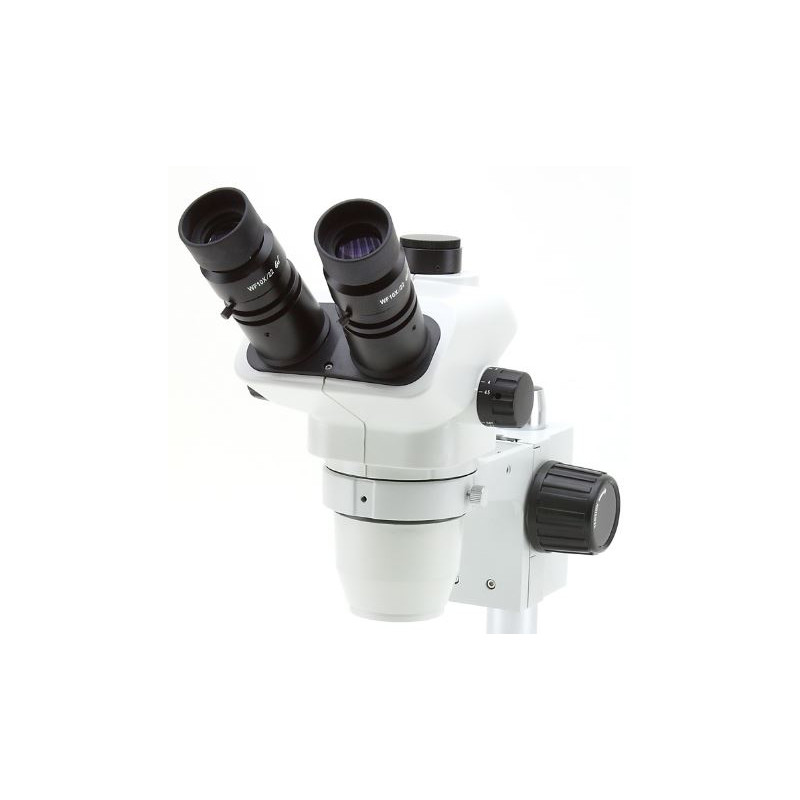

SZN-T trinocular stereozoom head

Illumination:

The microscope has no illumination system, but it can be used with external illuminators (halogen, LED or optical fibers) or with the following models:

ST-151; ST-153; SZ-STL3Led; ST-155; ST-156; SZ-STL8

Focusing:

The microscope can be used with the following models of stand:

ST-150; ST-151; ST-152; ST-153; SZ-STL1H; SZ-STL2H; SZ-STL3Led; SZ-STL3; SZ-STL4; ST-155; ST-156; SZ-STL8

As an alternative it's possible to use focusing systems with a 76 mm diameter head holder.

Head:

• Trinocular 360° rotating and 45° inclined.
• Adjustment +- 5 diopters on both eyepieces.
• Interpupillary adjustment 55-75 mm.

Eyepieces:

• Widefield eyepieces WF10x/22 with field number 22.
• Parfocal achromatic objective 1X
• Working distance: 110 mm
• Zoom range: 0,67x - 4,5x (zoom factor: 6,71:1).
• Maximum magnification in standard configuration: 45X (can be increased to 225X).

Accessories:

Instruction manual and dust cover included.
