Euromex BlueScope BL.1653 microscope, trino, INFINITY, semi-plan 40-600x, DL, LED

Product no.: 90472

BlueScope BL.1653 microscope, trino, INFINITY, semi-plan 40-600x, DL, LED

Name: Euromex BlueScope BL.1653 microscope, trino, INFINITY, semi-plan 40-600x, DL, LED
Brand: Euromex

Price still unknown!

short-term
ready for shipping in 1-2 weeks + lead time

If you are interested in this product, please contact our customer service:

Contact our service

Product questions?

advice for Microscopy

This product is available in the following variants:
	supplier product number	Price
	BL.1051	$ 0.00
	BL.1151	$ 0.00
	BL.1152	$ 0.00
	BL.1153	$ 0.00
	BL.1651	$ 0.00
	BL.1652	$ 0.00
	BL.1653	$ 0.00

Product description

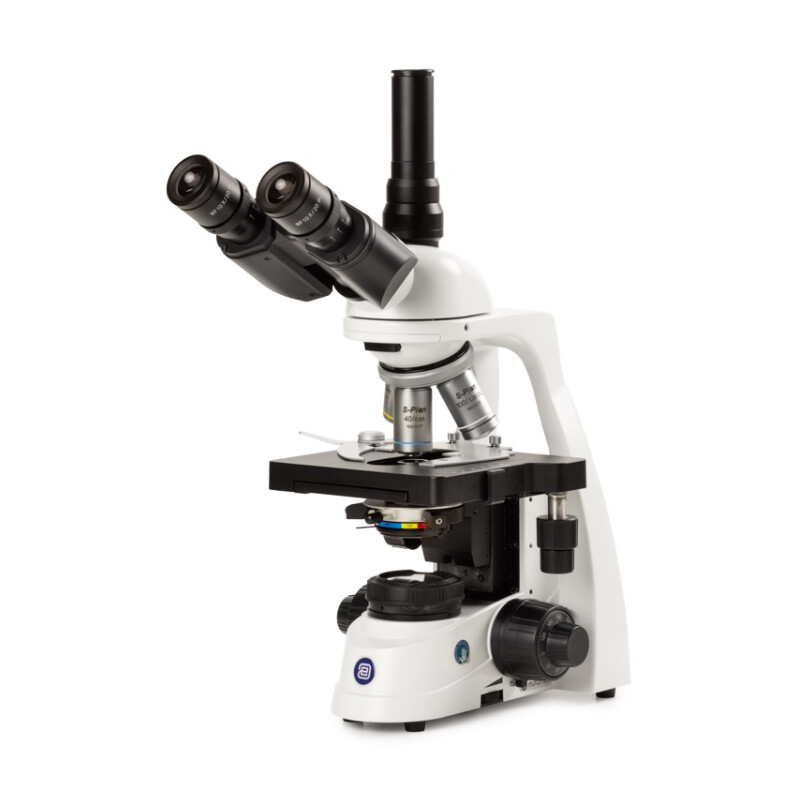

Euromex BlueScope BL.1653 – trinocular transmitted light microscope with S60x Semi-Plan (up to 600x)
The Euromex BlueScope BL.1653 is a robust trinocular transmitted light microscope (bright field) for education, universities and small laboratories. Its unique selling point is that it combines Köhler lighting, Dual-NeoLED™ (white + halogen colour), an integrated mechanical X-Y cross table (rackless) and USB-C power supply (5V) - combined with an S60x/0.85 semi-plan objective for higher detail resolution without oil immersion.

The BlueScope series is designed for environments where microscopes are used frequently and shared by several people – with a focus on durability, safety and ergonomics (including a rackless stage and adjustable head position). The trinocular concept of the BL.1653 is particularly suitable for teaching and routine use when, in addition to visual observation on the binocular tube, a phototube for documentation or an optional camera is to be provided.

Highlights

Köhler lighting is integrated for uniform and reproducible lighting. The practical highlight is the dual lighting with 3 W white NeoLED™ (6000-6500 K) and 3 W halogen-coloured NeoLED™ (3000-3200 K) for adjusting the image effect/contrast depending on the specimen.
Workflow functions for everyday course and laboratory use: Quick FOCUS Aid, smart storage compartment for accessories and a slot for polarisation filters. The mechanical X-Y cross table (rackless) supports the systematic examination of specimens.
Optics/mechanics: trinocular head (360° rotatable) with fixed 50:50 beam splitter and upright image, plus colour-coded, height-adjustable Abbe condenser (N.A. 1.25) with iris diaphragm and filter holder.
Shared use suitability: Universal USB-C 5V, anti-theft option (Kensington slot) and for the series.

Model differences within the BlueScope series

The BL.1653 is the trinocular BlueScope model, which supplements the standard semi-plan configuration (4x/10x/S40x) with an S60x objective, enabling it to operate at up to 600x without oil immersion.

Scope of delivery

Blue filter
Allen key
5 ml immersion oil
100-240 Vac / 5 Vdc USB multi-plug power adapter
3× rechargeable AA batteries
Manual
dust cover

Specifications

Optics

Magnification

40 - 400

infinity corrected

yes

Field curvature

Plan

Lighting

Transmitted light

Lamp type

LED

Eyepiece

WF 10x / 20 mm (C-HBHB camera, 1080p, 2 MP CMOS, HDMI, multi-plugCost-effective, entry-level HD camera with 1080p, 2 MP resolution, CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card. Allows you to easily take measurements of samples or parts of them with a series of tools via software such as lines, angles and many more.It also supports excel storage. Connection into the eyepiece tube or to the trinocular tube of any microscope brand via dedicated adapter (to be purchased separately).Wireless mouse, SD card and built-in software included.Highlights<ul><li>Simple operation, built-in software</li><li>Universal connection to any microscope brand</li><li>Crisp Full HD images</li><li>High frame rate</li><li>Reliable color fidelity</li><li>C-mount connection (via dedicated adapter, on any microscope)</li><li>HDMI cable, mouse and SD card included</li></ul>)

Number of objectives

Objective 1

4x / 0.10 (Semi-Plan Achromatic)

Objective 2

10x / 0.25 (Semi-Plan Achromatic)

Objective 3

S40x / 0.65 (Semi-Plan Achromatic)

Immersion lens

yes

Colour correction

achromatic

Condensor

Abbe N.A. 1.25 (Abbe 1.25 N.A., focus adjustable, with iris diaphragm)

Optical system

infinity

Capacity

brightfield

yes

Phase contrast

Mechanics

Type of build

Mono

Viewing posture (°)

45° angled eyepiece, 360° rotatable

Focusing

Coarse and fine movement (140x135 mm)

Specimen stage

Specimen stage (C-HBHB camera, 1080p, 2 MP CMOS, HDMI, multi-plugCost-effective, entry-level HD camera with 1080p, 2 MP resolution, CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card. Allows you to easily take measurements of samples or parts of them with a series of tools via software such as lines, angles and many more.It also supports excel storage. Connection into the eyepiece tube or to the trinocular tube of any microscope brand via dedicated adapter (to be purchased separately).Wireless mouse, SD card and built-in software included.Highlights<ul><li>Simple operation, built-in software</li><li>Universal connection to any microscope brand</li><li>Crisp Full HD images</li><li>High frame rate</li><li>Reliable color fidelity</li><li>C-mount connection (via dedicated adapter, on any microscope)</li><li>HDMI cable, mouse and SD card included</li></ul>)

Revolver
