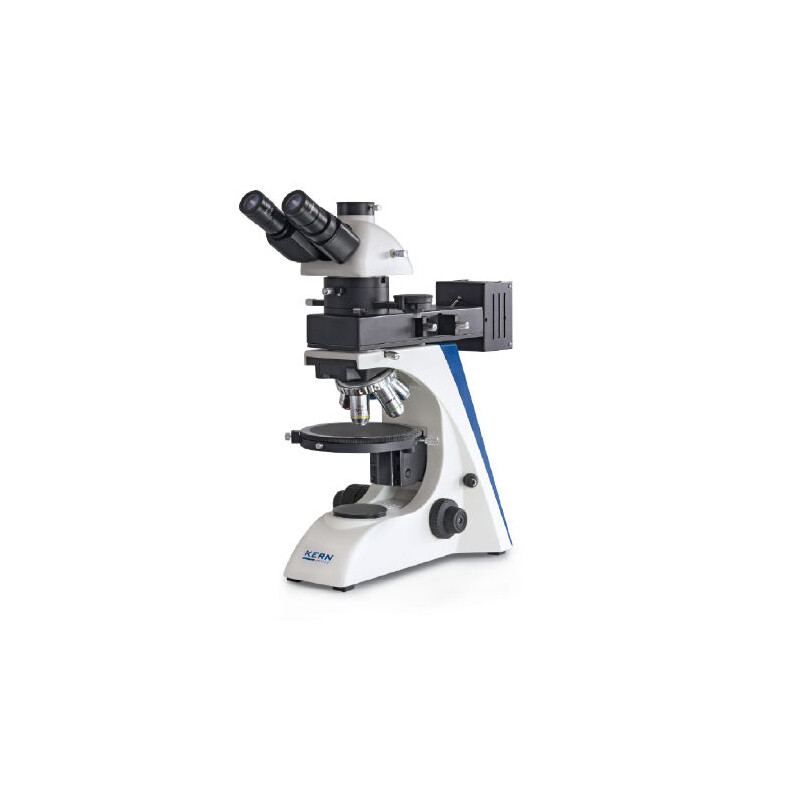

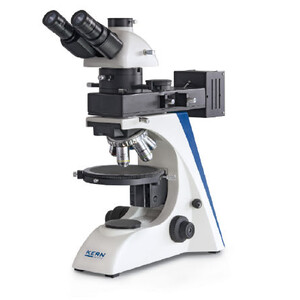

Microscoop OPN 184, POL, trino, Inf plan, 40x-400x, Incident light, HAL, 100W

• These devices are professional, fully-equipped polarising microscopes, which use light polarisation to analyse minerals, crystals and isotropic materials
• Complete Köhler illumination is integrated into all ranges as standard

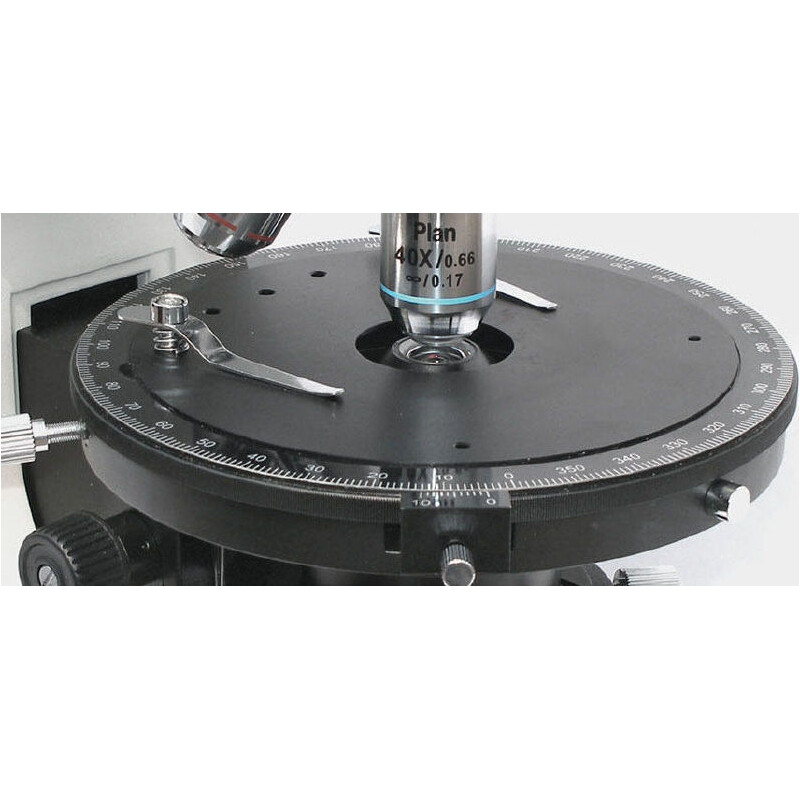

• A 360° revolving stage with 1° division, 6’ fine division and locking function is integrated into all ranges as standard

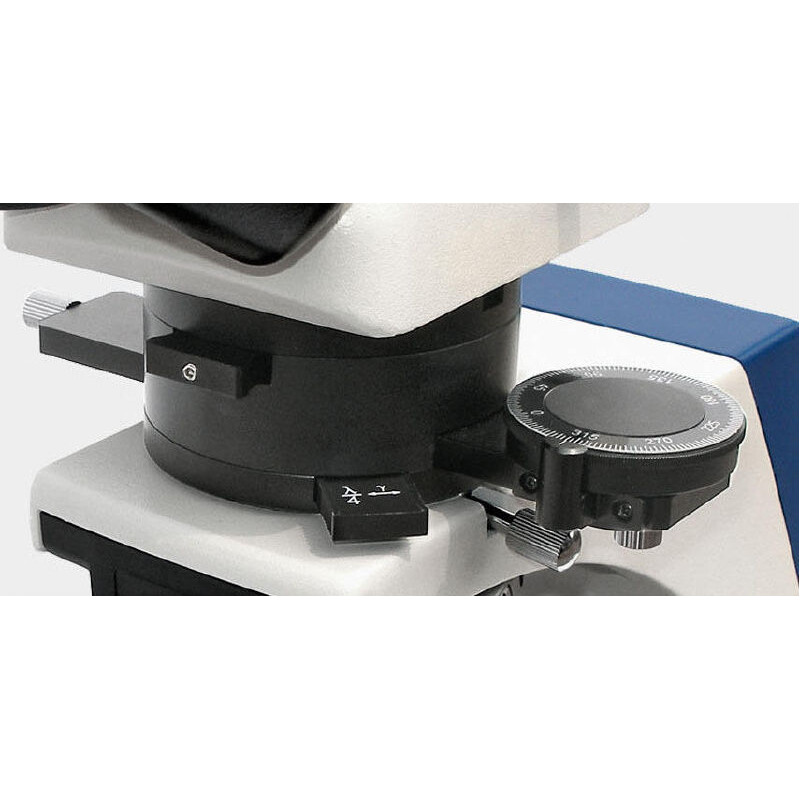

• As standard all series are fitted with a complete polarizing unit with scale, a Bertrand lens, a ? + 1/4 ? Slip as well as a quartz wedge
• A large selection of accessories such as, for example, a mechanical stage attachment as well as further objectives for long working distance and filter units are also available
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
• A C-mount adapter is required to connect a camera. You can select this adapter from the following model outfit list

Scope of application

• Mineralogy, texture observations, material testing, observation of crystals

Applications/Samples

• More complex samples with polarising properties

Technical data

• Infinity optical system
• 5-fold lens revolving unit
• Siedentopf inclined, 360° rotatable
• Dioptre compensation one-sided
• Overall dimensions W×D×H 480×200×510 mm
• Net weight approx. 11,978 kg
