Microscopen > Staande microscopen > Fluorescence microscopen > Optika > B-380 > Optika Microscoop B-383FL-EUIV, trino, FL-HBO, B&G Filter, N-PLAN, IOS, 40x-1000x, EU, IVD
Artikelnummer: 67784

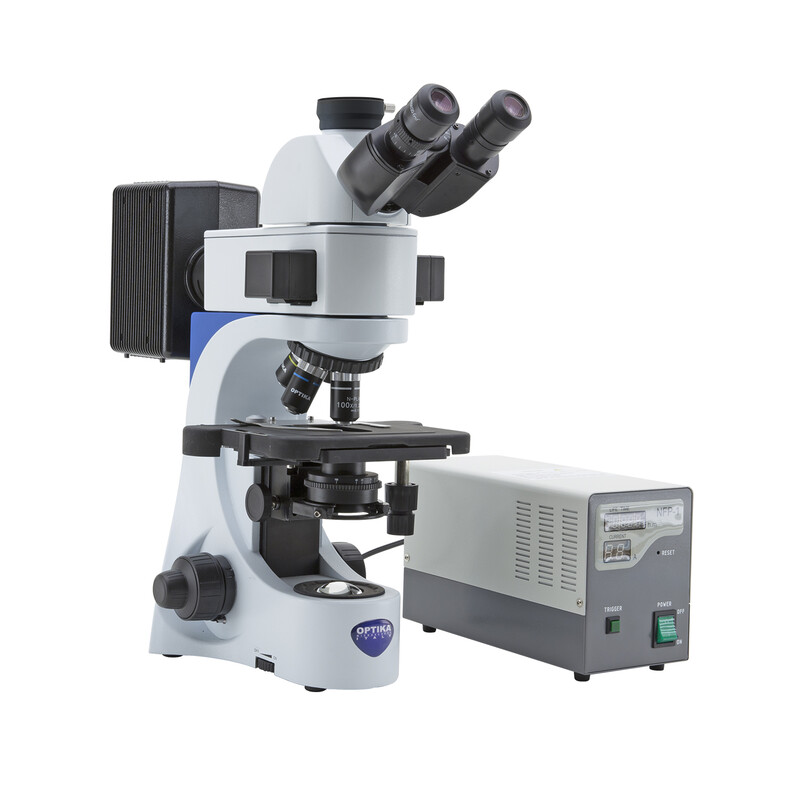

Microscoop B-383FL-EUIV, trino, FL-HBO, B&G Filter, N-PLAN, IOS, 40x-1000x, EU, IVD

Aanbevolen prijs: $ 4.390,00 Onze prijs:
$ 3.960,00 incl.btw + verzendkosten
Heeft u elders goedkoper gezien?
lange termijn
Niet meer beschikbaar + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

B-383FL

Laboratory upright microscope for brightfield and fluorescence observations with IOS N-PLAN objectives. The HBO fluorescence illuminator provides an outstanding flexibility of use, standing the blue and green filter sets (supplied as standard) for Auramine, FITC, GFP and YFP (with blue filter set) plus Rhodamine, Texas Red and TRITC (with the green one), yet giving the possibility to combine any other specific filter sets for future upgrade. Transmitted light through the exclusive X-LED3 to ensure great-looking, rich and high-quality specimen view.

B-383FL

Observation mode: Brightfield, HBO fluorescence.

Epi-illumination and filters: HBO 100 W high pressure mercury lamp. 3-position filter holder; blue and green included.

Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.

Interpupillary distance: Adjustable between 48 and 75 mm.

Dioptric adjustment: On the left eyepiece tube.

Eyepieces: WF10x/20 mm, high eye-point and secured by screw.

Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.

Objectives:

  • IOS N-PLAN 4x/0.10
  • IOS N-PLAN 10x/0.25
  • IOS N-PLAN 20x/0.40
  • IOS N-PLAN 40x/0.65
  • IOS N-PLAN 100x/1.25 (Oil/Water)

All with anti-fungus treatment.

Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.

Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.

Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.

Transmitted illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.

Specificaties

Optiek


Oculair
10 (WF 10x/20 mm)
Lens type
4x, 10x, 20x, 40x, 100x
Lamp type
LED (X-LED3, 3,6 W vergelijkbaar met 50 W lamp; kleurtemperatuur 6300K)
Condensor
Abbe 1,25 N.A. focuseerbaar met iris diafragma
Belichting
Doorgelaten licht
Vergroting
1000 (40, 100, 400, 1000)

Capaciteit


Kleurtemperatuur (K)
6300 K
Brightness control
manuele helderheidsregeling
Lamp type
HBO hogedrukkwikdamplamp M-151, 100W, voor fluorescentie
Fluorescence
ja
Brightfield
ja
Stroomvoorziening
EU, IVD

Mechaniek


Ontwerp
Trinocular
Scherpstellen
Grove en fijn afstelling (0.002mm graduation, with locking function as object protection)
inzicht (°)
30° schuin zicht, kop 360° roteerbaar
Revolver
5

Bijzonderheden


Centreerfase
ja (233 mm x 147 mm; verplaatsingsbereik: 78x54 mm; riemaandrijving in x-richting, nonius-schaal in 2 assen, nauwkeurigheid 0,1 mm)
Wide-angle oculair
ja (10 x / 20)

Algemeen


Breedte (mm)
210
Kleur
grijs / zwart
Gewicht (g)
4000
Hoogte (mm)
480
Serie
B-380
Lengte (mm)
370

Werkwijze contrast


Fluorescence
ja

Toepassingsgebied


Medicijn
ja

Toepassing


Interference contrast
-
Metallurgie
-
Mineralogie
ja

Productveiligheid

Fabrikant: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
