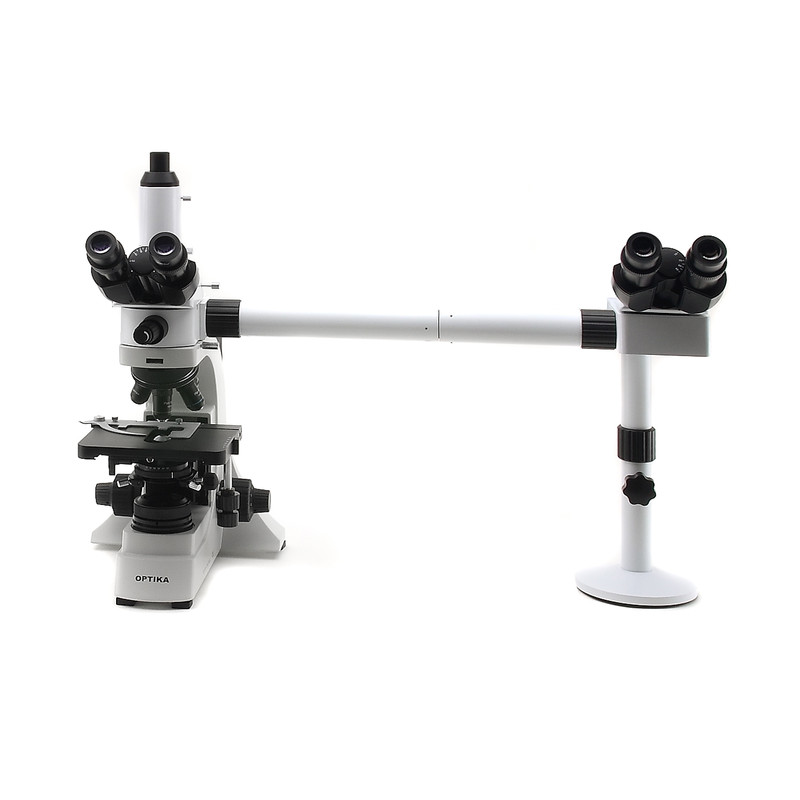

B-500Ti-2
Discussion microscope, 2-head, Plan IOS objectives 4x, 10x, 40x, 100x, X-LED illumination
TECHNICAL SPECIFICATIONS:
Model: B-500Ti-2
Optical System: IOS
Head: Main Head: trino 360°/30°.
1 discussion heads: bino 360°/30°
Eyepieces: Main head:WF10X/22mm
Discussion heads: WF10x/20mm
Objectives: Infinity Plan Achro 4x, 10x, 40x, 100x (oil immersion)
Revolver: Quintuple reversed
Stage: Double layer with mechanical sliding stage, 175x145 mm
Focusing: Coaxial coarse and fine control knobs
Condenser: Swing-out 0.90 N.A., centrable
Illuminator: OPTIKA X-LED™ illuminator. Discussion laser pointer under the head.
