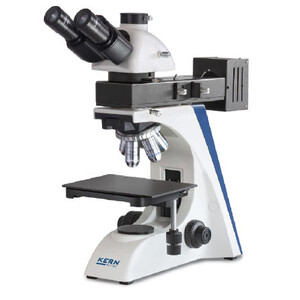

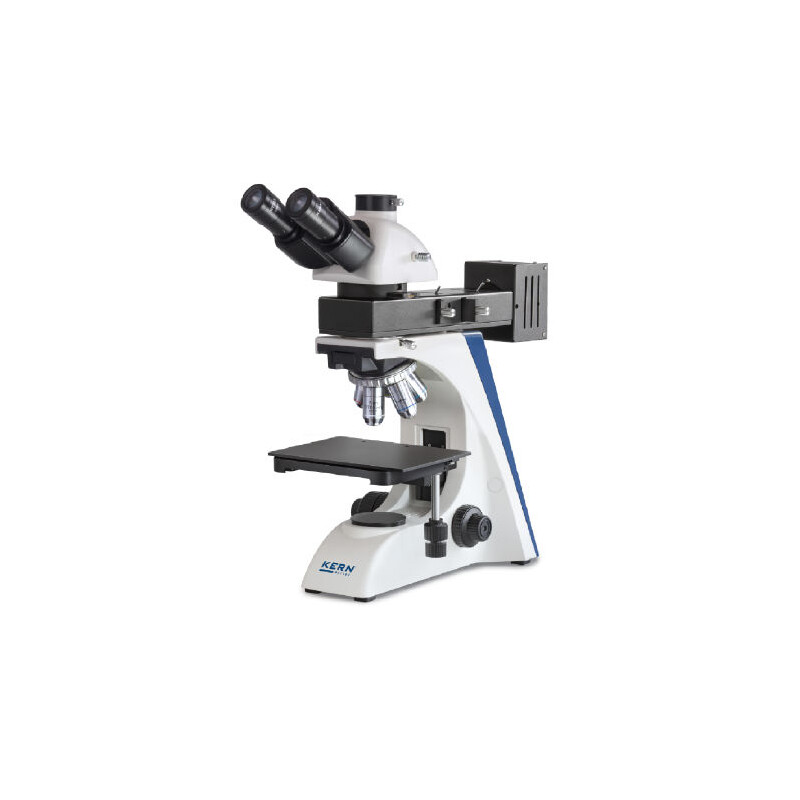

Microscopio OKO 176, MET, POL, trino, piano Inf, 50x-1000x, luce incidente/riflessa, HAL, 50W

• The KERN OKN-1 series are professional, versatile, metallurgical microscopes, which are used in testing metals and analysing surfaces
• You can choose between two incident illumination units: A 50W halogen incident illumination unit or a premium illumination unit with stunning 100W incident illumination for powerful performance
• A height-adjustable 1.25 ABBE condenser which can be centred as well as a field diaphragm are available for the transmitted light variants (KERN OKO series), for complete professional Koehler illumination
• As standard, these microscopes are fitted with infinitely corrected planachromatic lenses
• The KERN OKN incident illumination variant has a closed, mechanical stage, as standard.
• A simple polarising unit (analyser and polariser) is included with delivery
• A large selection of accessories, such as, for example, a Butterfly Tube, eyepieces and further objectives are available for longer working distances
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery

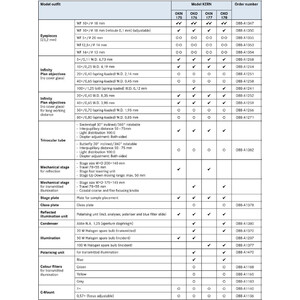

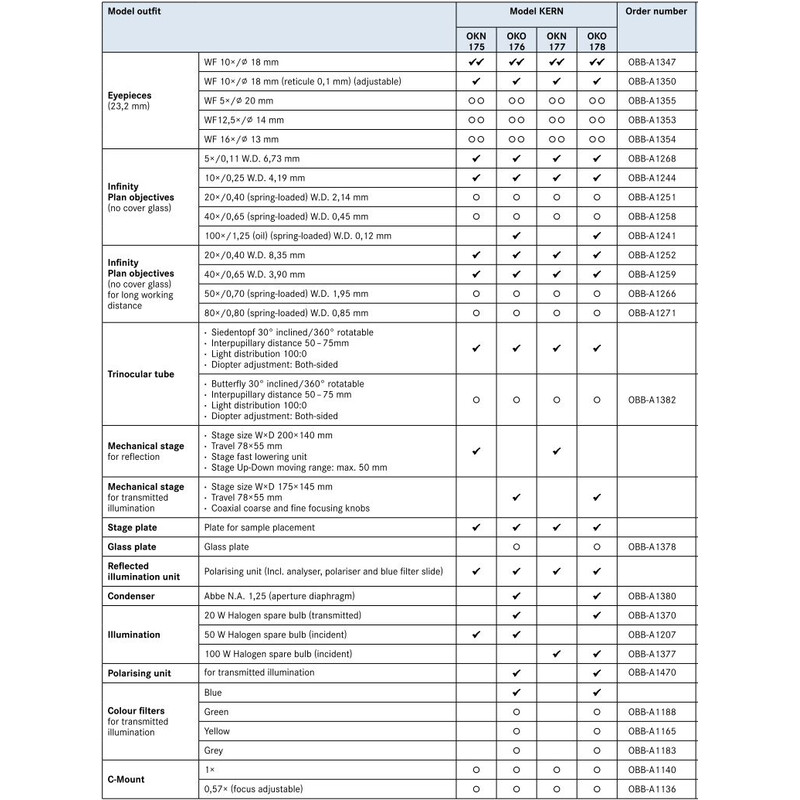

• A C-mount adapter is required to connect a camera. You can select this adapter from the following model outfit list

Scope of application

• Metallurgy, material testing, quality assurance

Applications/Samples

• Opaque and thick samples, workpieces (surfaces, fold lines, coatings)

Technical data

• Infinity optical system
• 5-fold lens revolving unit
• Siedentopf 30° inclined, 360° rotatable
• dioptre compensation both sides
• Overall dimensions W×D×H 550×200×460 mm
• net weight approx. 16,978 kg
