Mikroskope > Aufrechte Mikroskope > Floureszenzmikroskope > Optika > B-510 > Optika Mikroskop B-510FL, trino, FL-HBO, B&G Filter, W-PLAN, IOS, 40x-400x
Artikel-Nr.: 67800

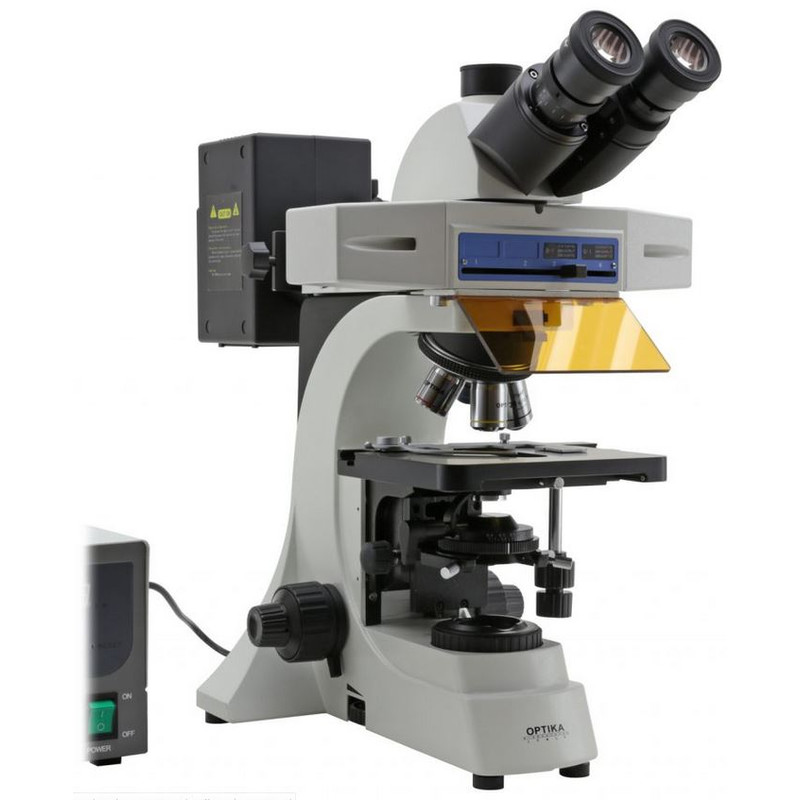

Mikroskop B-510FL, trino, FL-HBO, B&G Filter, W-PLAN, IOS, 40x-400x

UVP: $ 6.700,- Unser Preis:
$ 6.000,- inkl. MwSt, zzgl. Versandkosten
inkl. Bestpreis-Garantie
langfristig
versandfertig in 6-10 Wochen + Laufzeit

Artikelbeschreibung

Mehr über die Serie B-510...

Leider wurde diese Beschreibung bisher nicht ins Deutsche übersetzt, daher finden Sie an dieser Stelle eine englische Artikelbeschreibung.

OPTIKA B-510 fluorescence microscopes are designed to provide premium performance in the observation of the fluorophores with compact and efficient epi-fluorescence attachments, powered by HBO (B-510FL) or LED (B-510LD1 & B-510LD2) and ensuring easy switching of filter cubes. Equipped with the state-of-the-art, exclusive X-LED3 transmitted illumination system, this series offers user-friendly operations, robustness, durability and superb resolution, delivering contrasted and sharp images through the impressive optics and the Köhler diaphragm. Suitable for routine and research applications, depending on the model. The most used and diffused method, worldwide, for research applications with fluorescence, capable of supporting additional and custom filters (as optional), such as V and UV for ANS, Fluorescamine, Catecholamine, AMCA, AutoFluorescence, BAO, BFP, Blu Cascade, DANS, DAPI, Hoechst, Indo-1, SITA, and many others.

Highlights:

Head

  • Rubber cups, retractable protections for a higher comfort
  • Plan wide field eyepieces PL 10x with F.N. of 22 mm, high eyepoint
  • 30° inclined Siedentopf tube, +/- 5 dioptric compensation, on left eyepiece
  • Trinocular port for a camera, with 100/0,50/50 and 0/100 light distribution
  • Four-position slider for filter cubes

Illumination

  • 100 W HBO high pressure mercury lamp, centrable and with 300 hours lifetime
  • High-efficiency X-LED3 as transmitted light

Mechanics

  • Sturdy, stable and wide-dimensioned body
  • Carrying handle
  • Rackless mechanical stage (233 x 147 mm) with double Vernier scale, anti-scratch surface
  • Right-handed, X/Y controls in ergonomic position
  • Coaxial coarse and fine focusing mechanism (graduated,0.002 mm)

Objectives

  • Semi-Apochromatic IOS W-PLAN F (4x, 10x, 20x, 40x) with superior resolution and greater numerical apertures for enhanced contrast. Great to detect fluorescence also when using UV filter

Condenser

  • Swing-out condenser, sliding-in, with 0.2/0.9 N.A. and centering system

Model: B-510FL

Typology: ROUTINE MICROSCOPE

Description: Laboratory microscope for routine and research applications. Dye-cast frame, with high stability and ergonomy, for transmitted light and fluorescence reflected light observation.

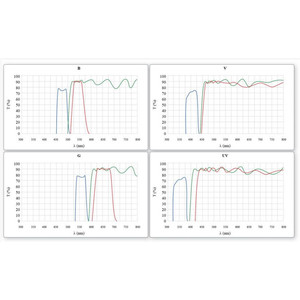

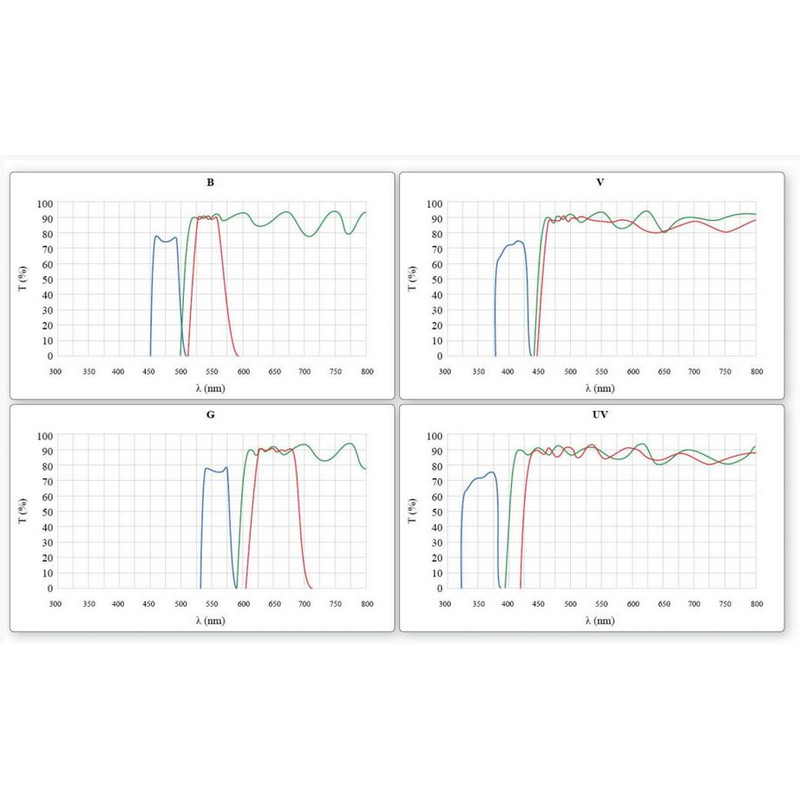

Observation Modes : Brightfield, Fluorescence (Fluorescence B: EX 460-490, DM 505, EM 515LP, Fluorescence G: EX 510-550, DM 570, EM 590LP)

Illumination Transmitted light:

Light source: X-LED3; light intensity control using a knob on left side of the frame. LED power: 3.6 W, comparable to a 50 W halogen bulb. Color temperature: 6,300 K LED lifetime: > 65,000 hours. Power supply: Input 110/240 Vac, 50/60 Hz; Output 6 Vdc 2.5 A Max. required power: 6 W, Köhler illumination system with Field Diaphragm

Epi-fluorescence:

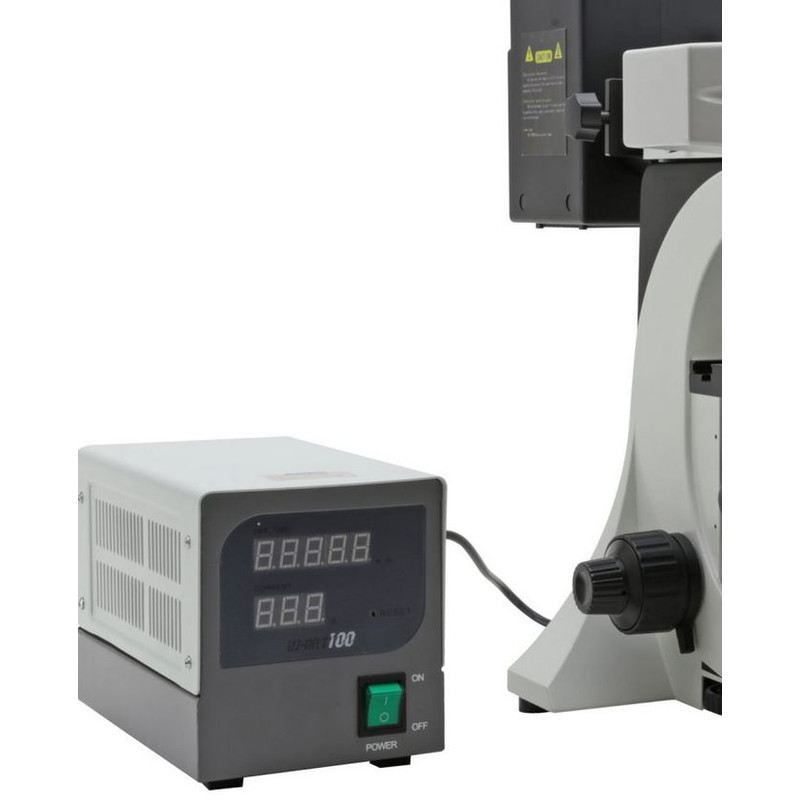

HBO 100 W high pressure mercury bulb. Bulb average lifetime: approx. 400 h. Input voltage: 100/240 Vac, 50/60 Hz. Max. required power: 130 W

Fluorochromes:

  • 4 positions fluorescence filter holder:
  • Excitation B: Acridine Yellow, Acridine Orange, Auramine, DiO, DTAF, FITC, GFP, YFP, etc.
  • Excitation G: DiL; Blu Evans, Feulgen, Rhodamine, Texas Red, TRITC, PI, etc.
  • Excitation UV (OPTIONAL): AMCA, AutoFluorescence, BAO, BFP, Blu Cascade, DANS, DAPI, Hoechst, Indo-1, SITA, etc.
  • Excitation V (OPTIONAL): ANS, Fluorescamine, Catecholamine, etc.

Focusing

  • Coaxial coarse and fine focusing mechanism (graduated, 0.002 mm) with upper stop, to prevent the contact between objective and specimen
  • Flat fine focusing knob on the right side. Adjustable tension of coarse focusing knob

Stage

  • Double layer with mechanical sliding stage, size 233 x 147 mm, X-Y movement range 78 x 54 mm. Belt-drive in X direction. Vernier scale on two axes, accuracy 0.1 mm
  • Nosepiece Quintuple revolving nosepiece, rotation on ball bearings.

Head

  • Trinocular observation head, inclined 30° and rotatable 360°
  • Diopter adjustment on left eyepiece (+- 5 diopter adjustment)
  • Interpupillary adjustment 50 - 75 mm
  • 3 positions photo port: 0/100, 50/50, 100/0 ratios.
  • Eyepieces Plan Extra Wide Field, PL 10x/22, High Eyepoint

Objectives

  • Infinity corrected optical system IOS
  • IOS W-PLAN F 4x/0.13, W.D. 4.7 mm
  • IOS W-PLAN F 10x/0.30, W.D. 4.1 mm
  • IOS W-PLAN F 20x/0.50, W.D. 1.45 mm
  • IOS W-PLAN F 40x/0.75, W.D. 0.5 mm
  • All objectives have anti-fungus treatment

Condenser

  • Swing-out type condenser, sliding-in, N.A. 0.2/0.9, with centering system.

Dimensions

  • HEIGHT: 490 mm
  • WIDTH: 270 mm
  • DEPTH: 550 mm
  • WEIGHT: 14.2 kg

Accessories Instruction manual and dust cover included.

Technische Daten

Optik


Abbildungsmaßstab (-fach)
4-40
Anzahl der Objektive
4
Beleuchtung
Auflicht und Durchlicht
Bildfeldebnung
plan
Farbkorrektur
apochromatisch
Federung
ja
Immersions-Objektiv
ja
Kondensor
Abbe N.A.1.25
Lampentyp
LED
Objektiv 1
4x/0.13, IOS, w-plan, F, w.d.4,7 mm
Objektiv 2
10x/0.30, IOS, w-plan, F, w.d.4,1 mm
Objektiv 3
20x/0.50, IOS, w-plan, F, w.d.1,45 mm
Objektiv 4
40x/0.75, IOS, w-plan, F, w.d.0,5 mm
Okular (-fach)
10x/22 plan (Ø 30mm)
Unendlich korrigiert
ja
Vergrößerung (-fach)
40-400

Leistung


Helligkeitsregelung
ja
Fluoreszenz
ja
Hellfeld
ja
Stromversorgung
EU, IVD
Kontrastverfahren
Fluoreszenz

Mechanik


Bauart
Trinokular
Einblick (°)
30° Schrägeinblick, 360° drehbar
Objekttisch
Kreuztisch (233x147 mm, range 78x54 mm)
Revolver (-fach)
5
Fokussierung
Grob- und Feintrieb (0,002 mm Graduierung, mit Stopfunktion als Objektschutz)

Allgemein


Gewicht (g)
14200
Höhe (mm)
490
Breite (mm)
270
Länge (mm)
550
Serie
B-510

Kontrastverfahren


Fluoreszenz
ja

Fachgebiete


Medizin
ja
Biologie
ja

Anwendungsgebiete


Zentrallabore
ja
Botanik
ja
Mikrobiologie
ja
Zytologie & Pathologie
ja
Meeresbiologie
ja

Sonstiges


Lieferanten Produktnummer
B-510FL

Empfohlenes Zubehör

Mikroskopie-Zubehör > Okulare (3)
no image

Optika Okular M-601, WF15x/16, high eyepoint

$ 89,-*
Mikroskopie-Zubehör > Objektive (31)
Objektiv

Optika Objektiv M-1049, IOS W-PLAN 2x/0.08

$ 121,-*
Mikroskopie-Zubehör > Kameras (13)
Messokular

Optika Messokular M-781, Mikrometrisches Okular EWF, 10x / 22 (XDS, POL, IM)

$ 104,-*
Mikroskopie-Zubehör > Kontrastverfahren (8)
no image

Optika Fluorescence filter set V (filterblock not needed) (only for B-510FL), M-637

$ 1.230,-*
Mikroskopie-Zubehör > Sonstiges (6)

Optika M-635 Heiztisch, digital (nicht nachrüstbar)

$ 520,-*
Mikroskopie-Zubehör > Sonstiges (2)

Kosmos Verlag Das große Kosmos-Buch der Mikroskopie

$ 47,90*
Mikroskopie Bedarf (2)

Bresser Immersionsöl 5ml nD=1.515

$ 10,90*
Grundpreis: $ 2.180,-/L

*Alle Preise inklusive der gesetzlichen Mehrwertsteuer, zzgl. Versandkosten.

Optika Mikroskop B-510FL, trino, FL-HBO, B&G Filter, W-PLAN, IOS, 40x-400x
With fluorescence you can study organic and inorganic samples thanks to primary (auto-fluorescence) or secondary (staining and labelling with fluorochromes) fluorescence.
