More about the series Researcher...
Bresser Researcher LCD microscope with touch screen
(5702100)
This digital microscope is suitable for study, school and professional use. It brings the microcosm to your screen with ease. For a long time, such complete microscopes were only available in the entry-level segment. The optical and mechanical features correspond to the proven Researcher Bino / Trino models. With 4 DIN objectives, Abbe condenser, coaxial fine focus and cross table, the microscope is so well equipped that it leaves nothing to be desired for hobby, school and professional use. The highest magnification with the 60x objective (corresponds to approx. 600x with an optical microscope) also allows the observation of small microorganisms such as microalgae, flagellates and bacteria. Other objective magnifications (e.g. 20x, 100x oil) can be retrofitted, and the Researcher LCD is also compatible with our plan achromatic objectives for a tube length of 160 mm.

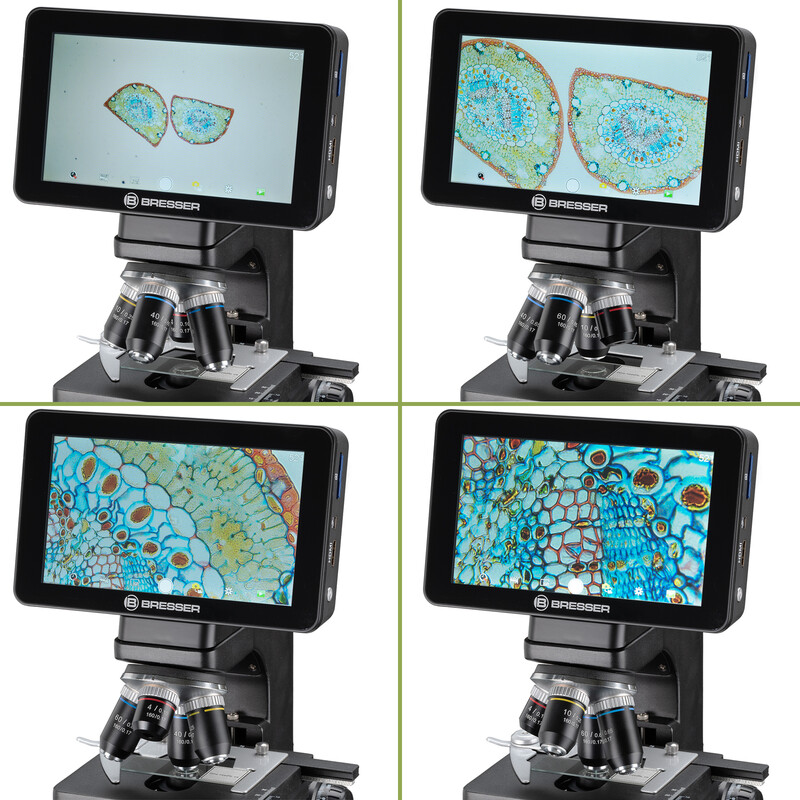

The integrated, modern Sony IMX206 camera sensor with 16MP brings the microscope image to the monitor in brilliant colours and with good contrast. Operation is via touchscreen. Images in 16MP resolution and Full HD videos can be saved directly to an SD card. The screen also features an HDMI connection, which can be used to transfer the live image directly to a monitor, TV, projector or smartboard in Full HD quality. This allows the results to be presented to a large audience, e.g. during a lecture or in class.
FEATURES:
- Digital microscope with integrated touch screen
- 4 achromatic DIN lenses (RMS connection thread), working distance 45 mm
- Objective magnifications 4x, 10x, 40x, 60x (40x and 60x with specimen protection)
- Abbe condenser with iris diaphragm, fully adjustable and height-adjustable
- High-contrast screen with natural colours, 1024x600px
- Integrated Sony IMX206 camera sensor with 16MP
- HDMI connection for connection to an external monitor
- SD card slot (max. 32GB, not included)
- USB port (for transferring data to SD card)
SCOPE OF DELIVERY:
- Researcher LCD digital microscope (LCD display, microscope stand, rotating lens turret with 4 holders, microscope table (cross table with vernier scale), condenser with condenser diaphragm, specimen holder, coarse focusing, fine focusing, LED lighting with brightness control)
- 4 lenses: 4x, 10x, 40x, 60x (40x and 60x with specimen protection)

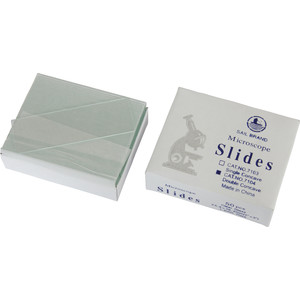

- Set with 5 prepared slides and 5 empty slides
- Power pack (EU) 5V 2A
- HDMI cable
- USB cable for transferring stored data to a PC
- dust cover
