Stemi 305
Your all-in-one instrument. With integrated lighting and documentation.
Stemi 305 is your compact Greenough stereo microscope with 5:1 zoom for biology education, laboratories and industrial production environments. See your samples as they are: three-dimensional and with sharp contrasts, without sample preparation. Benefit from an easy-to-use microscope that includes everything: long-life LED lighting for reflected and transmitted light, and extensive documentation options. Choose between the conventional phototube for access to all ZEISS microscope cameras and the integrated 1.2 megapixel WiFi camera, which allows you to connect multiple microscopes and share your images via WiFi.
More about the Stemi 305 microscope series...
Stemi 305, EDU, bino, Greenough, w.d.110mm, 10x/23, 0.8x -4.0x
ZEISS item number: 435063-9010-100
Specification:
Highlights
- Binocular tube

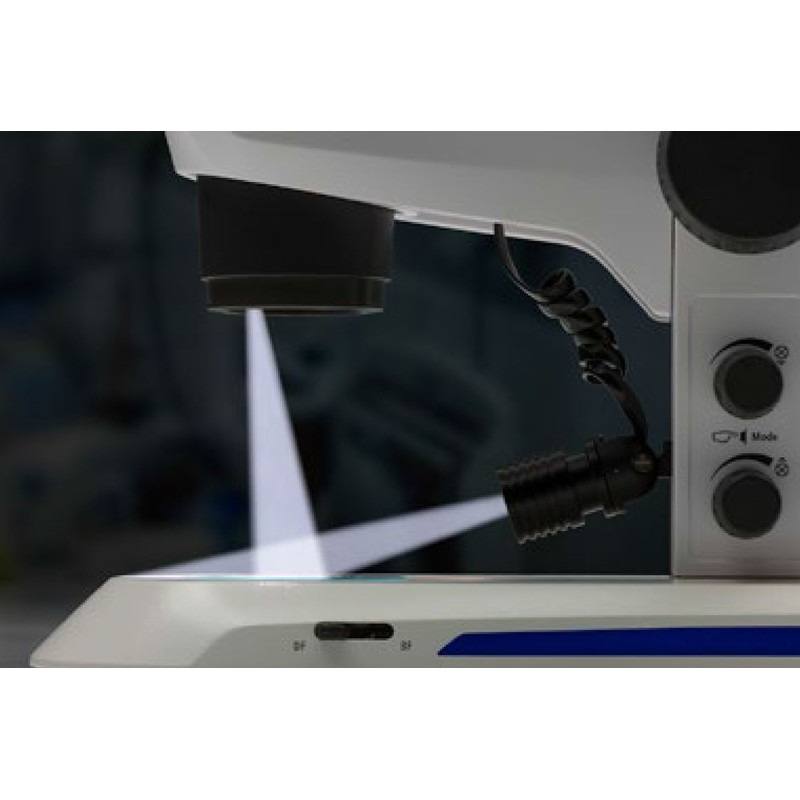

- Integrated vertical illumination
- Flat light transmission base for bright and dark field illumination
- Optional: Polarisation accessory for spot and transmitted light
- For a digital classroom environment, Stemi 305 cam with tripod K EDU and Spot K Led is your best choice.
Stemi 305 EDU microscope body
- Greenough system with 11° stereo angle
- Manual, double-sided zoom 5:1 (0.8x...4.0x)
- Fixed zoom lock positions 0.8x-1x-2x-3x-4x
- Free working distance without attachment system 110 mm
- Viewing angle 45° with adjustable eye relief 55 to 75 mm
- Eyepiece mount 30 mm with maximum field of view 23 mm
- Mounting D=76 mm for Stemi carrier/carrier S
- Interface D=66 mm for lights
- M52 thread for attachment optics or polariser
- LED lighting (IVI) integrated into the optics at an almost vertical angle for tripods K EDU/LAB/MAT or controller K LED
- 2x eyepiece 10x23 Br. foc.
- RJ12 spiral cable
Tripod K EDU
- Stand base W190xD310xH35 mm
- Working surface W160xD195 mm
- Interfaces d=84 mm for tables and d=45 mm for DL polariser
- Column 250 mm with drive and handle, stroke range 145 mm
- Stemi holder d=76 mm, load capacity 5 kg, adjustable friction
- Integrated LED transmitted light bright field/dark field, switchable
- 2x socket for IVI and K LED light
- Separate AL/DL controls for on/off/dimming
- Built-in power supply unit 12V DC 24W/100...240V AC/50...60Hz
- Glass plate D=84x5 mm
- Country-specific power cord EURO C7
- dust cover
Stemi 305 cam
Stemi 305 cam is your compact and easy-to-use solution for educational tasks. The fast, color Wi-Fi camera and WLAN router are already integrated into the microscope body. In “Access point” mode each Stemi 305 cam creates its own WLAN: up to six iPads can connect directly to the integrated camera and display its live image using the iPad imaging app Labscope. To create a high quality digital classroom, enable “Add to existing WLAN” mode and connect several Stemi 305 cams to the same digital network. Your students can then share their microscope images and collaborate on projects with colleagues and class - mates. Let them learn the fun way.
