SZR Series
The SZR stereo microscopes are particularly suitable for laboratory and research applications. Thanks to their features and optical and mechanical qualities, they are first-class research instruments. They are available in fourteen different versions to meet the various needs of users. The main feature of this series is the binocular and trinocular heads with zoom optics. Numerous tripods and bases can be combined with the heads. A wide range of accessories further expands the possible uses of these microscopes.
Lenses
Parfocal achromatic zoom lenses, from 0.67x to 4.5x with continuously adjustable magnification (max. 45x with standard configuration, can reach 180x with accessories).
The instruments have a white/black disc and clamps (except for instruments with overhanging stands). Transmitted light microscopes have a frosted glass plate.
Tripod

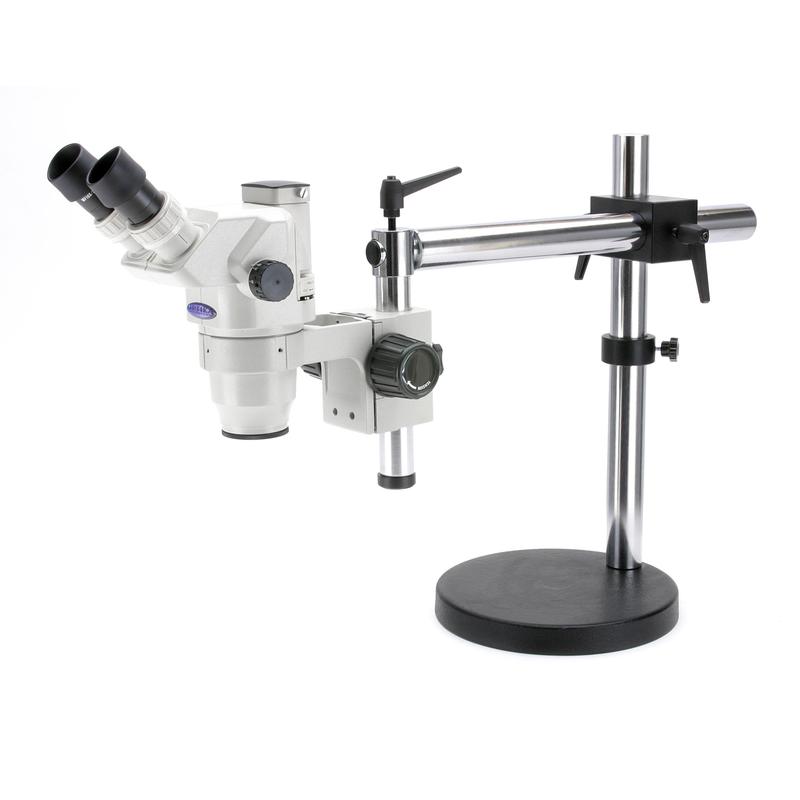

There are five different versions: simple tripod without transmitted light; simple tripod with base for reflected and transmitted light; with integrated lighting system; with overhanging stand – simple or rotatable – for viewing large objects.
Technical data for the SZR series of microscopes:
- Binocular/trinocular heads, 360° rotatable, 45° inclined view
- 12V/15W halogen lamps with adjustable brightness
- Eye relief adjustable between 52 and 75 mm
- Diopter adjustment on both eyepieces
- EWF10x/22mm eyepieces, high point
- Working distance 110 mm
- Focusing controlled by rack and pinion drive, knobs on both sides
