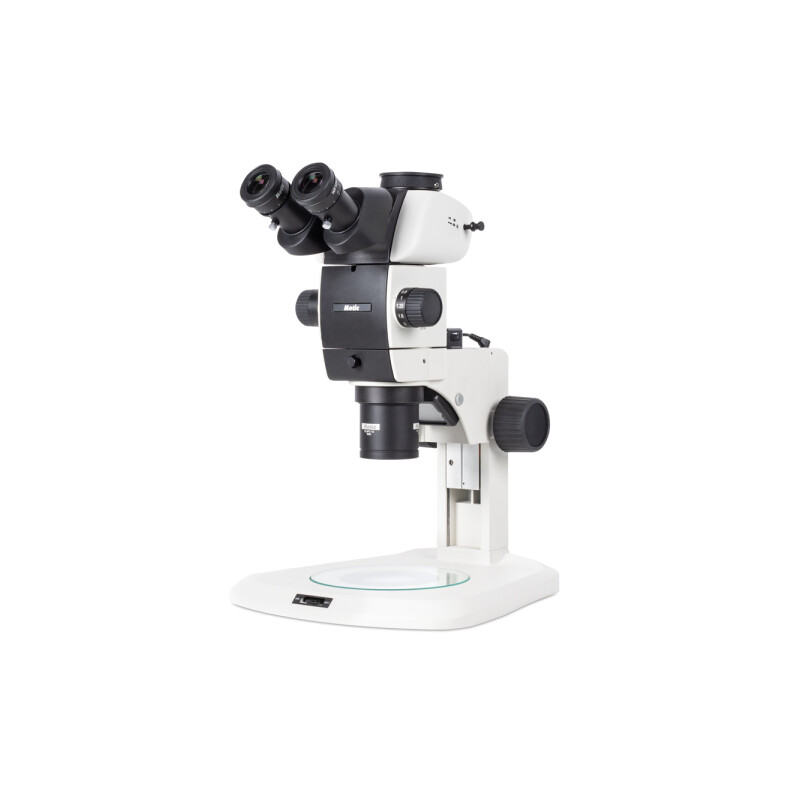

Motic SM7TR-TLED APO1X – Trinocular apochromatic stereo microscope with LED lighting
The SM7TR-TLED APO1X is the most powerful model in the SM7 series: it combines a high-quality plan apochromatic 1X lens with integrated LED lighting and a trinocular connection for camera connection. The working distance of 81 mm, minimised aberrations and true-to-life colour reproduction make this microscope the ideal choice for demanding tasks in research, electronics inspection or material analysis.
The integrated LED technology (3W, separately adjustable) ensures high-contrast results – regardless of whether transparent or opaque samples are being examined.
Scope of delivery:

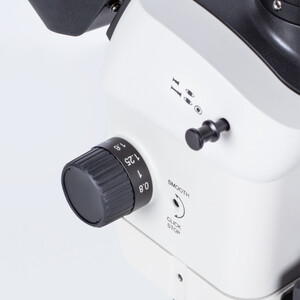

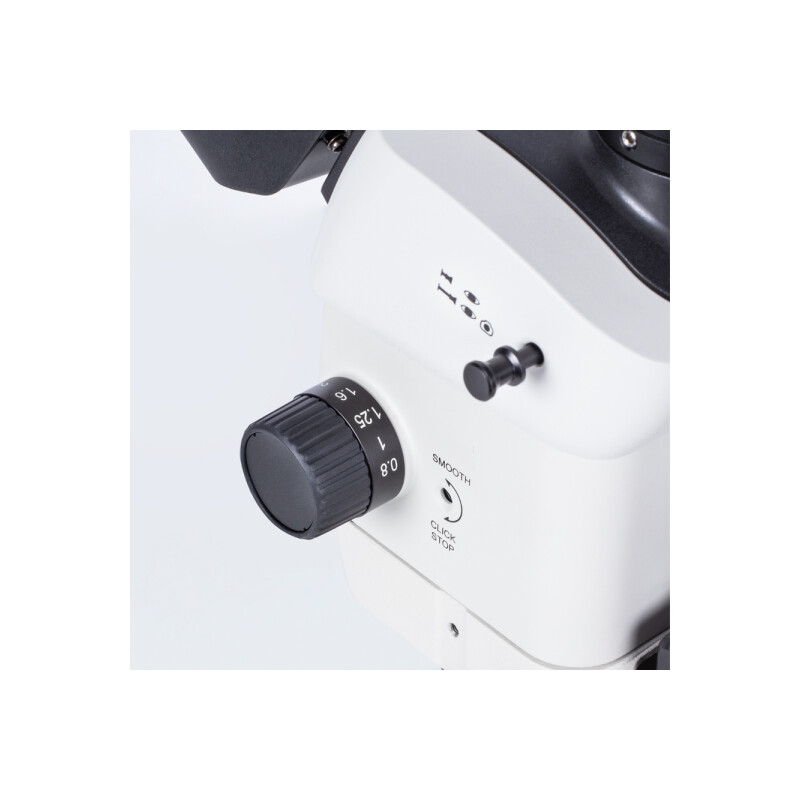

- SM7 microscope body with 7:1 zoom
- Trinocular tube with 2-step light split (100:0/20:80)

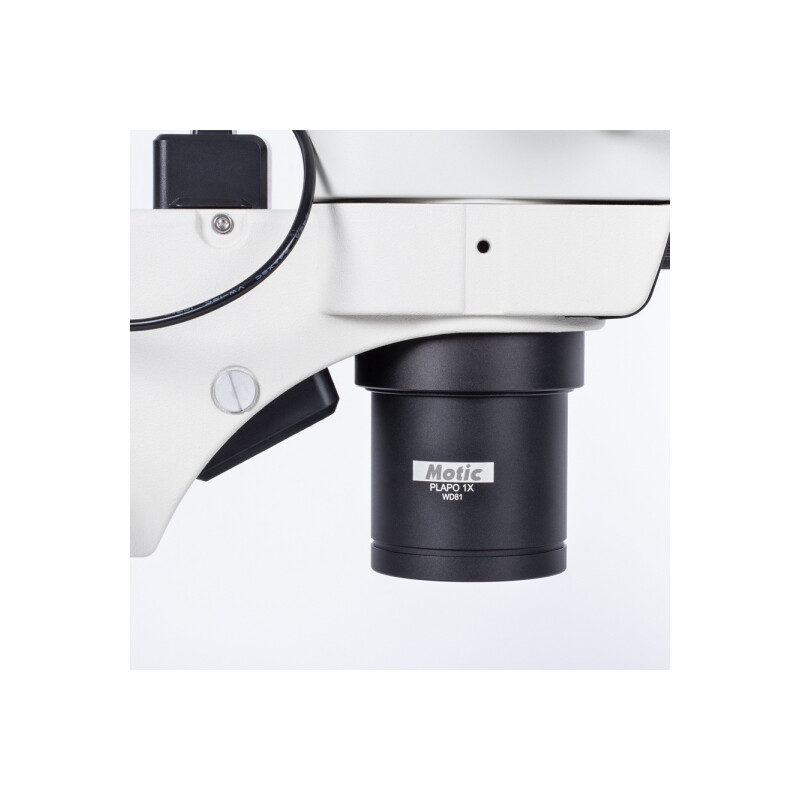

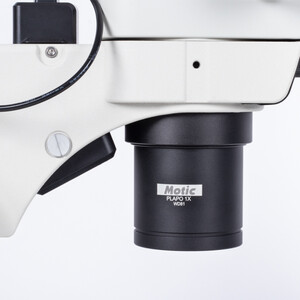

- Plan apochromatic 1X objective (81 mm WD)
- WF10X/22 eyepieces with diopter adjustment
- Tripod with integrated LED reflected/transmitted light illumination
- Glass plate Ø160 mm
- Dust cover
- Mains adapter
