Product no.: 86437

SM7TR-TLED A1X stereo zoom microscope, trino, 8-56X, 90 mm working distance, 7:1

Name: Motic SM7TR-TLED A1X stereo zoom microscope, trino, 8-56X, 90 mm working distance, 7:1
Brand: Motic
Price: 4180 USD

$ 4,180.00 incl. VAT plus shipping costs

too expensive?

short-term
ready for shipping in 1-2 weeks + lead time

add to cart

Product questions?

advice for Microscopy

This product is available in the following variants:
	Colour correction	Price
	achromatic	$ 4,180.00
	apochromatic	$ 4,730.00

Product description

More about the series SM7...

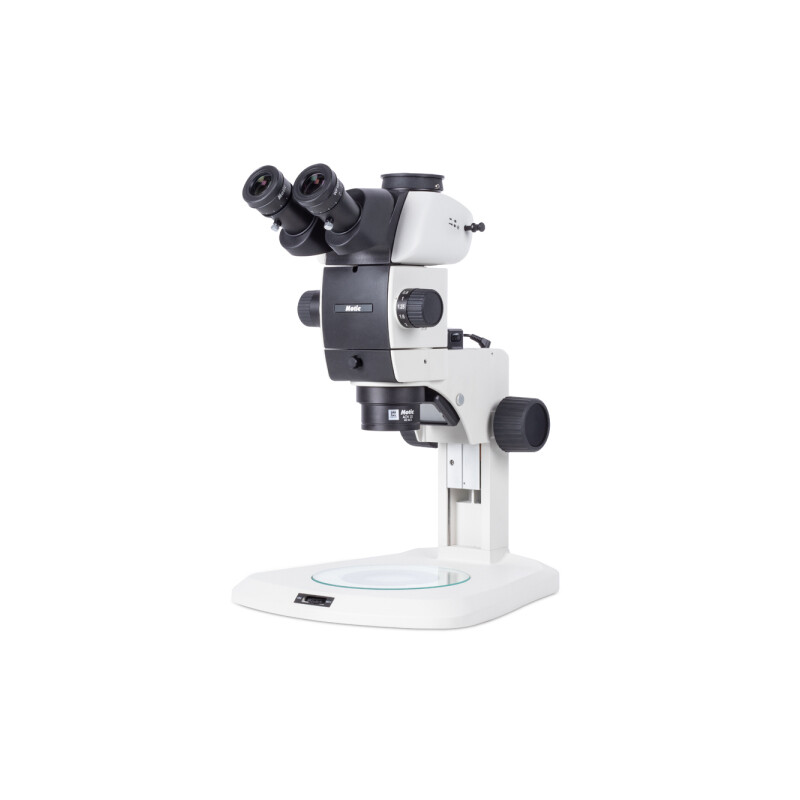

Motic SM7TR-TLED A1X – Trinocular stereo microscope with LED lighting

The SM7TR-TLED A1X is a high-quality trinocular stereo microscope with integrated LED reflected and transmitted light illumination, ideal for a wide range of applications in industry, education and quality control. The 1X plan achromatic objective offers a comfortable working distance of 90 mm and razor-sharp images with natural colour reproduction.

The 3W LEDs for reflected and transmitted light can be controlled separately and ensure optimum illumination – whether for transparent or opaque samples. Perfect for long working sessions thanks to its flat stand design and ergonomic operation.

Scope of delivery:

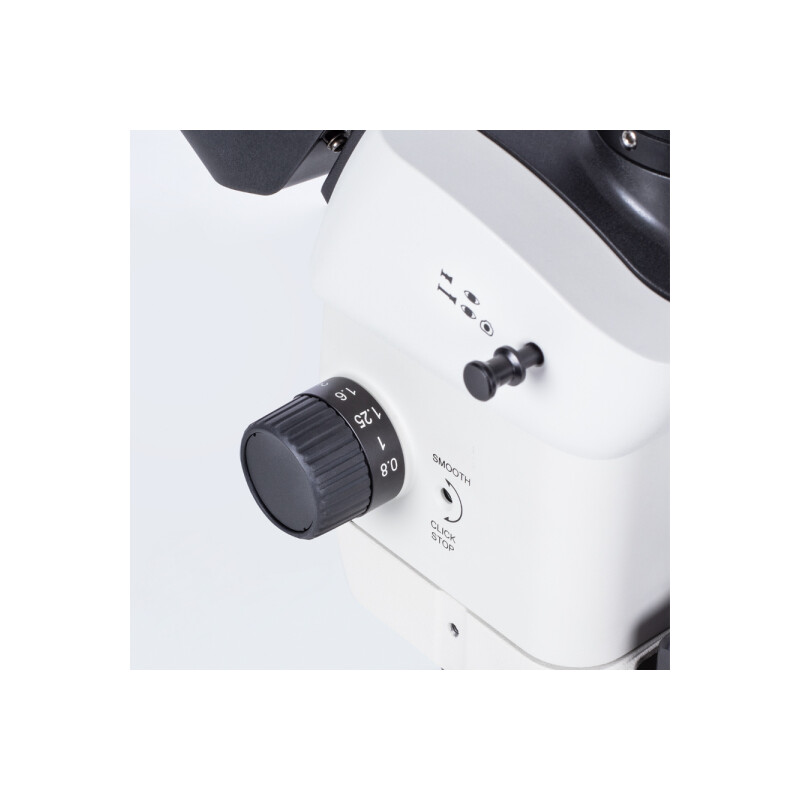

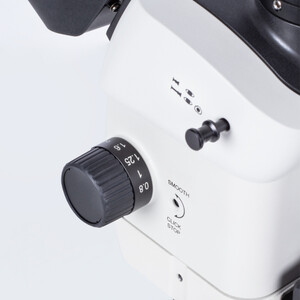

SM7 microscope body with 7:1 zoom system
Trinocular tube with camera split (100:0/20:80)
Plan achromatic 1X objective (90 mm WD)

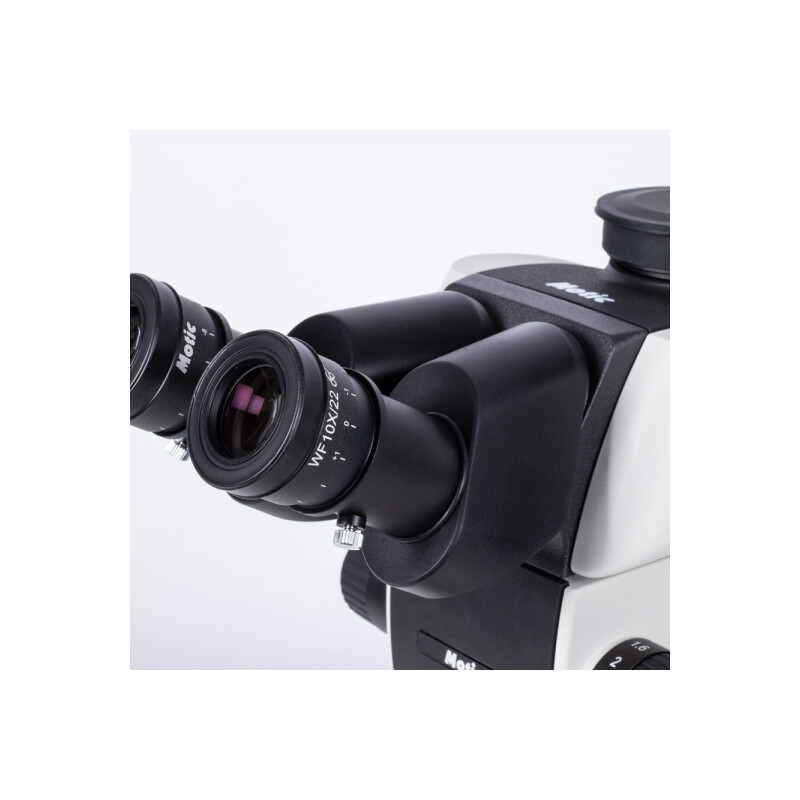

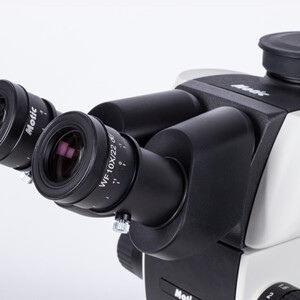

WF10X/22 wide field eyepieces
Fixed stand with integrated 3W LED reflected/transmitted light illumination
Glass slide holder plate Ø160 mm
Dust cover
Power pack (110–240V)

Specifications

Optics

Magnification

8-56

Eyepiece

10 (WF 10/22)

Lighting

Incident light and transmitted light

Lamp type

LED (3W adjustable)

Power supply

100-240V, VDE plug (CE) mains adaptor

Optical system

CMO

Colour correction

achromatic

Field curvature

Plan

Capacity

Type of build

Trinocular

Image scale

0.8-5.6

Arms

254mm

Incident light

LED 3W

Transmitted light

LED 3W

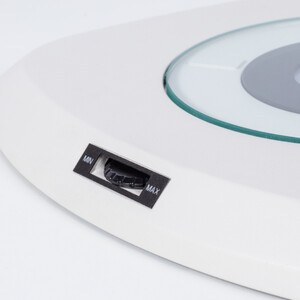

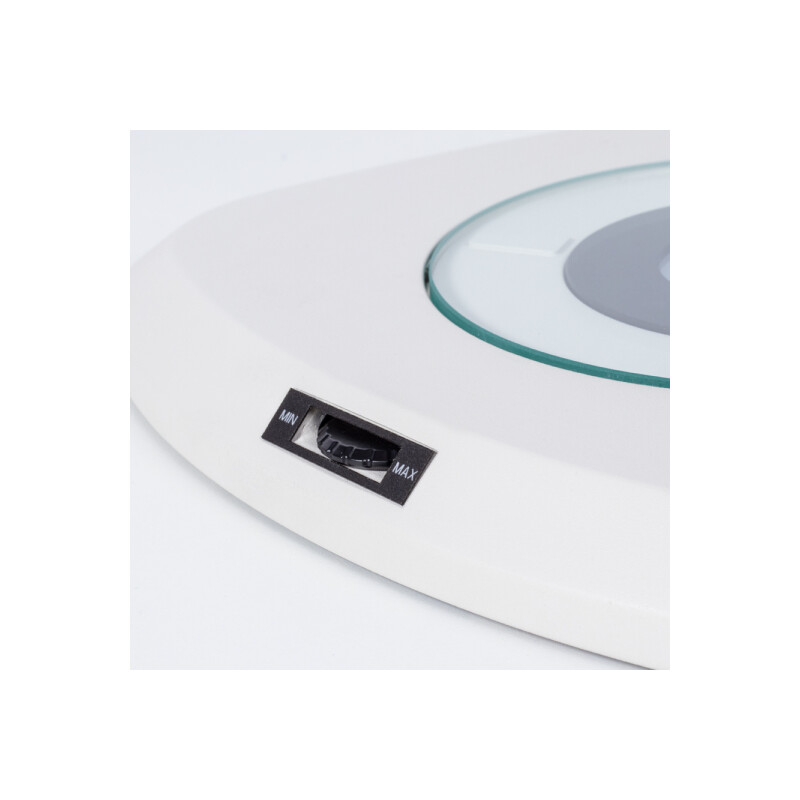

Brightness control

yes

Mechanics

Type of build

Trinocular

Focusing

Coarse movement (120mm)

Viewing posture (°)

30 (C-HBHB camera, 1080p, 2 MP CMOS, HDMI, multi-plugCost-effective, entry-level HD camera with 1080p, 2 MP resolution, CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card. Allows you to easily take measurements of samples or parts of them with a series of tools via software such as lines, angles and many more.It also supports excel storage. Connection into the eyepiece tube or to the trinocular tube of any microscope brand via dedicated adapter (to be purchased separately).Wireless mouse, SD card and built-in software included.Highlights<ul><li>Simple operation, built-in software</li><li>Universal connection to any microscope brand</li><li>Crisp Full HD images</li><li>High frame rate</li><li>Reliable color fidelity</li><li>C-mount connection (via dedicated adapter, on any microscope)</li><li>HDMI cable, mouse and SD card included</li></ul>)

Specimen stage
