SM7TR-P A1X stereo zoom microscope, trino, 8-56X, wd 90mm, 7:1

Name: Motic SM7TR-P A1X stereo zoom microscope, trino, 8-56X, wd 90mm, 7:1
Brand: Motic
Price: 3440 USD

$ 3,440.00 incl. VAT plus shipping costs

too expensive?

short-term
ready for shipping in 1-2 weeks + lead time

add to cart

Product questions?

advice for Microscopy

This product is available in the following variants:
	Colour correction	Price
	achromatic	$ 3,440.00
	apochromatic	$ 4,000.00

Product description

More about the series SM7...

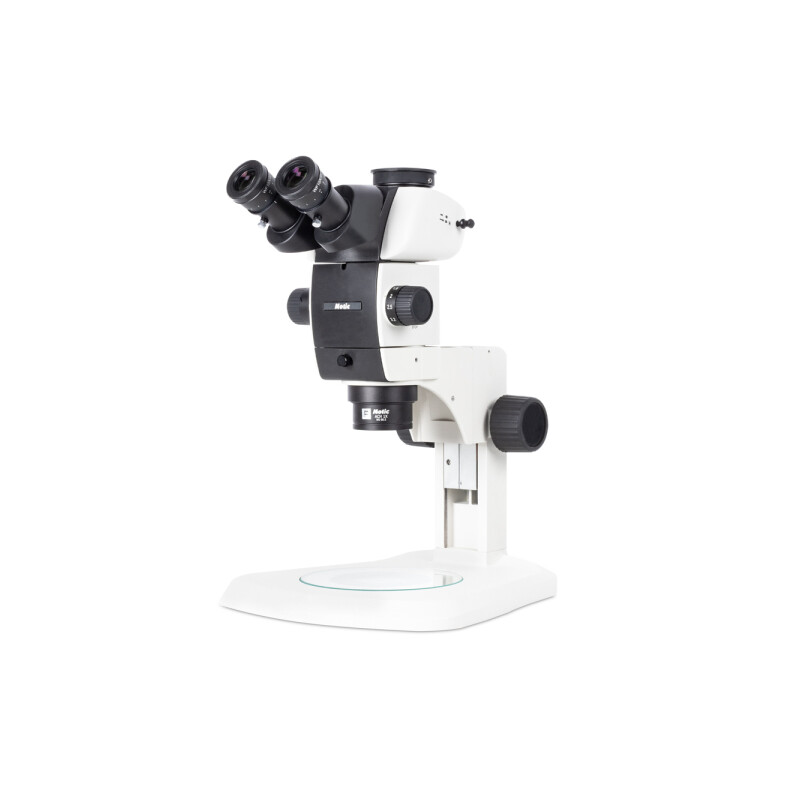

Motic SM7TR-P A1X – Trinocular stereo microscope for opaque samples (without lighting)

The Motic SM7TR-P A1X is a professional trinocular stereo microscope with a high-quality 1X plan achromatic lens and a generous working distance of 90 mm. Thanks to its clear Galilean-based optical design, it delivers colour-fidelity, low-distortion images in high resolution – ideal for the qualitative inspection of opaque samples in laboratories, workshops and electronics manufacturing.

Without integrated lighting, this model offers maximum flexibility when using external light sources, e.g. ring lights or cold light sources. This allows the microscope to be individually adapted to different working environments.

Scope of delivery:

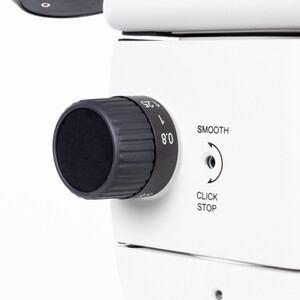

SM7 microscope body with 7:1 zoom (0.8–5.6X)
Trinocular tube (100:0/20:80 split)

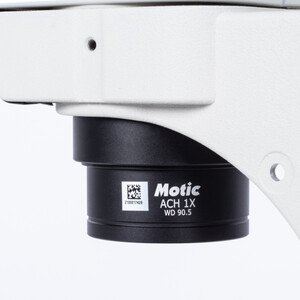

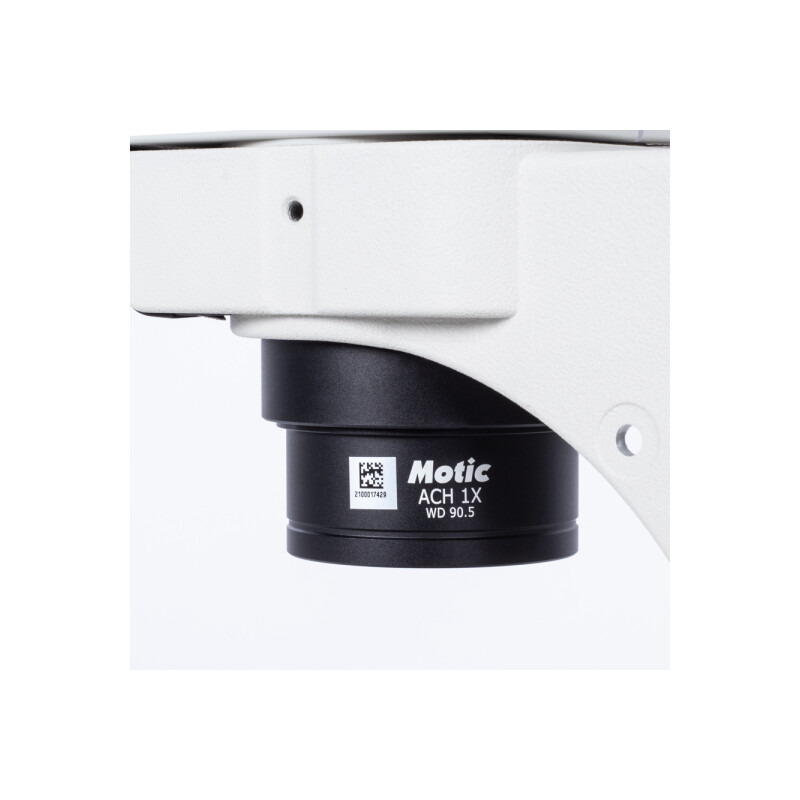

Plan achromatic 1X objective (90 mm working distance)

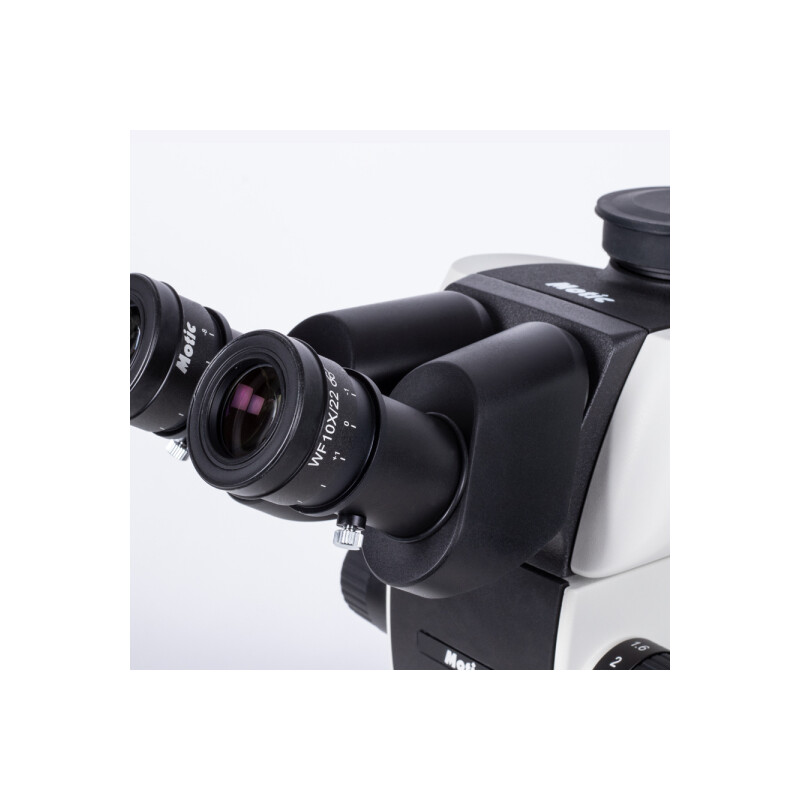

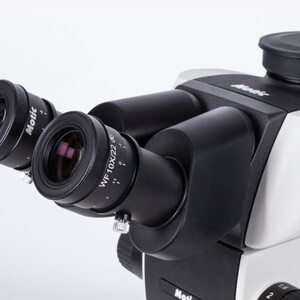

WF10X/22 wide-field eyepieces with diopter adjustment
Standard stand (without lighting)
Black and white slide holder plate Ø160 mm
Dust cover

Specifications

Optics

Magnification

8x-56x (C-HBHB camera, 1080p, 2 MP CMOS, HDMI, multi-plugCost-effective, entry-level HD camera with 1080p, 2 MP resolution, CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card. Allows you to easily take measurements of samples or parts of them with a series of tools via software such as lines, angles and many more.It also supports excel storage. Connection into the eyepiece tube or to the trinocular tube of any microscope brand via dedicated adapter (to be purchased separately).Wireless mouse, SD card and built-in software included.Highlights<ul><li>Simple operation, built-in software</li><li>Universal connection to any microscope brand</li><li>Crisp Full HD images</li><li>High frame rate</li><li>Reliable color fidelity</li><li>C-mount connection (via dedicated adapter, on any microscope)</li><li>HDMI cable, mouse and SD card included</li></ul>)

Eyepiece

10 (WF 10/22)

Lighting

none

Optical system

CMO

Colour correction

achromatic

Field curvature

Plan

Capacity

Type of build

Trinocular

Image scale

0.8-5.6

Arms

254mm

Mechanics

Type of build

Trinocular

Focusing

Coarse movement (120mm)

Viewing posture (°)

30 (C-HBHB camera, 1080p, 2 MP CMOS, HDMI, multi-plugCost-effective, entry-level HD camera with 1080p, 2 MP resolution, CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card. Allows you to easily take measurements of samples or parts of them with a series of tools via software such as lines, angles and many more.It also supports excel storage. Connection into the eyepiece tube or to the trinocular tube of any microscope brand via dedicated adapter (to be purchased separately).Wireless mouse, SD card and built-in software included.Highlights<ul><li>Simple operation, built-in software</li><li>Universal connection to any microscope brand</li><li>Crisp Full HD images</li><li>High frame rate</li><li>Reliable color fidelity</li><li>C-mount connection (via dedicated adapter, on any microscope)</li><li>HDMI cable, mouse and SD card included</li></ul>)

Specimen stage
