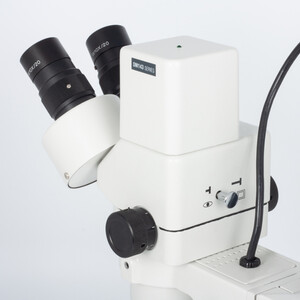

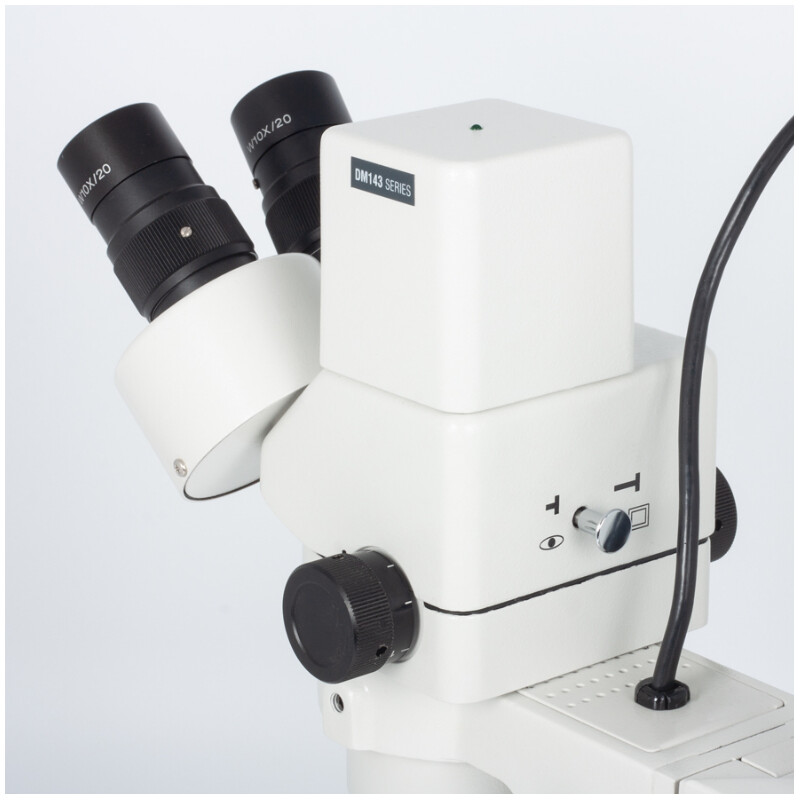

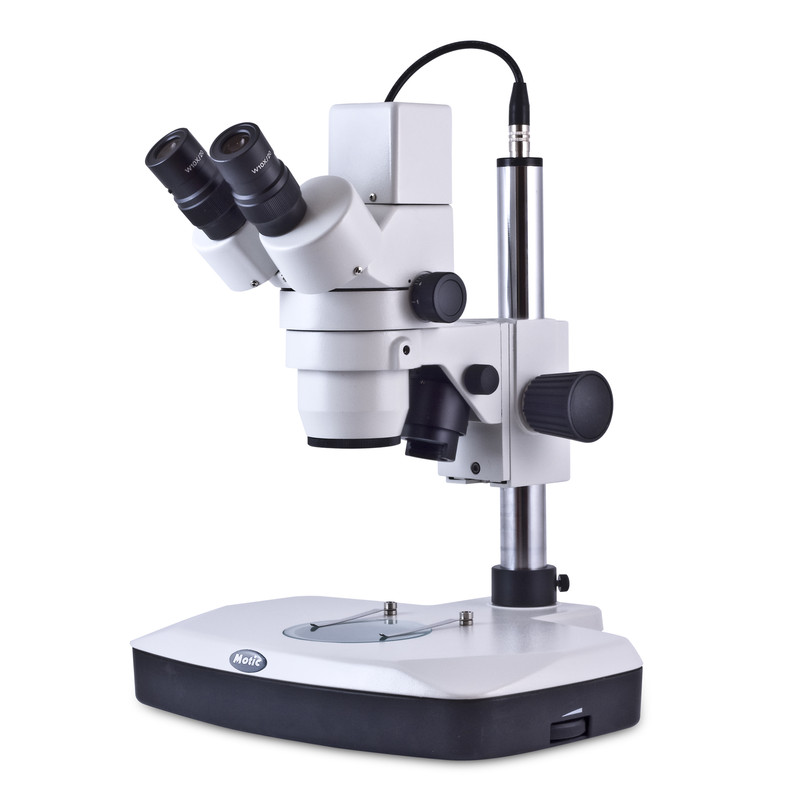

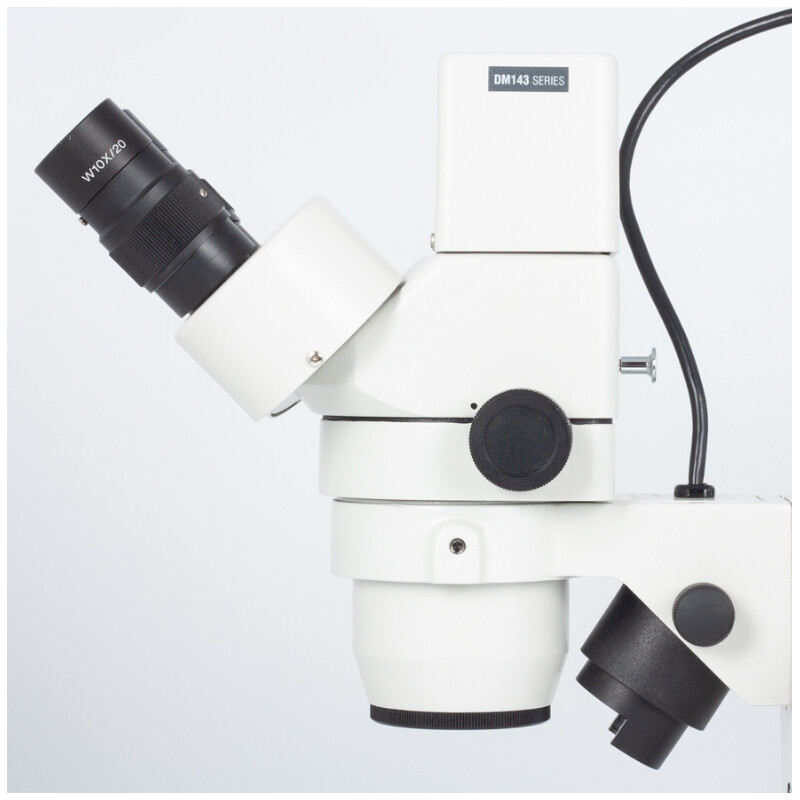

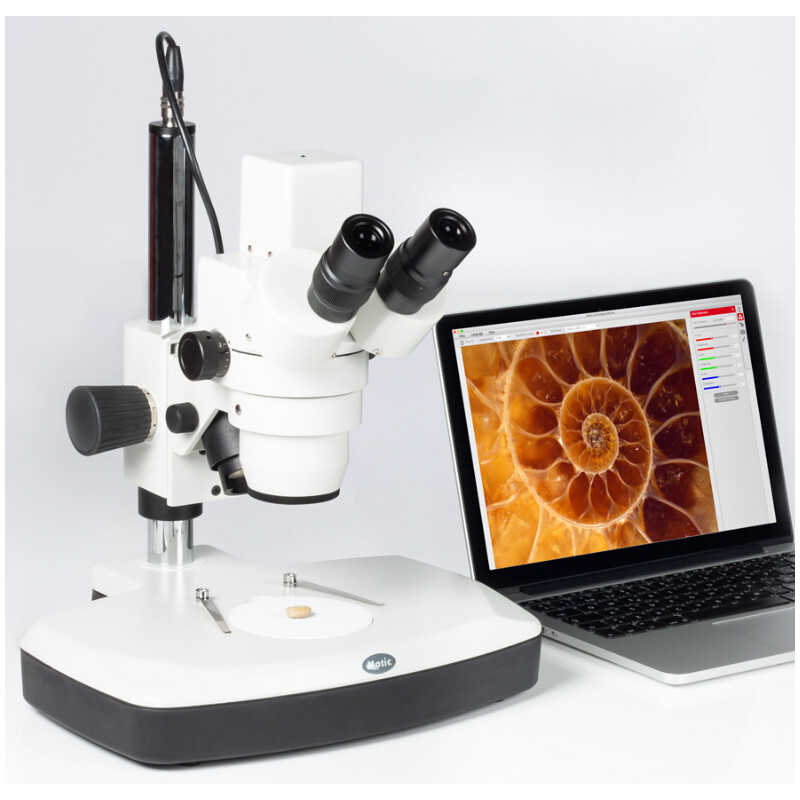

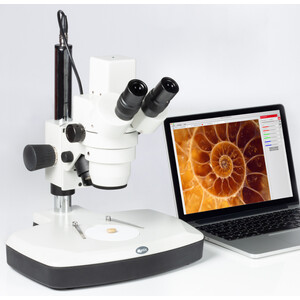

DM-143-FBGG
A simple stereo microscope for teaching in schools and universities. The Greenough optical system delivers high-quality images with a parfocal 4:1 zoom and a standard magnification of 10x-40x. The integrated 5MP USB camera with the included Motic Images 3.0 software is the basis of an educational documentation station for pupils and students.
Specification DM-143-FBGG
Optical system: Greenough
Observation tube: Binocular head with integrated digital camera
Sensor type: CMOS
Sensor format: 1/2"
Number of pixels: 5MP
Live image via USB: 2592x1944 pixels
Data transfer: USB 2.0
Viewing angle: 45º tilted
Pupillary distance: 50-75 mm
Diopter adjustment: On both eyepiece mounts, +/- 5 diopters
Eyepieces: Wide field WF10X/20mm
Lens concept: 1:4 zoom
Lenses: 1X - 4X
Working distance: 80 mm
Stand type: Stand column with transmitted light illumination
Headmount: For Ø32mm column and Ø74mm head, with reflected light illumination
Focusing mechanism: Coarse focus with smoothness adjustment
Focusing travel: 49 mm
Incident light illumination: Halogen 12V/10W with intensity control
Transmitted light illumination: Halogen 12V/10W with intensity control
Software: Motic Images Plus 3.0 for Windows, OSX and Linux
Transformer: External
Power supply: 100-240V (CE)
Dimensions LxWxH: 329x277x335mm
Tripod base: 329 x 277 mm
Tripod column / arm: Height 295 mm / Ø32 mm
Net weight: 7.2 kg
Scope of delivery: Dust cover, black and white table insert, frosted glass insert, blue filter, calibration scale, USB cable, Motic Images Plus 3.0 for PC & Mac.
