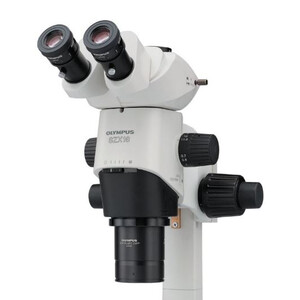

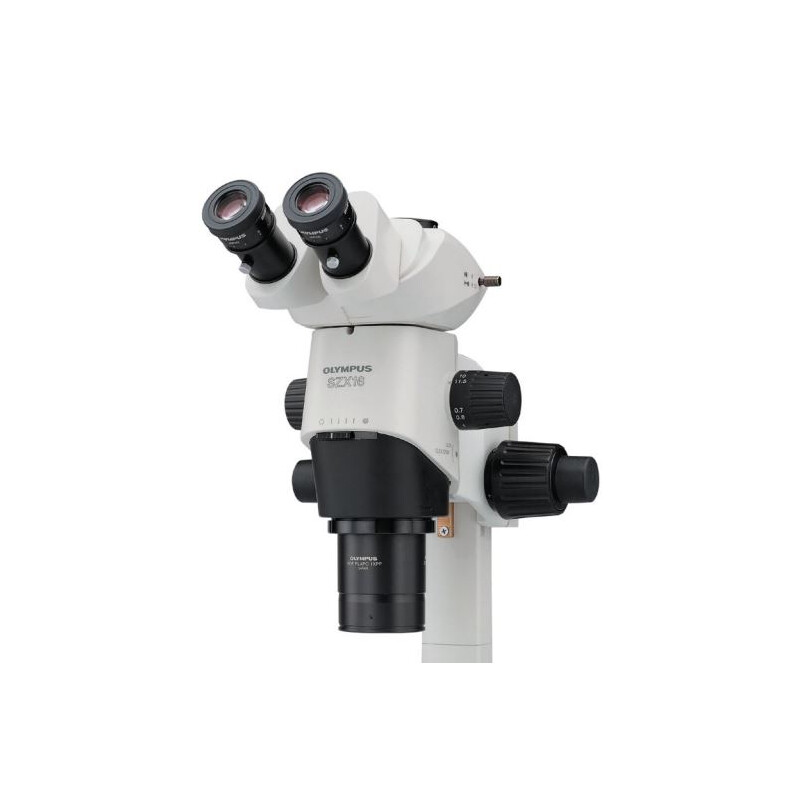

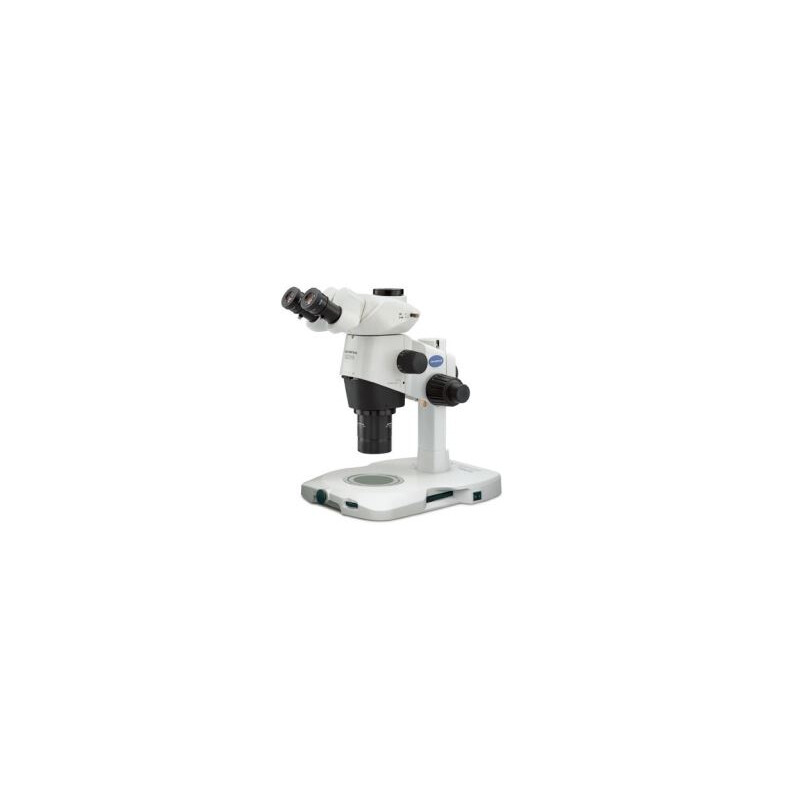

SZX16 stereo microscope
The SZX16 stereo microscope has been developed for advanced research, materials science, quality control and failure analysis. It features ultra-high resolution (0.3 NA), an extremely large zoom range (16.4:1) and versatile imaging options with dark field, fluorescence and polarisation. With these comprehensive features, you can image entire samples, such as organisms or components, down to fine microscopic details, such as individual cell structures or microdefects. Equip your laboratory with the optical clarity needed to see, document and identify even the smallest details.
Master the challenges of imaging in life sciences and materials science
Designed for advanced research, materials science, quality control and failure analysis, the SZX16 stereo microscope offers the following features:
- Excellent resolution of 900 line pairs per mm (0.3 NA)
- Dark field, fluorescence and polarisation functions
- Ultra-wide zoom ratio of 16.4:1
- Full zoom range from 0.7x to 11.5x with our double revolver
- Ergonomic solutions for comfortable observation
With these comprehensive features, you can perform demanding applications – from imaging entire specimens, such as organisms or components, to fine microscopic structures, such as individual cell structures or microdefects. Equip your laboratory with the optical clarity you need to see, document and identify even the smallest details.
Modern stereo microscope with large zoom factor
Outstanding optical performance
The optics of the SZX16 (observation tubes, zoom body and lenses) are fully apochromatic to minimise chromatic aberrations across the entire magnification range. Super depth of field (SDF) lenses deliver clear, high-contrast images of virtually any sample – from micrometre-sized defects to cell component structures.

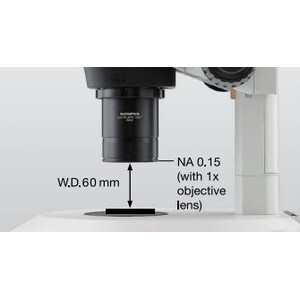

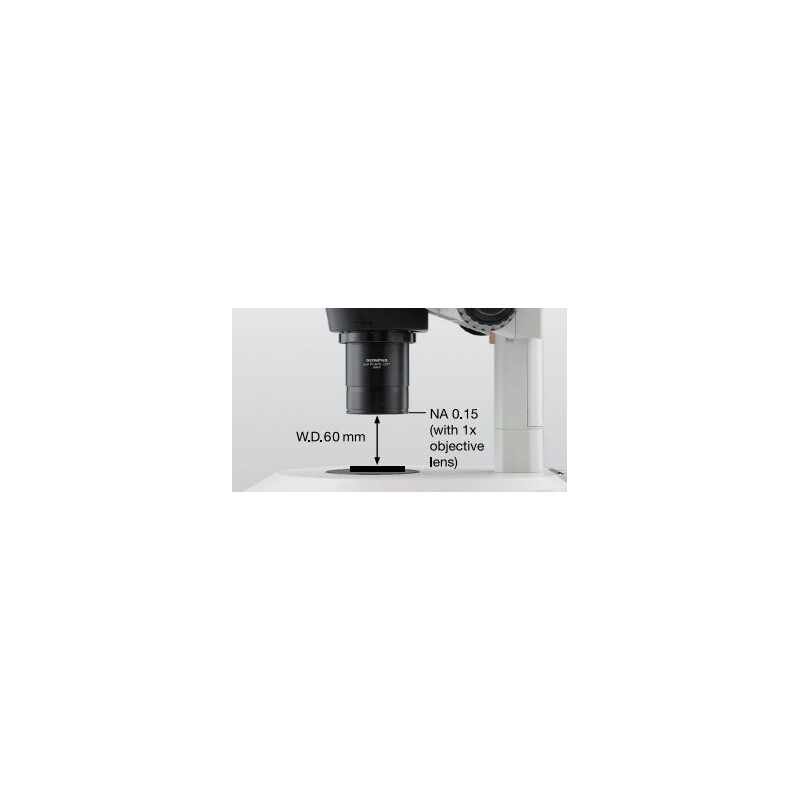

The maximum NA of 0.3 produces a resolution of 900 line pairs per mm, making fine microscopic cell and cell component structures clearly visible. Excellent resolution and unrivalled magnification make work more efficient and precise, providing much more information about the samples.
This higher resolution also means that the stereo microscope can distinguish smaller, more closely spaced features in components, which is essential for high-precision fault analysis and quality control. Detect microcracks or fractures, scratches or contamination on the surface, or manufacturing defects that are not visible at lower resolutions.
High zoom factor of 16.4:1
The SZX16 offers an ultra-high zoom ratio of 16.4:1, which provides a magnification of 7x-115x with a 1x objective and up to 230x with a 2x objective.
This large zoom range makes the model ideal for a wide variety of research analysis applications that require both low-magnification macro overviews for dissection and sample manipulation, as well as sharp, highly magnified images of microstructures.
In error analysis and quality control testing, this ultra-wide zoom range is ideal for inspecting large components or assemblies, right down to defects in the micrometer range, such as cracks, scratches or dirt particles.
Variable system with many additional optional extensions:
- Objective turret
- Ergonomic observation tube
- Extendable intermediate tube
- Versatile contrast and observation methods
- Fluorescence microscopy
- Digital imaging and documentation

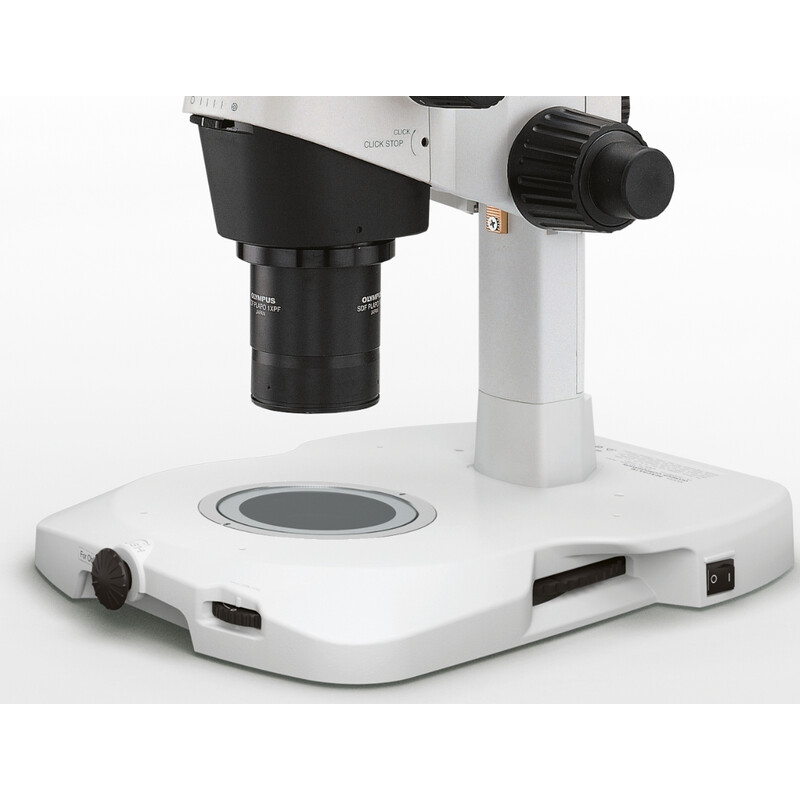

Tripod SZX2-ILLTQ LED
With a slim profile of 41.5 mm – about half the thickness of conventional halogen lamp transmitted light bases – our LED transmitted light bases offer a lower height for a more comfortable viewing angle and easier access to the base-mounted samples during observation and operation.
- The SZX2-ILLTQ LED illumination base features a quadruple revolver that allows quick selection of cartridges and seamless switching between bright field (standard/high/low), oblique field (standard/high/low), dark field, polarised lighting and shutter with a simple turn.
Another advantage of LED lighting is a cooler base surface, making it more suitable for long-term processing of living samples. Compared to a conventional 30 W halogen light source, LED lighting consumes less power and offers a significantly longer service life – over 60,000 hours – helping to reduce operating costs.
Components included:
- N1977100 SZX2-ZB16 zoom body
- N1979100 SZX2-TR30 Trinocular tube 30°
- N1198000 WHSZ10X-H eyepiece (2x)
- N2190000 SDFPLAPO1xPF Objective
- N1978900 SZX2-FOF Focus unit
- N5733700 SZX2-ILLTQ LED base 4 pos.
- N5733100 SZX2-CDF Dark field insert
- N5732800 SZX2-CBF HF standard insert
- N5733200 SZX2-COB Oblique standard insert
- N2659700 U-ACAD4515-1-5 Power supply
- 035425 UYCP CONNECTION CABLE
- 035440 BO61 DUST PROTECTION COVER
