Product description

More about the series StereoBlue...

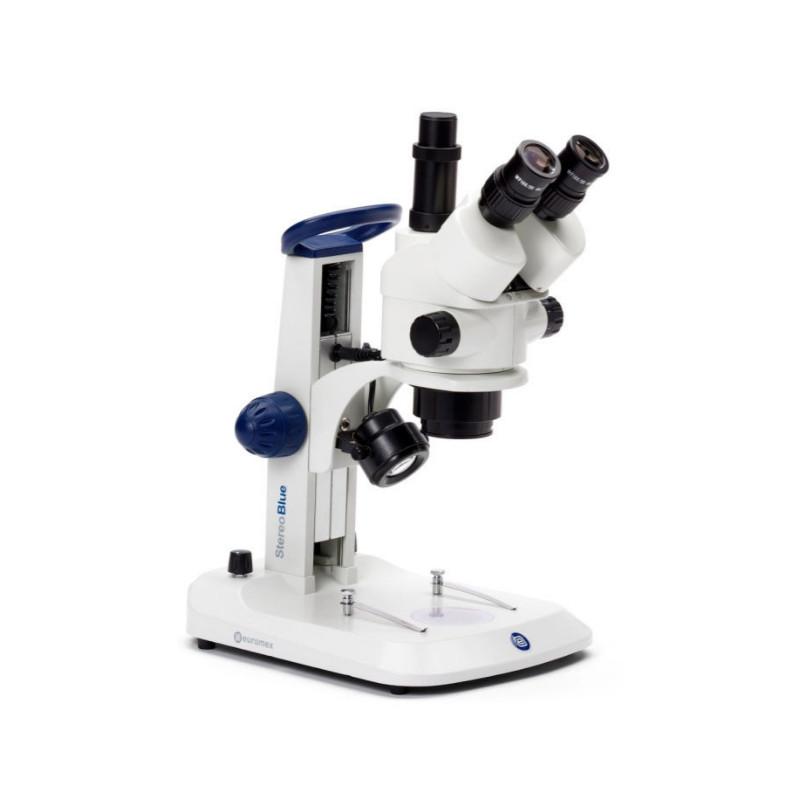

StereoBlue SB.1903, zoom, trino

  • Eyepieces: WF10x/20 mm wide field eyepieces with eyepiece cups
  • Tube: Binocular tube inclined at 45°, rotatable through 360°. Diopter adjustment. Eye relief adjustable between 55 mm and 75 mm
  • Objectives: 0.7x to 4.5x zoom objective. Magnifications from 7x to 45x with a field of view from 28.5 mm to 4.5 mm. Working distance 100 mm. Other magnifications and working distances can be achieved with the WF 5x/18, WF 15x/15 or WF 20x/10 wide-field eyepieces and the 1.5 or 0.75x magnification lenses.
  • Tripods & mounts: Large rack and pinion tripod, ergonomically designed for a relaxed hand position. Cast aluminium with baked enamel finish. With transparencies and black/white table top. Coarse adjustment with rotary resistance control.
  • Illumination The 3 Watt LED lighting in reflected and transmitted light is separately adjustable, both types of lighting can be used simultaneously.

Specifications

Optics

Eyepiece
10 (10X/20 mm wide field)
Magnification
7-45
Lamp type
LED (3 watts)
Lighting
Incident light and transmitted light
Optical system
Greenough

Mechanics

Type of build
Trinocular
Working distance (mm)
100
Viewing posture (°)
45° angled eyepiece, 360° rotatable

Special features

Dust cover bag
yes

General

Width (mm)
219
Colour
blue / white
Suitable from
13
Height (mm)
340
Length (mm)
266
Series
StereoBlue

Field of application

Education
yes
Medicine
yes
Industry
yes

Area of application

University
yes
Veterinary medicine
yes
Mineralogy
yes
Materials technology
yes
Metallurgy
yes
show more...

Downloads

Booklet (EN)

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
