More about the series Nexius...
Euromex NexiusZoom
The NexiusZoom stereomicroscopes are often used for professional industrial purposes, scientific research and education because of the excellent optical and mechanical properties while very attractively priced
- Standard wide field secured WF10x eyepices with 22 mm field of view
- 45° inclined, 360° rotatable bino- and trinocular stereo heads
- 0.67 to 45x Zoom objectif, parafocal over the entire zoom range with a working distance of 110 mm
- With optionale additional lenses, magnifications from 3.3x to 90 times can be achieved
- 2 read-to-use stereomicroscope models with ergonomic flat stand with 3 W LED diascopic and incident illumination
- 4 configuratieons with universal one arm or double arm stands

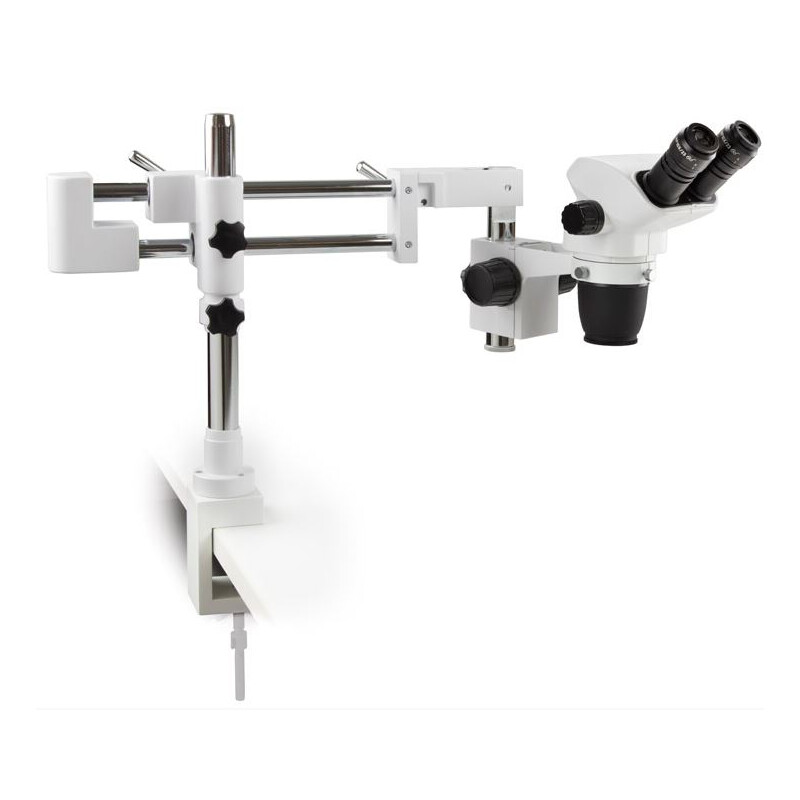

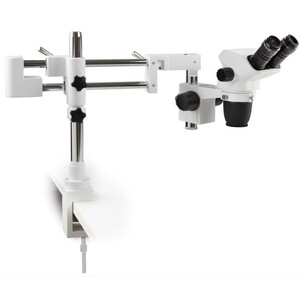

NZ.1902-BC, 6.7-45x, double arm, table clamp, bino
- Objective: 0.67 x to 4.5 x
- Eyepieces: WF10x/22 with diopter adjustment
- Tube: 45°
- Total magnification from 6.67 to 45x
- Field of view 33 to 4.9 mm
- Working distance 110 mm ,
- maximum object height 213 mm
- Tripods & mounts: Double arm with table clamp
- Lighting: without
EYEPIECES
The Standard NexiusZoom is supplied with a pair of HWF 10x/ 22 mm eyepieces.
OBJECTIVES The standard NexiusZoom is equipped with a plan achromatic 1:6.7 objective with 0.67x to 4.5x magnification. Field of view from 33 mm to 4.9 mm. Large working distance of 110 mm
Ancillary lenses 0.3x / 0.4x / 0.5x / 0.75x / 1.5x and
2.0x are available. All lenses are treated against fungi.
