Nexius Zoom Evo
The NexiusZoom and NexiusZoom Evo stereo microscopes from Euromex enable you to examine your samples with high precision. They generate three-dimensional images for microscopy of the highest standards. These high-end zoom microscopes are perfect for analysing all types of surfaces or observing biological samples. The NexiusZoom stereo microscopes are available with a wide range of tripods and are supplied with or without LED lighting. Ideal for all types of educational and laboratory applications. With additional ancillary lenses and objectives, magnifications from 3.3x to 220x can be achieved

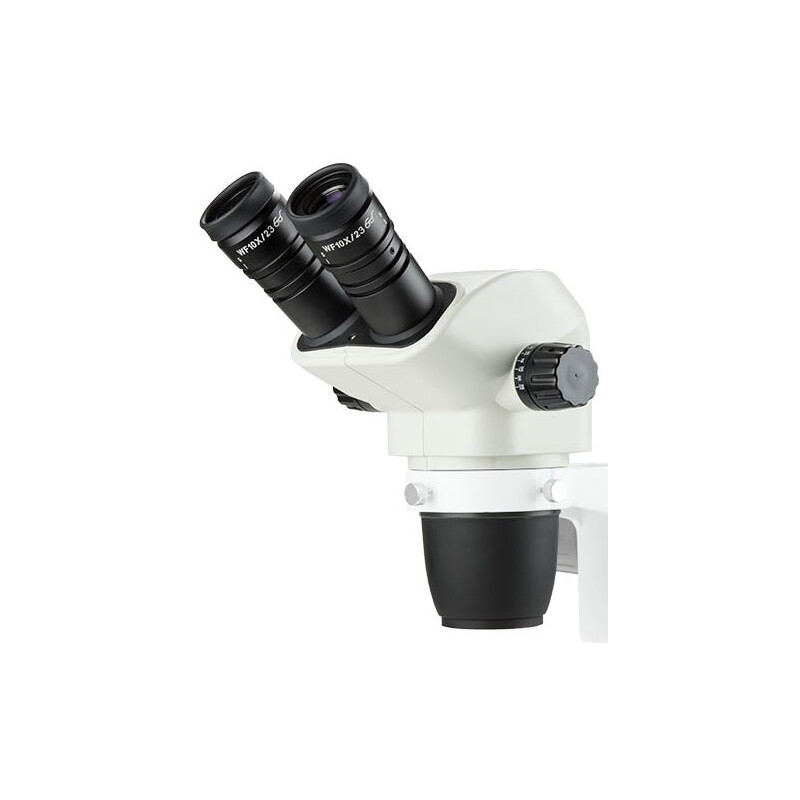

Nexius, head NZ.5312 EVO, bino, 6.5-55x
Eyepieces: Pair of WF 10x/23 mm, both eyepieces with ± 5 diopter adjustment
Head: Binocular or trinocular head with 45° inclined view, interpupillary distance adjustable from 54 mm to 75 mm
Lenses: Zoom 1:6.7; 0.65x to 5.5x, magnification up to 180x (ancillary lens 2x, eyepieces 20x optional); field of view from 33 mm to 4.9 mm; working distance 110 mm
EYEPIEC ES
The NexiusZoom Evo comes with a pair of HWF 10x/ 23 mm eyepieces.
LENSES
The NexiusZoom Evo is equipped with a plan achromatic 1:8.4 objective with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm
Ancillary lenses 0.3x / 0.4x / 0.5x / 0.75x / 1.5x and
2.0x are available. All lenses are treated against fungi.
