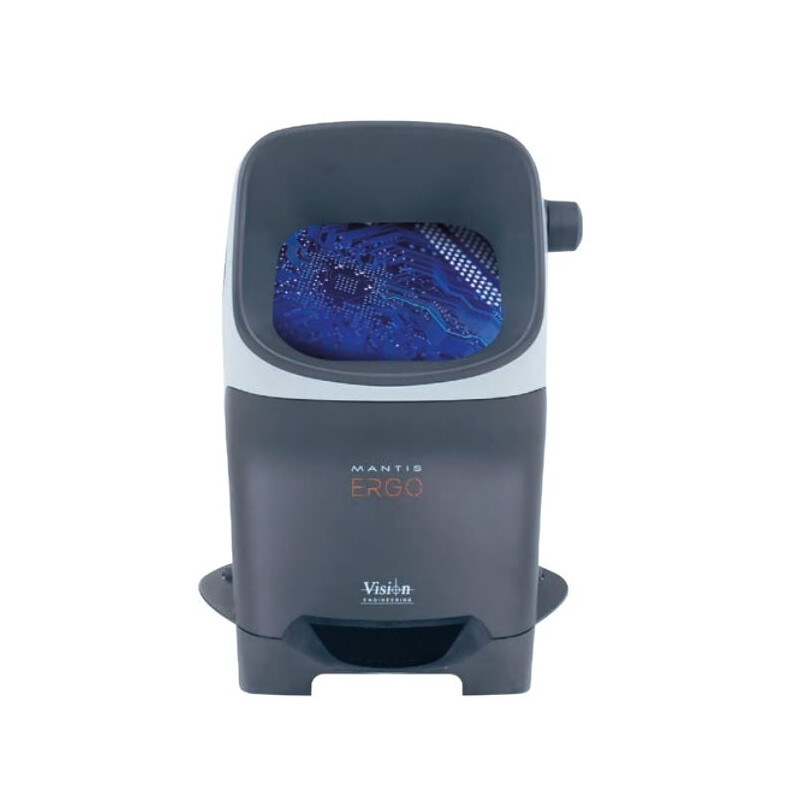

Mantis - ERGO
Eyepiece-free optical stereo microscope with dynamic 3D optics.
Highlights
- □ Best optical 3D stereo image
- Ergonomic working posture
- Large working distance
- Magnification 3x - 15x
- 3-fold lens changer
- Dynamic 3D lighting
- Optional white/UV lighting

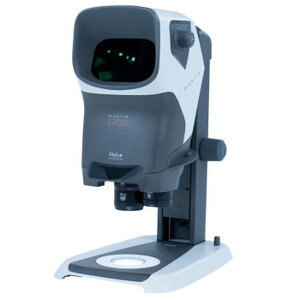

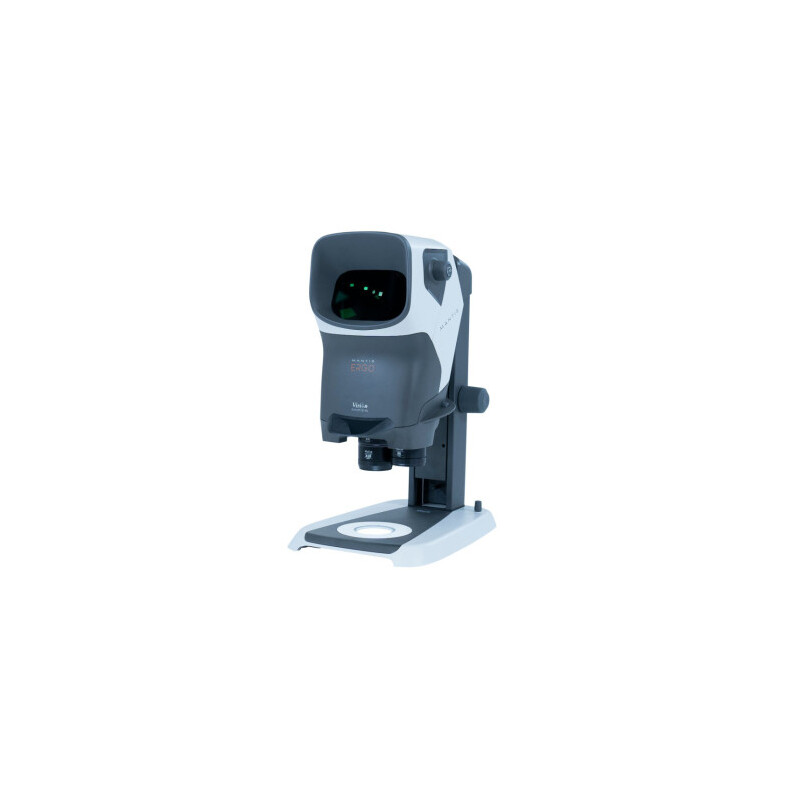

Mantis ERGO with "Stabila tabletop tripod" SMR211
Stabila tabletop tripod
The compact, stable design offers a large focusing range and an
optional transmitted light unit.
Dimensions:
- Working height – 150 mm
- Projection – 218 mm
- Max. object height – 146 mm
Components included:
- Stereo head MRH001 (without magnifying lenses/objectives) and LED lighting
- MTB210 tripod
- Base plate MTB211
- Dust cover MTA360
- Power pack MTA330
Note: Please select the desired lenses from the accessories or contact our service department.
Mantis PIXO & Mantis ERGO
Objectives Working distance Max. field of view Exit pupil diameter
3x 100 mm 44.1 mm 23.5 mm
4x 100 mm 35.7 mm 23.6 mm
6x 68 mm 24.2 mm 22.4 mm
8x 60 mm 18 mm 19.4 mm
10x 54 mm 14.2 mm 17.0 mm
15x 40 mm 9.1 mm 12.3 mm
6x SLWD 114 mm 22.5 mm 17.0 mm
8x SLWD 113 mm 17.9 mm 14.4 mm
