LED ring lights
A well-rounded solution in many sizes
Mini LED ring lights RL1 and RL2
The mini LED ring lights of the RL1 and RL2 series are used wherever there is little space available for lighting due to their compact dimensions. Despite this, these ring lights provide plenty of light, e.g. for camera applications or as lighting for production machines. Both series are available with two different nominal working distances, which is achieved by different LED installation angles.
LED ring lights RL4 and RL5
The RL4 and RL5 series are primarily designed as incident light illumination for microscopy. The working range of the ring lights is selected so that the focus is at the typical distance between the objective and the microscope stage of standard microscopes. Both series are available with two inner diameters, providing the right model for all common microscope types.
Power LED ring light RL12
The RL12 power LED ring light offers enormous brightness thanks to its twelve 3W LEDs and is suitable for applications with increased light requirements, e.g. in conjunction with high-speed cameras. Thanks to five different versions with different geometries, the perfect lighting can be found for both small and larger working distances.

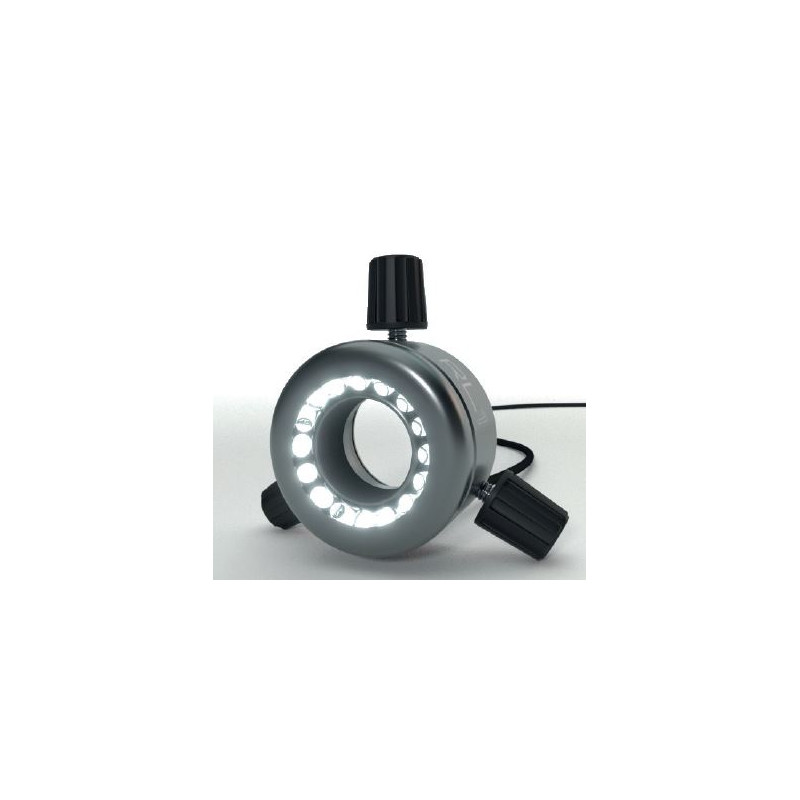

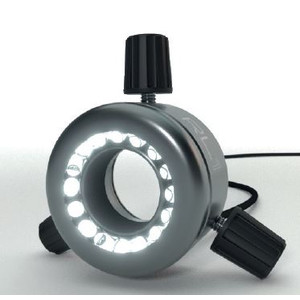

Mini LED segment ring light RL1-10-S4
Compact segment ring light for working distances from 5 mm to 25 mm
Mini LED ring lights from StarLight are characterised by high quality workmanship. Thanks to environmentally friendly LED technology, they are efficient and durable. Their compact design and short working distance make them ideal for applications with cameras or lenses, for example in image processing.
- Individual brightness adjustment of the individual segments via rotary knobs
- Rotary knob for adjusting the overall brightness
- Clamping diameter variably adjustable via screw

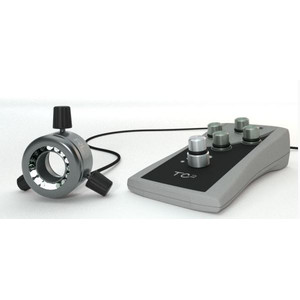

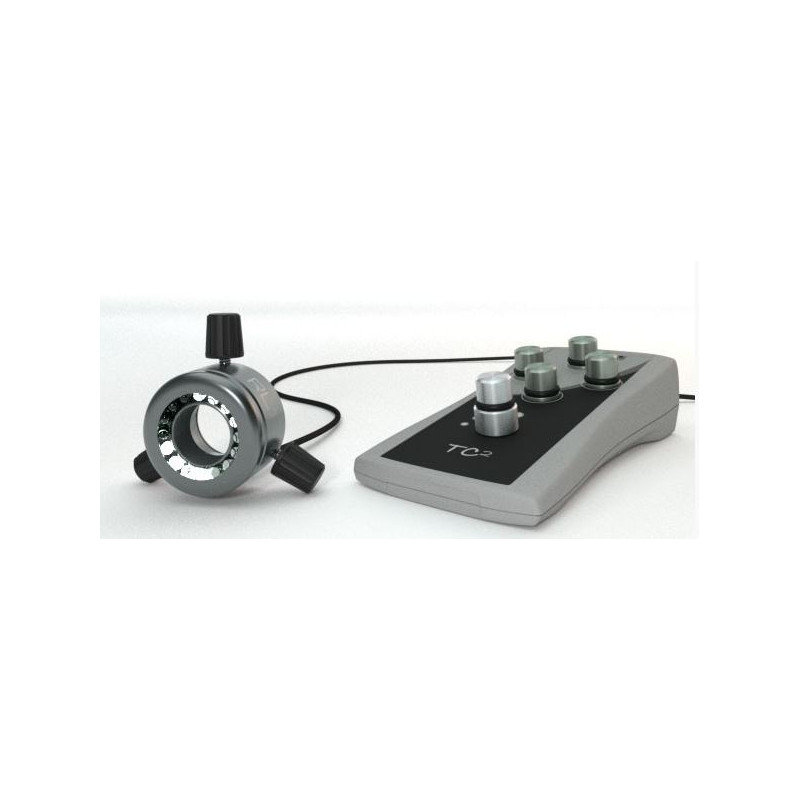

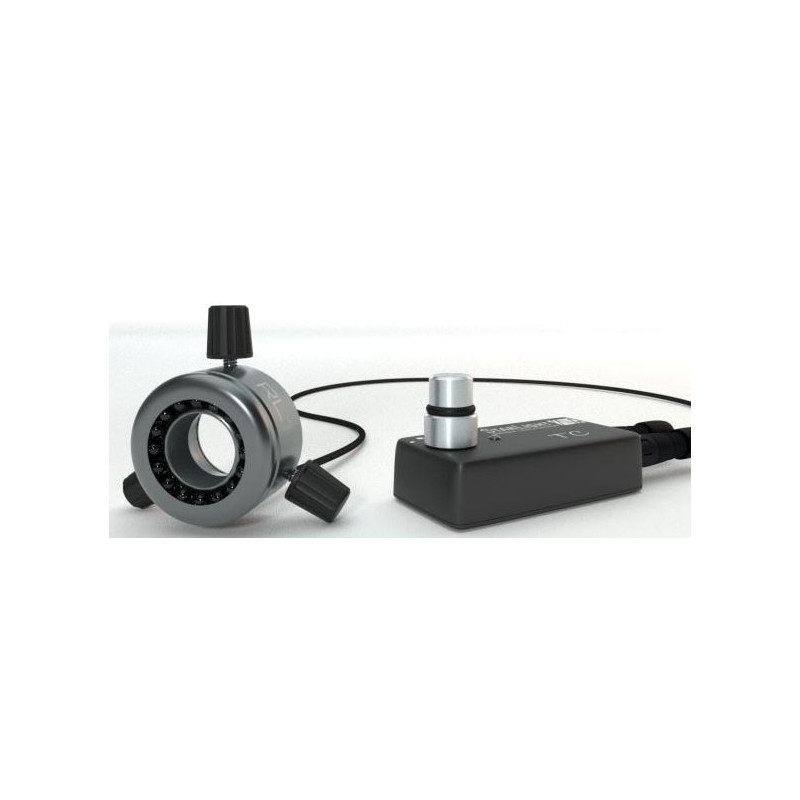

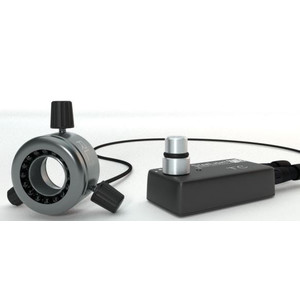

Scope of delivery:
- Mini LED segment ring light RL1-10-S4
- Table controller
- power pack
Lighting values depend on the model selected!
Technical
- Number of LEDs 16
- Maximum power consumption 4 W
- Working distance approx. 5 mm - 25 mm
- Optimal working distance approx. 10 mm

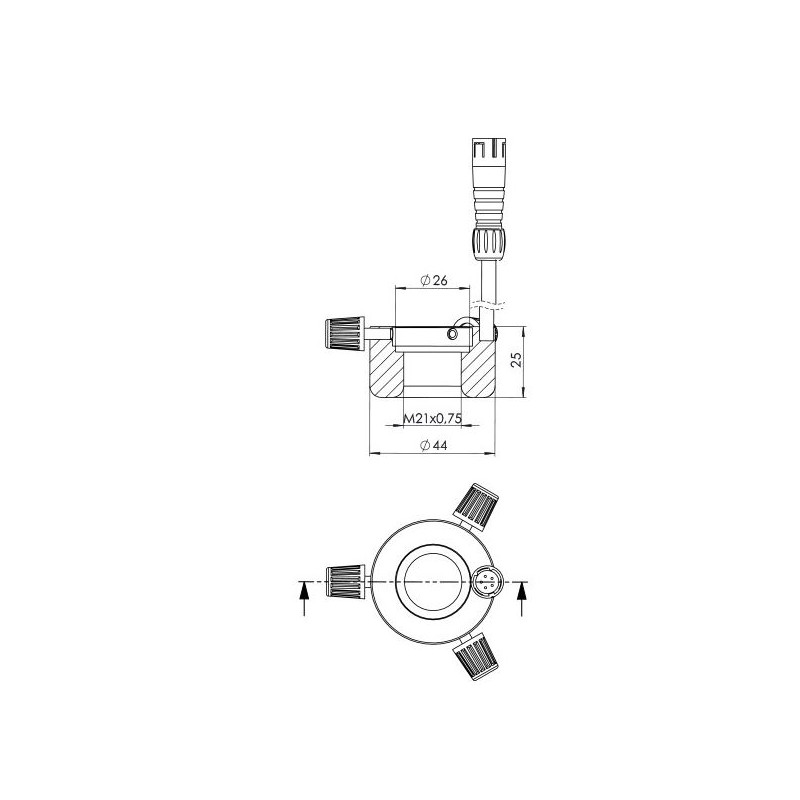

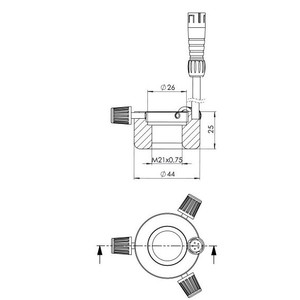

- Control dimensions (LxWxH) 161 mm × 78 mm × 45 mm
- Thread M21 × 0.75
- Length of supply cable approx. 0.8 m
- Outer Ø ring light 44 mm
- Height of ring light 25 mm
- Inner diameter of ring light 20 mm
- Clamping Ø max. 26 mm
- LED service life 50,000 hours (manufacturer's specification)
- Material: anodised aluminium
- Colour titanium
- Light control weight approx. 210 g
- Weight ring light approx. 60 g
- Power supply input (EU|UK|US) 100 - 240 V AC, 50/60 Hz
- Power packoutput 24 V DC, 1 A
- Power pack cable length approx. 1.4 m
- Dimensions with packaging 320 mm × 205 mm × 95 mm
- Weight with packaging 620 g
- RL1-10-S4 G, green (540 nm)
