TECHNICAL SPECIFICATIONS
- High Power LED Ring Light Source Illuminations LEDs have gained acceptance in both quality control applications and in production.
- These illumination solutions can be diffuse or optimised with dedicated Fresnel lenses for shorter or longer working distances.
- Light-emitting diodes have the advantage of being a cold light source with a constant spectral output over very long lifetimes.
- LED ring light source with maximum illuminance and metal construction for professional use.
- With adjustable intensity, optional power supply/segment controller, diffuser, polarizers and Fresnel focusing lenses for perfect illumination of objects.

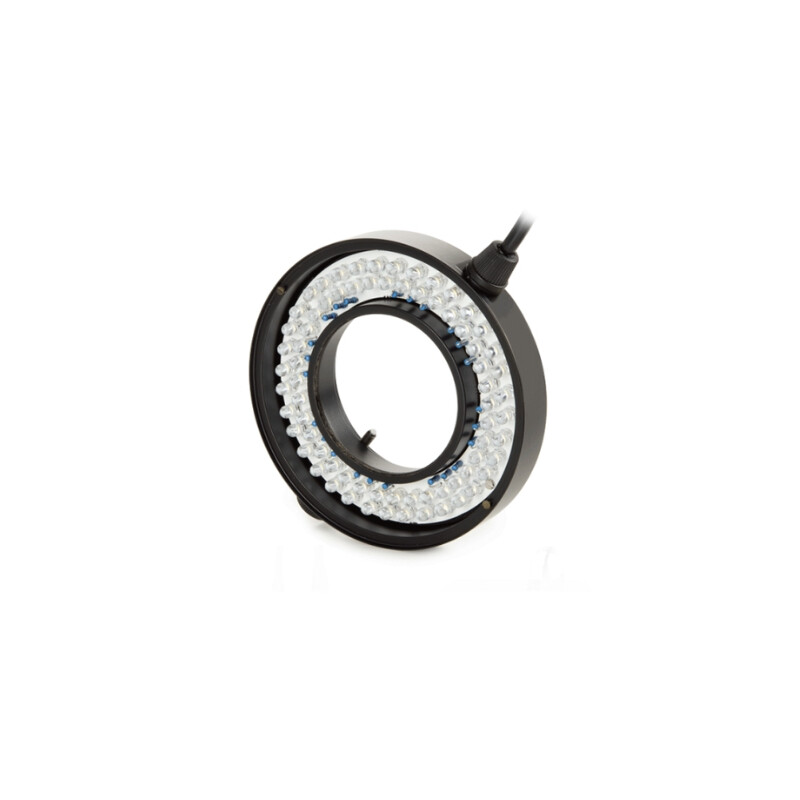

Professional high-power LED ring light source
- 72 LEDs with adjustable intensity
- Metal construction
- Illuminance 21,000 lux at 100 mm distance
- Various accessories
- 2-year warranty
Specification LE.1990
- Number of LEDs: 72
- Colour temperature: 6,000 K
- Illuminance: 21,000 lux at 100 mm distance
- For mounting diameters: 40-66 mm
- Internal diameter: 60 mm
- External diameter: 110 mm
- Output connector: Analog controller
- Intensity: Adjustable from 0-100 %
- Required power supply: LE.1992
