More about the series Medicus...
Precise optics, robust mechanics
A microscope for every application
• Examination of blood, tissue sections and smears in bright field
• Examination of urine sediments, bacteria and cell cultures in phase contrast and/or dark field
Ergonomics Fatigue-free working thanks to
• Adjustable Siedentopf tube with optimal viewing angle
• Ergonomically arranged controls for focusing and cross table
Sharp images right to the edge
• Planachromatic bright field lens series 10x
• Plan achromatic phase contrast lenses 40x/100x
Hund microscopes have a high quality standard, a good functionality. They are ergonomic and versatile system for medical and biologycal applications .

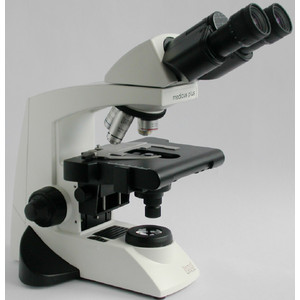

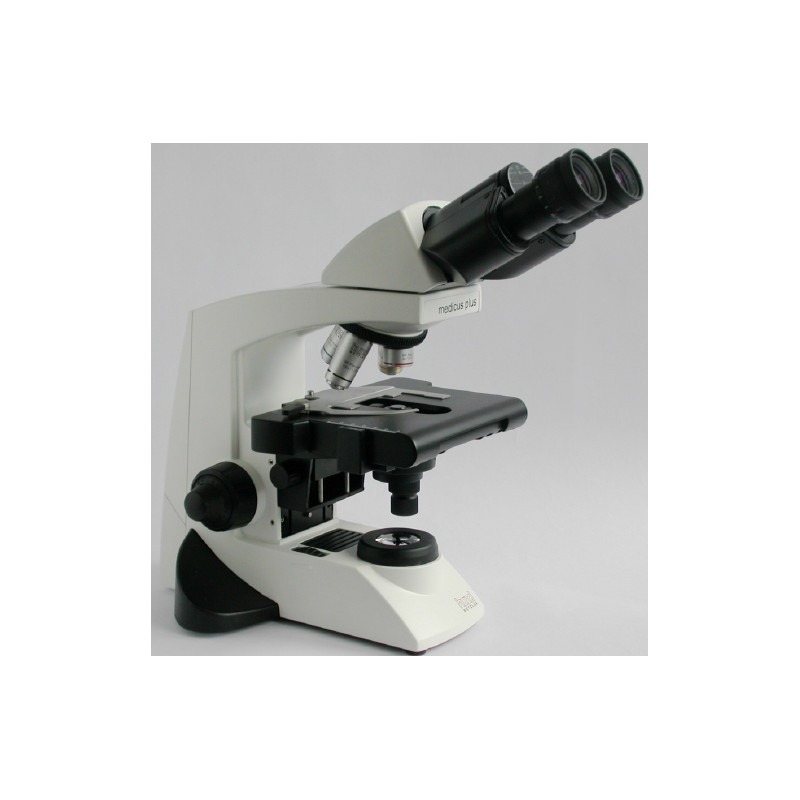

Laboratory microscopes Medicus
- Solid cast tripod in classic gooseneck shape
- Coaxially arranged coarse and fine focusing drive.
- Height adjustment of the coarse adjustment knob total: 12.7 mm.
- Height adjustment of the fine adjustment knob per division: 3 microns - Binocular Siedentopf -Tubus, 360° rotable .
- Viewing angle 30 °
- Tube factor 1x
- Eye distance of 55 mm - 75 mm adjustable
- Diopter compensation at each eyepiece. - 4-position nosepiece with ball bearing guide
- Plan-achromatic lenses, infinity-corrected
- Cross table 200 mm x 160 mm with ergonomically located coaxial knobs.
- Sliding range 78 mm x 54 mm
- Specimen holder with spring lever - Height adjustable Abbe condenser NA 1.25
- Integrated 6 V / 20 W halogen lights, infinitely variable
