Microscopes > Inverted microscopes > ZEISS > Primovert > ZEISS inverted microscope Primovert HDcam Ph0, Ph1, Ph2, 40-400x, Ph1, Cond 0.4, Cam 5MP
Product no.: 61800

inverted microscope Primovert HDcam Ph0, Ph1, Ph2, 40-400x, Ph1, Cond 0.4, Cam 5MP

$ 9,100.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

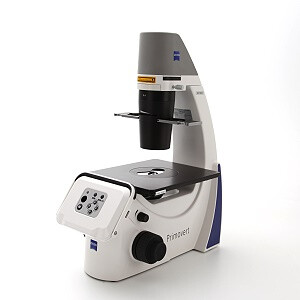

Primovert HDcam

Primovert HDcam is your solution for image acquisition and documentation. The camera is already integrated into the stand – no need for further adjustments and camera settings. In combination with your iPad and the Imaging App Labscope you share, discuss and explain your observations with colleagues – independent from the location of your microscope. Profit from a fast live display – also on multiple iPads over WiFi. Acquire images and videos, make annotations and documentations – and easily share these data.

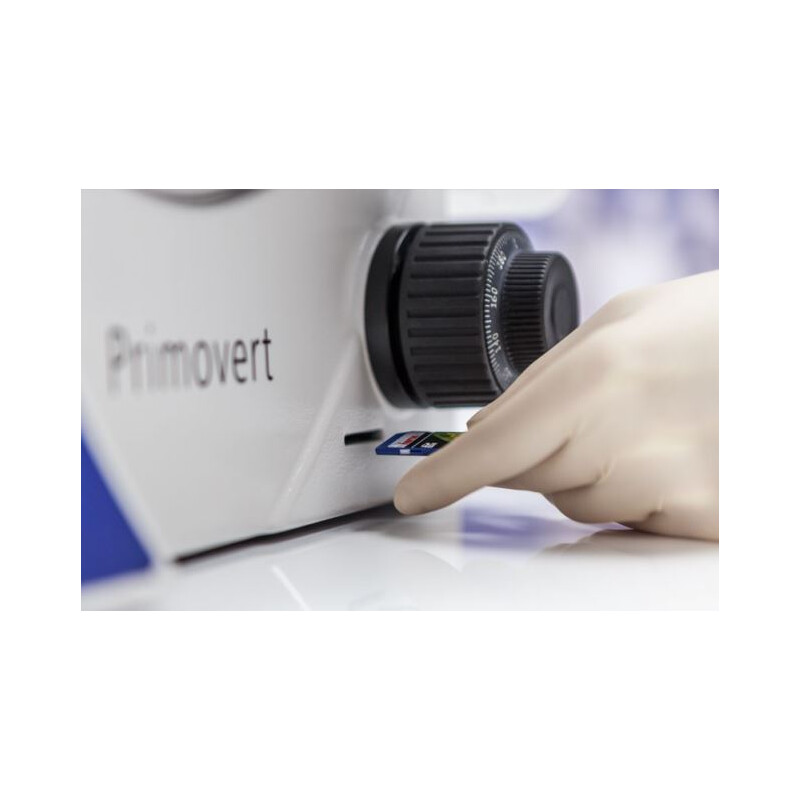

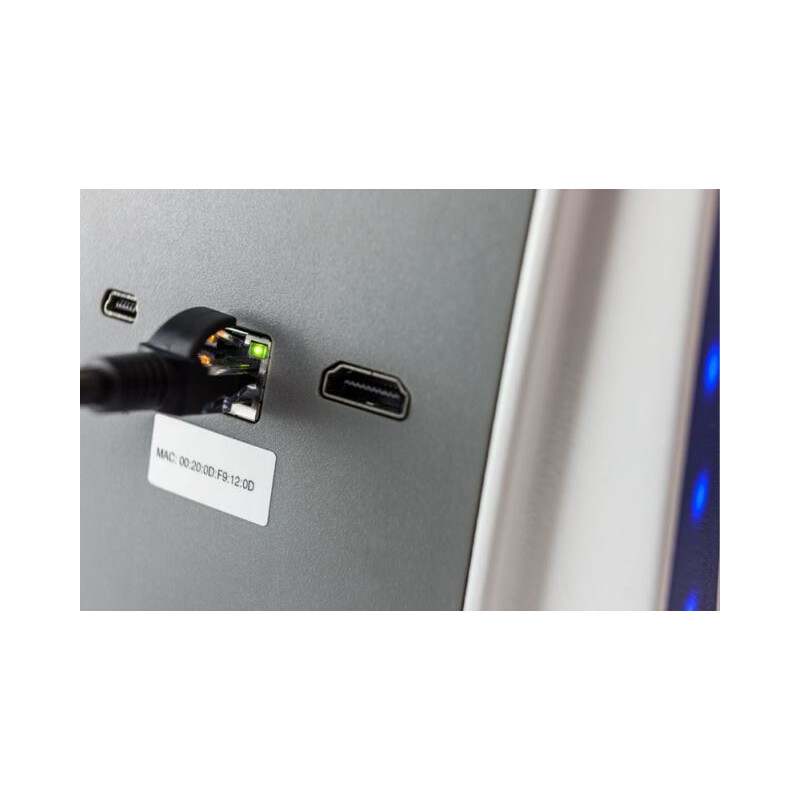

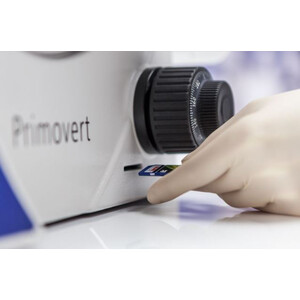

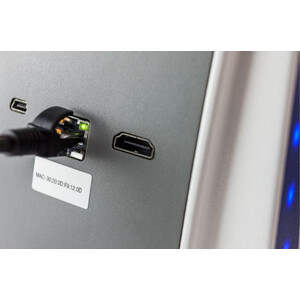

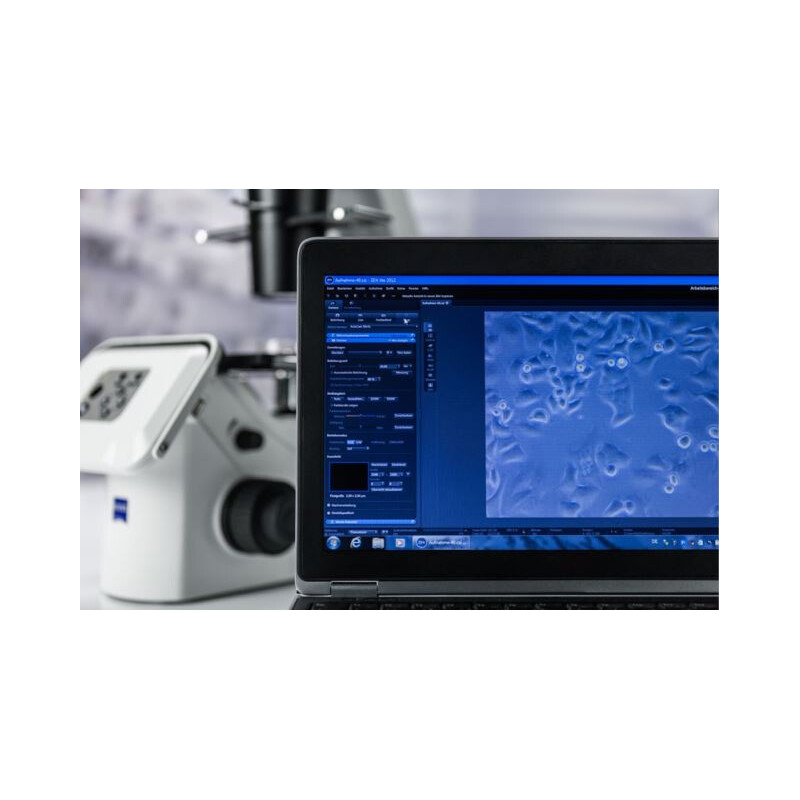

Or use Primovert HDcam without iPad: you control your camera and acquisition settings directly at the stand. Various interfaces of the integrated camera let you easily transfer data directly to your PC with imaging software ZEN lite. Or use the interfaces to connect a monitor or projector.

Specifications

Optics


Image scale
40-400
Condensor
0.3 w.D. 72 mm
Lens type
Plan, achromatic (infinity corrected)
Eyepiece
PL 10x/20
Power supply
100-240 V
Magnification
40-400 (4,10,20,40)
Lighting
Transmitted light
Objective 1
4x/0,10 Ph0, w.d. 12.0mm
Objective 2
10x/0,25 Ph1 w.d. 4.4 mm
Objective 3
20x/ 0,3 Ph1 w.d. 4.6 mm
Objective 4
40x/0,5 Ph2 w.d. 2.7 mm
infinity corrected
yes
Lamp type
LED

Capacity


Brightness control
adjustable
Temperature of color (K)
7000
Transmitted light
yes
Dark field
no
Phase contrast
yes
brightfield
yes
Contrast methods
Phase contrast

Mechanics


Type of build
Digital
Viewing posture (°)
45° angled eyepiece
Focusing
Coarse and fine movement
Specimen stage
Specimen stage
Revolver
4
Working distance (mm)
72

Special features


Rechargeable battery operation
-
Built-in digital camera
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

Camera


Resolution Photograph (Pixel)
2560 x 1920
Colour camera
yes
LCD screen
-
Peltier cooling
no
Pixel size
2.2 x 2.2
Megapixel
5MP
sensor
CMOS

General


Colour
white / blue
Weight (g)
11000
Width (mm)
261
Length (mm)
550
Height (mm)
494
Series
Primovert

Field of application


Medicine
yes
Biology
yes
Education
yes

Area of application


University
yes
Naturopathy
yes
Central laboratories
yes
Marine Biology
yes
Microbiology
yes
Technical training
yes

Miscellaneous


supplier product number
491207-0004-000

Product safety

Manufacturer:

Recommended accessories

Microscopy supplies (1)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 17.90*
Baseprice: $ 3,580.00/L

*All prices include VAT plus shipping costs.

ZEISS inverted microscope Primovert HDcam Ph0, Ph1, Ph2, 40-400x, Ph1, Cond 0.4, Cam 5MP
Primovert
ZEISS inverted microscope Primovert HDcam Ph0, Ph1, Ph2, 40-400x, Ph1, Cond 0.4, Cam 5MP
Hela, 20x
ZEISS inverted microscope Primovert HDcam Ph0, Ph1, Ph2, 40-400x, Ph1, Cond 0.4, Cam 5MP
U2O2, GFP, 20x
