Ts2
Optical System: CFI60 Infinity Optical System
Observation method: Bright Field, Apodized Phase Contrast*1, Phase Contrast, Emboss Contrast*2
Diascopic illumination: High luminescent white LED illuminator (Eco-illumination), Built-in Fly eye lens
Episcopic illumination:
Tube: Inclination: 45 degree, Pupillary distance: 50-75 mm, Siedentopf type Attachable camera port, Eyepiece/Port:100/0:0/100
Eyepiece (F.O.V.): 10x (22), (optional) 15x (16), 20x (12.5)
Focusing: Via nosepiece up/down movement, Stroke (manual): Up 7 mm down 1.5 mm. Coarse stroke: 37.7 mm per rotation, Fine stroke: 0.2 mm per rotation, Coarse motion torque adjustable
Nosepiece: Quintuple nosepiece
Condenser: ELWD condenser (NA 0.3, W.D. 75 mm)
Slider: Pre-centred or centring PH slider, 10x, 20x, 40x Objectives available for phase contrast
Emboss contrast sliders (both condenser-side slider and eyepiece-tube-side slider must be mounted), 10x, 20x, 40x objectives available for emboss contrast
Stage: Plain Stage, stage size: 170 (X) x 247 (Y) mm, With Glass Type Stage Ring, Mechanical stage (optional), stroke: 126 (X) x 78 (Y) mm, Accepts 5 types of micro-test plates, well clamper and stage clip
Holder: C-S-HP35 Petri dish holder 35 mm
C-S-HLP100 Petri dish holder 100 mm
C-S-HT Terasaki Holder for Terasaki holder and φ65 dish
C-S-HS Glass Slide Holder for glass slides, φ54 dish and hemocytometer
C-S-HU Universal Holder for Terasaki plate holder, glass slide, φ35-65 dish and hemocytometer
Epi fluorescence attachment:: -

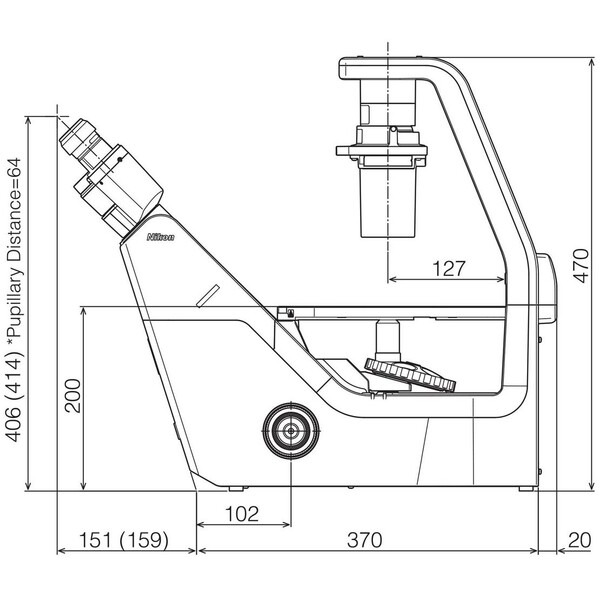

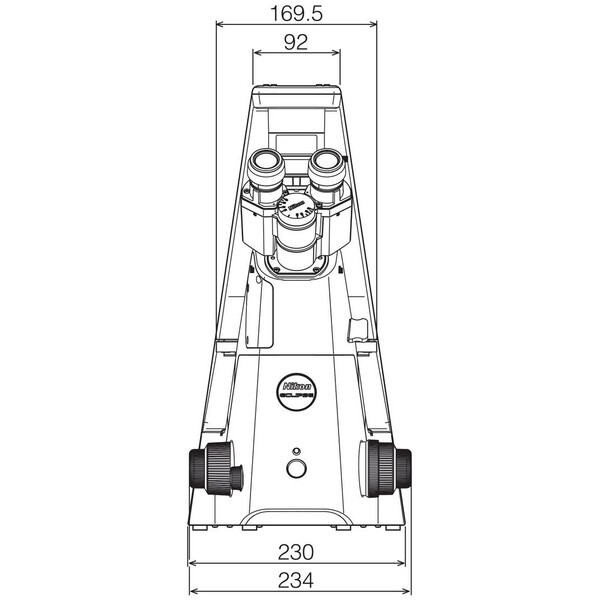

Dimensions: 236 (W) × 548 (D) × 471(H) mm
Weight (approx.): 13 kg
Rated Voltage/Electric Current: 100V-240VAC±10%、50/60Hz、0.35A
Power consumption (nominal value): 15W
*1 APC (Apodized Phase Contrast) is a type of phase contrast observation with reduced halo, thanks to Nikon's unique lens coating.
*2 Emboss contrast is Nikon's unique contrast observation method. It provides pseudo-three-dimensional images using focal illumination, which gives high contrast to samples.
NIKON ECLIPSE Ts2-Series:
Fits in Every Laboratory — Simple to Use & Compact

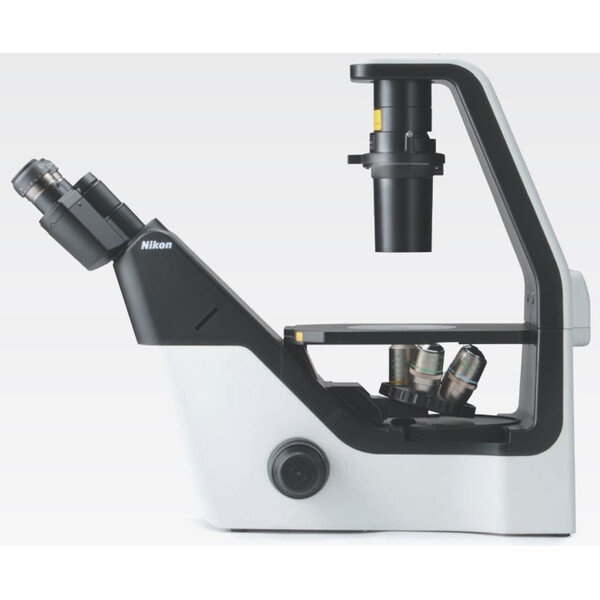

Utilizing Nikon's industry-leading CFI60 optical system and LED illumination for both Diascopic and Epi-fluorescence imaging, the Eclipse Ts2 inverted microscope offers brilliantly clear images, enabling more efficient cell culture observation and documentation. Furthermore, a newly developed contrast observation method and improved operability enhances its use for routine laboratory work.
Efficient and comfortable observation
LED light sources and built-in Diascopic/Epi-fluorescence illumination systems reduce setup time and allow users to concentrate on their research.
Faster, brighter images with LED illumination
The LED light source is alignment-free, resulting in faster setup and consistent results. LEDs also eliminate frequent bulb replacements, saving the user time and money.
Moreover, the new Contrast Shield (optional) provides high signal-to-noise fluorescence observation even in brightly lit culture rooms.
Streamlined Operation

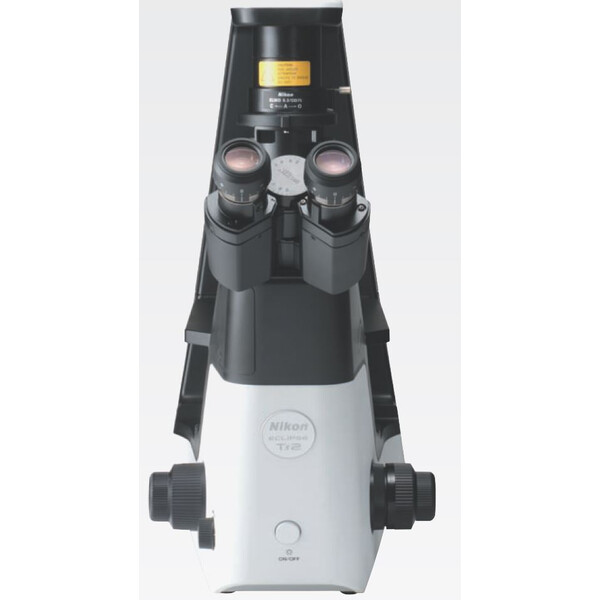

Control buttons on the Ts2 microscope are intuitively located for a streamlined workflow. Commonly used controls such as the on/off and Diascopic/Epi-fluorescence switching buttons are located at the front panel for easy reach. Buttons pertaining to either Diascopic or Epi-fluorescence control are zoned to the left and right sides of the microscope body, respectively, to eliminate confusion and improve workflow efficiency.
Easy-to-use Mechanical Stage
The high performance mechanical stage (optional) can accommodate a wide range of flasks and cell culture chambers. The new stage design also directly accommodates well plates. In addition, the sample holder is easily removed to accommodate large flasks.
"Emboss Contrast" Contrasting Technique
Emboss Contrast is a cost-effective optical technique which does not require costly optics. Utilizing just a bright-field objective lens and two contrast sliders, Emboss Contrast provides pseudo-three dimensional and glare-free images for thick specimens such as iPS cells which would normally suffer from halos with conventional phase contrast methods. Additionally, Emboss Contrast is compatible with both glass and plastic culture chambers, making it a very versatile observation technique.
LED-based high-quality Diascopic and Epi-fluorescence observation
Two models are available to meet your needs; a Diascopic illumination model, the Eclipse Ts2, and an Epi-fluorescence illumination model, the Eclipse Ts2-FL. High-intensity LED sources are employed for both Diascopic and Epi-fluorescence illumination. The built-in fly-eye-lens ensures uniform brightness across the entire field of view.
Compact and highly stable body
Illumination modules including the Epi-fluorescence light source have been seamlessly incorporated into the microscope main body, resulting in a compact and simple design form that's also durable. The compact structure is also vibration-resistant to provide highly stable sample observations.

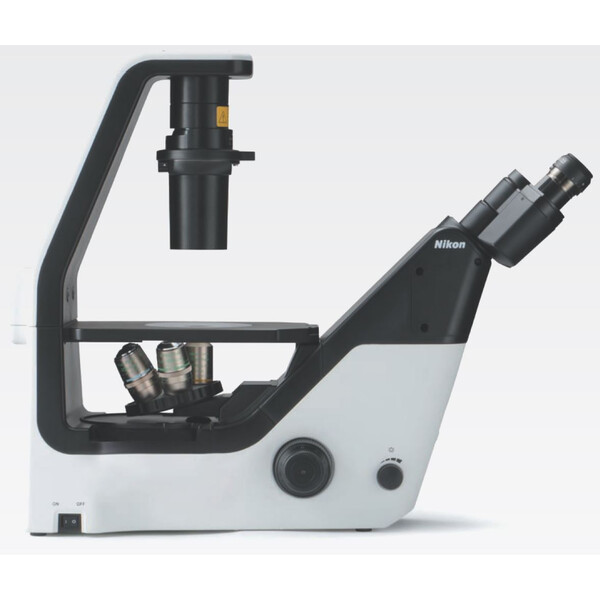

The camera port is located on the side of the microscope to provide unimpeded viewing of the stage even when placed inside a culture hood.
