Microscopes > Inverted microscopes > Kern > MET > Kern OLF 162, inverted, MET, bino, DIN planchrom, 100x-400x, Incident light, LED, 3W
Product no.: 66424

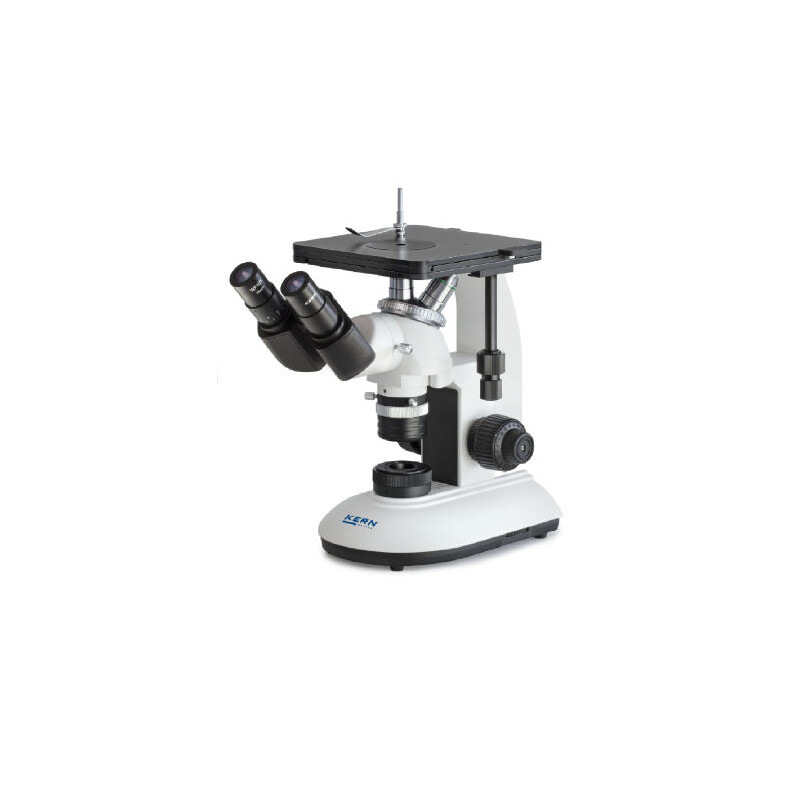

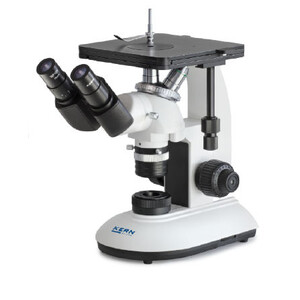

OLF 162, inverted, MET, bino, DIN planchrom, 100x-400x, Incident light, LED, 3W

$ 1,340.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
Product questions?
advice for Microscopy

Product description

  • The KERN OLE-1/OLF-1 is a stable inverse metallurgical microscope which is very easy to use
  • It is suitable for all common routine applications in training companies or workshops and produces excellent images
  • You can choose between mono or binocular versions with different eyepieces
  • As standard, these microscopes are fitted with planachromatic lenses
  • A revolving unit for up to 4 lenses and a large specimen stage are also included with delivery as standard
  • The following optional accessory items are available: LWD lenses for a large working distance as well as various stage inserts etc.
  • A powerful 3W LED light is available to provide the lighting
  • A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted precisely. This is emphasized by the functional and ergonomic design

Specifications

Optics

Eyepiece
10x/18 (Widefield)
Optical system
DIN (160mm)
Lens type
Plan apochromatic
Objective 2
10×/0,25 W.D. 8,87 mm
Objective 3
20×/0,40 W.D. 1,6 mm
Objective 4
40×/0,65 W.D.0,72 mm
Magnification
100-400
Lamp type
LED
Power supply
EU-

Capacity

Incident light
3W
brightfield
yes
Polarization
no
Brightness control
yes
Contrast methods
without

Mechanics

Type of build
binocular
Viewing posture (°)
45
Focusing
Coarse and fine movement
Specimen stage
-

Special features

Filter holder
yes
Rechargeable battery operation
-
Dust cover bag
yes

General

Weight (g)
7000
Width (mm)
340
Length (mm)
190
Height (mm)
330
Series
MET

Suitable for

Advanced
yes
Pros
yes

Field of application

Education
-
Hobby
yes
Medicine
-
Industry
yes
show more...

Product safety

Manufacturer: KERN & Sohn GmbH, Ziegelei 1, 72336 Balingen, DE, http://www.kern-sohn.com/
