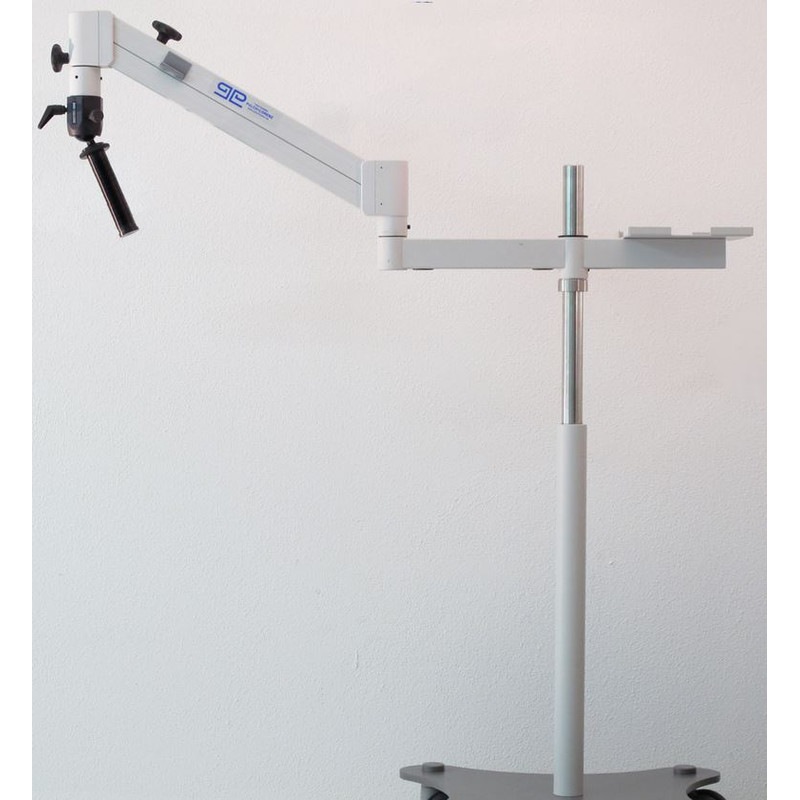

Floor stand, spring-loaded arm, ball head
Stability and flexibility are not mutually exclusive for us.
This floor stand combines flexible and variable working with the highest standards of stability and precision in microscopy. An ergonomic working environment is guaranteed during restoration work in different locations, overhead, in inaccessible places, and when supplying several workstations with a variable microscope system.
Thanks to its four lockable double castors, the tripod stands securely on any surface. The spring-loaded articulated arm can be adjusted to the weight of the microscope and can also be locked in any position.
With a total weight of 51 kg, the floor stand guarantees the stability you are accustomed to from permanently mounted stand systems, yet it can be quickly dismantled and transported.
Technical data
- Made of stainless steel with high-quality bearings to guarantee maximum stability.
- 4 lockable double castors for high stability and easy movement on uneven floors.
- Variably adjustable columns for alternative working at different heights.
- Rear tube with opposite retaining plate for cold light source.
- Adjustable spring – can be adjusted to the weight of the microscope.
- Spring arm can be locked in any position.
- Spring arm can be quickly and easily converted from a hanging to a standing version:
- Working range of hanging version from 500 mm to 1320 mm,
- Working range for upright version from 905 mm to 1770 mm
- Optional mounting as a tabletop tripod possible with little effort.
- Suitable for horizontal, flat, vertical, suspended, upright and inclined objects.
- Easy to dismantle and therefore easy to transport.
Consisting of:
Scope of delivery
- Spring joint arm, 580 mm long, for various weights
- Rear tube 300 mm for floor stand with opposite mount with holding plate for cold light source
- Column 1000 mm variably adjustable from 760 mm to 1100 mm
- Chassis, lockable castors consisting of tripod pad and weight
- Ballhead with 32 mm column for attaching a microscope drive
