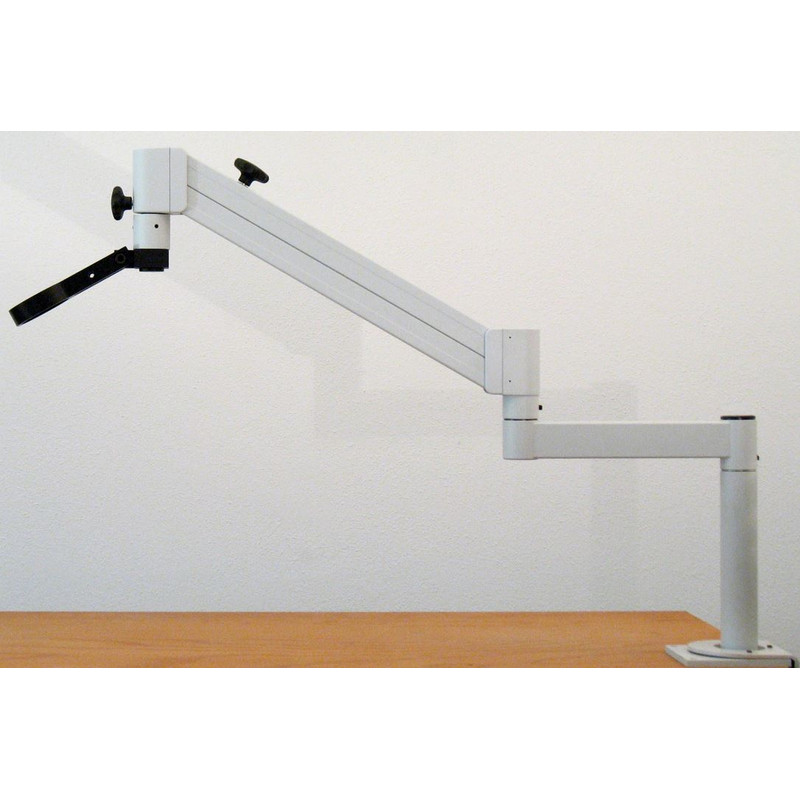

Articulated arm stand, table mounting, standard coupling

Articulated arm stand, table mounting, standard coupling

Flexi microscope standsthat combine the highest standards of stability and flexibility with ergonomic working:

Advantages at a glance

• Adjustable to the weight of the microscope
• Easy to dismantle, easy to transport
• The tripod is mounted directly onto the table (screwed), a table clamp is available as an option.
• Secure height locking in any position
• Optional screen holder available

Technical data:

• Swivel range: - 360
• Adjustment of the microscope - at an angle of 0-180°.
• Spring arm stroke: +/- 200 mm
• Load capacity of spring arm:
• Standard load arm - 2.5 - 6 kg
• High load arm - 6.0 - 10 kg
• Horizontal projection - 720 to 1030 mm
• Total tripod weight: Including spring joint arm - approx. 10 kg depending on version
• Optional mounting on a floor stand is possible with little effort.

• Standard coupling

Flexi tripod consisting of:

• Screw-on plate with column 250 mm (without table clamp)
• Rear tube 300 mm
• Spring-loaded articulated arm
• Standard coupling with 76 mm mount for various microscopes
