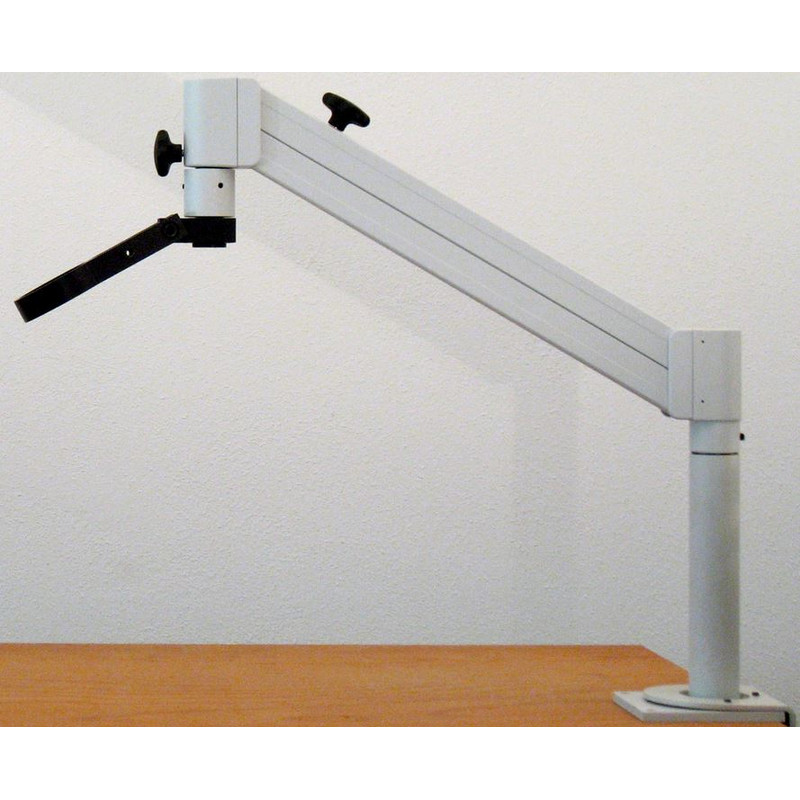

Flexi microscope standsthat combine the highest standards of stability and flexibility with ergonomic working:
Advantages at a glance
- Adjustable to the weight of the microscope
- Easy to dismantle, easy to transport
- The tripod is mounted directly onto the table (screwed), a table clamp is available as an option.
- Secure height locking in any position
- Optional screen holder available
Technical data:
- Swivel range: - 360
- Adjustment of the microscope - at an angle of 0-180°.
- Spring arm stroke: +/- 200 mm
- Load capacity of spring arm:
- Standard load arm - 2.5 - 6 kg
- High load arm - 6.0 - 10 kg
- Horizontal projection - 720 to 1030 mm
- Total tripod weight: Including spring joint arm - approx. 10 kg depending on version
- Optional mounting on a floor stand is possible with little effort.
Scope of delivery
- Screw-on plate with column 250 mm
- Spring-loaded articulated arm
- Microscope mount standard with 76 mm mount for various microscopes
