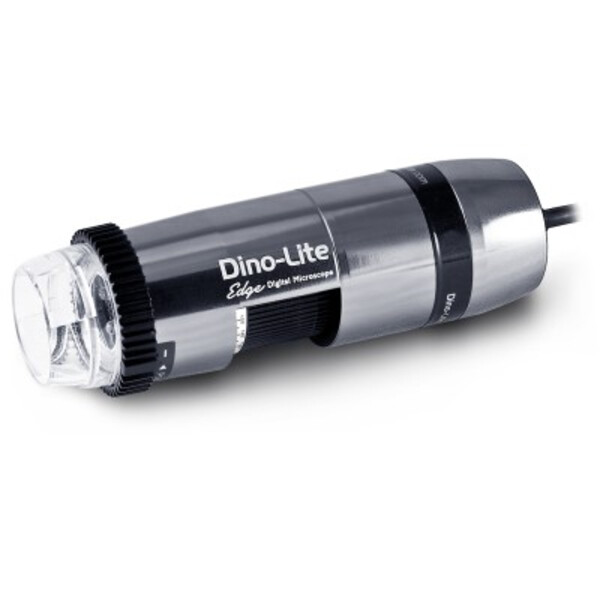

Dino-Lite AM7515MZTL
With the use of the latest, innovative optics, a completely new 5-megapixel sensor and several special features such as Flexible LED Control (FLC), Automatic Magnification Reading (AMR) and aluminium housing, the Dino-Lite AM7515MZTL is a marvel of technology and the best choice for demanding professionals. It offers outstanding image quality and colour reproduction in a robust, compact and attractive housing.
The microscope is part of the Dino-Lite Long Working Distance (LWD) range and, with its long working distance and magnification range of 10 - 140x, is suitable for a variety of applications where additional distance to the object or a larger field of view is required.
The additional working distance and larger field of view make this model an ideal solution for tasks such as repair, rework or assembly, or for working with bulky or fragile objects that must not be touched. The built-in polarisation filter makes this model ideal for working with shiny or reflective objects such as metal, plastic, glass, jewellery, electronics, etc. The AMR functionality is particularly important when the measuring functions are used frequently.
The most important features of the AM7515MZTL are:
- 5-megapixel edge sensor
- Long working distance (LWD)
- 10-140x magnification
- Integrated polariser
- Aluminium housing
- Automatic Magnification Reading (AMR)
- Flexible LED Control (FLC)
- Extensive measuring functions
- calibration
- Replaceable front caps
- And more
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 10-140x
- Macro zoom: No
- Working distance: Long
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 5 megapixels (2592x1944)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV (max 1.3MP)
- Imaging standards: DirectShow, UVC
- Wifi: Wireless-ready, requires the WF- 10 Wi-Fi streamer (optional)
Housing
- Housing material: Metal housing
- Magnification lock: Yes
- Dimensions: 10.5 cm (L) x 3.2 cm (D)
- Weight: 135 g
- Cable length: 1.8m
Features
- Special feature: Automatic Magnification Reading (AMR), Flexible LED Control (FLC).
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- Diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side light cap
DinoCapture software for Dino-Lite microscopes
With the DinoCapture software, you can use your Dino-Lite microscope particularly efficiently on a PC. The software has been developed for both new users and experienced professionals and supports the entire microscopy workflow – from live image display and image capture to structured documentation.
The integrated measurement and documentation functions are particularly practical. Depending on the Dino-Lite model, you can measure distances, areas, angles or radii, annotate images and archive measurement results clearly. This makes DinoCapture ideal for quality control, laboratories, industry, electronics testing, research and education. DinoCapture 3.0 offers improved data organisation: practical features such as favourites, an advanced search function, custom file naming and nested folder structures. This allows images, videos and project data to be managed clearly and retrieved more quickly.
In combination with a Dino-Lite digital microscope, DinoCapture supports a structured workflow: view the sample, capture an image, measure, document and share – all within a user-friendly software environment.
