Microscope AM7115MTF, 5MP, 10-70x, 8 LED, 30 fps, USB 2.0

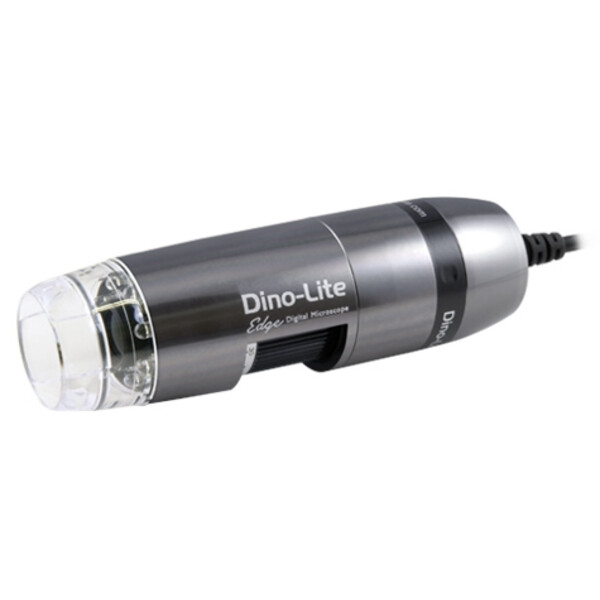

Dino-Lite AM7115MTF

When abundant space between the target and the microscope is a must, use Dino-Lite 5MP AM7115MTF extra-long working distance digital microscope. AM7115MTF offers high resolution images and up to 70x magnification at a 108mm working distance.

Specifications

Model:

• AM7115MTF Dino-Lite Edge

Interface:

• USB 2.0

Product resolution:

• 5MP (2592x1944)

Magnification:

• 10x-70x

Frame rate:

• 10fps in 5MP/3MP/2MP, MJPEG
• 25fps in 1.3MP, MJPEG
• 30fps in VGA, MJPEG

Image saving format:

• DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
• DinoXcope: PNG, JPEG

Videosaving format :

• DinoCapture2.0: WMV, FLV, SWF
• DinoXcope: MOV

Lighting:

• 8 white LEDs

Microtouch:

• Yes

Operating system supported:

• Windows XP/7/8/10/11; macOS 10.14 or later

System requirements

• Intel Core2 Duo @ 2.20 GHz/AMD Athlon X2 Dual Core BE-2400 (2.3GHz)
• 20 GB available hard drive space
• 2 GB available RAM or more
• 512 MB video card or more
• CD-ROM drive for installation
• USB

Calibration function:

• Yes

Measurement function:

• Yes

Unit dimensions:

• 10.5 cm (H) x 3.2 cm (D)

Unit Weight:

• 125

DinoCapture software for Dino-Lite microscopes

With the DinoCapture software, you can use your Dino-Lite microscope particularly efficiently on a PC. The software has been developed for both new users and experienced professionals and supports the entire microscopy workflow – from live image display and image capture to structured documentation.

The integrated measurement and documentation functions are particularly practical. Depending on the Dino-Lite model, you can measure distances, areas, angles or radii, annotate images and archive measurement results clearly. This makes DinoCapture ideal for quality control, laboratories, industry, electronics testing, research and education. DinoCapture 3.0 offers improved data organisation: practical features such as favourites, an advanced search function, custom file naming and nested folder structures. This allows images, videos and project data to be managed clearly and retrieved more quickly.

In combination with a Dino-Lite digital microscope, DinoCapture supports a structured workflow: view the sample, capture an image, measure, document and share – all within a user-friendly software environment.
