Dino-Lite AM7013MZT

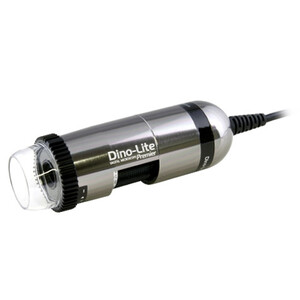

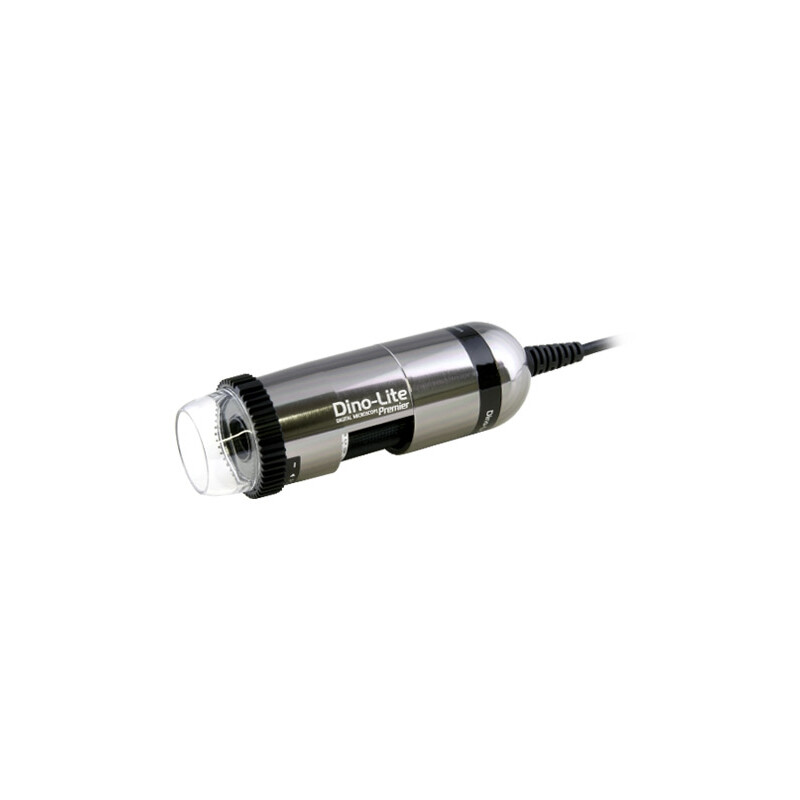

The Dino-Lite Premier AM7013MZT4 digital handheld microscope allows you to see at 430x~470x magnifications with the benefits of adjustable polarisation. It has a five-megapixel sensor that allows you to view great detail and capture large images at 2592 x 1944. This model is ideal for situations that require over 400x magnification with polarisation yet need the large details of a five-megapixel sensor.
The polarisation ability allows you to see fine details of surfaces such as semi-transparent materials like jewellery, skin, glass or plastic. It is also ideal for examining highly reflective materials such as metals or solder joints. The polariser on the AM7013MZT4 can be freely adjusted, allowing for different amounts of polarisation for effective examination. The Dino-Lite Premier AM7013MZT4 is a USB 2.0 device allowing you to digitally examine objects on your computer. It comes with DinoCapture 2.0 software that allows you to take pictures, record video, and annotate on images. Certain models such as this also feature measurement and calibration tools. The AM7013MZT4 is a great tool for high magnification imaging that requires polarisation.
Specifications
Interface: USB 2.0
Product Resolution: 5M pixels (MJPEG codec may be required to run at 2592 x 1944 resolutions)
Magnification Rate: 430x~470x
Sensor: Colour CMOS
Frame rate: Up to 30 fps
Save formats:
- Image: DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM; DinoXcope: PNG, JPEG
- Movie: DinoCapture2.0: WMV, FLV, SWF; DinoXcope: MOV
Microtouch: Touch-sensitive trigger on the microscope for taking pictures
Lighting: 8 white LED lights switched on/off by software
Polariser: Yes
Measurement function: Yes
Calibration function: Yes
Operating system supported: Windows XP/7/8/10/11, macOS 10.14 or later
Unit weight: 140 g
Unit Dimensions: 10.5cm (H) x 3.2cm (D)
DinoCapture software for Dino-Lite microscopes
With the DinoCapture software, you can use your Dino-Lite microscope particularly efficiently on a PC. The software has been developed for both new users and experienced professionals and supports the entire microscopy workflow – from live image display and image capture to structured documentation.
The integrated measurement and documentation functions are particularly practical. Depending on the Dino-Lite model, you can measure distances, areas, angles or radii, annotate images and archive measurement results clearly. This makes DinoCapture ideal for quality control, laboratories, industry, electronics testing, research and education. DinoCapture 3.0 offers improved data organisation: practical features such as favourites, an advanced search function, custom file naming and nested folder structures. This allows images, videos and project data to be managed clearly and retrieved more quickly.
In combination with a Dino-Lite digital microscope, DinoCapture supports a structured workflow: view the sample, capture an image, measure, document and share – all within a user-friendly software environment.
