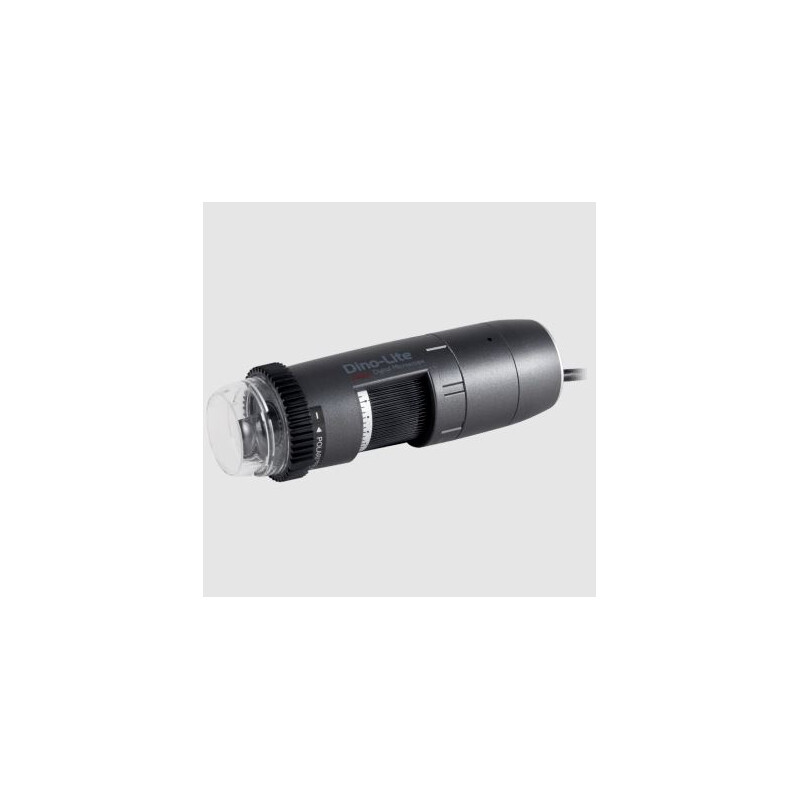

Dino-Lite AM4515ZTL
The Dino-Lite Edge models offer superior image quality and excellent flexibility thanks to their customisable cap design. The integrated, adjustable polarisation filter reduces glare and reflection on shiny objects.
With the integrated automatic magnification reading, measurements can be carried out quickly and easily. The microscope comes with different caps, making the Dino-Lite Edge the perfect choice for any professional application. Together with a maximum working distance of up to 23 cm, the Dino-Lite AM4515ZTL is the right choice for work where fast image reproduction is necessary, such as on circuit boards or the smallest objects.
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 10-140x
- Macro zoom: No
- Working distance: Long
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 1.3 megapixels (1280x1024)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and up
- Included software DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV
- Imaging standards: DirectShow, UVC
- Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
- Housing material: Composite/plastic housing
- Magnification lock: Yes
- Dimensions: 10.5 cm (L) x 3.2 cm (D)
- Weight: 105 g
- Cable length: 1.8m
Features
- Special feature: Automatic Magnification Reading (AMR)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: No
Information
- Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side light cap
