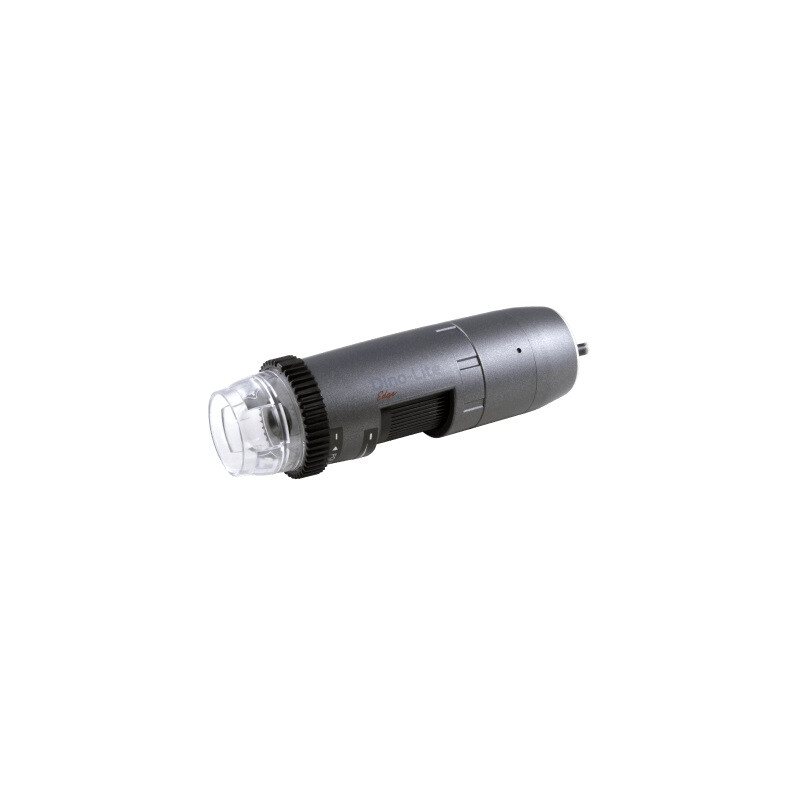

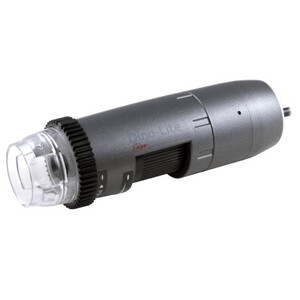

Dino-Lite AM4515ZT4
With up to 470x high-resolution magnification optics, this Dino-Lite model can show details down to 5 micrometres (µm). It also has a larger working distance at high magnification, which makes it easier to view and move very small objects under the microscope. The built-in, continuously adjustable polarisation filter makes the AM4515ZT4 the perfect choice for working with highly reflective surfaces such as jewellery, plastics and metals.
This unique feature makes the Dino-Lite AM4515ZT4 an excellent inspection tool for biomedical and scientific research, material analysis, electronic component inspection and similar applications that require high magnification, polariser versatility and mobility. The Dino-Lite AM4515ZT4 comes with the bundled user-friendly DinoCapture 2.0 software. This model includes features such as automatic magnification reading (AMR), calibration, measurement, image capture and annotation, and video recording. Although the AM4515ZT4 model can be handheld, a precision tripod is recommended. The Dino-Lite RK-10A, for example, is an excellent accessory; it is a robust and stable tripod made of indestructible stainless steel and lightweight aluminium, offering very precise fine focus adjustment.
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: No
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 400-470x
- Macro zoom: No
- Working distance: Standard
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 1.3 megapixels (1280x1024)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and above
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV
- Imaging standards: DirectShow, UVC
- Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
- Housing material: Composite/plastic housing
- Dimensions: 10.5 cm (L) x 3.2 cm (D)
- Weight: 105 g
- Cable length: 1.8m
Features
- Special feature: Automatic Magnification Reading (AMR)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: No
Information
- Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-E- Extension cap
