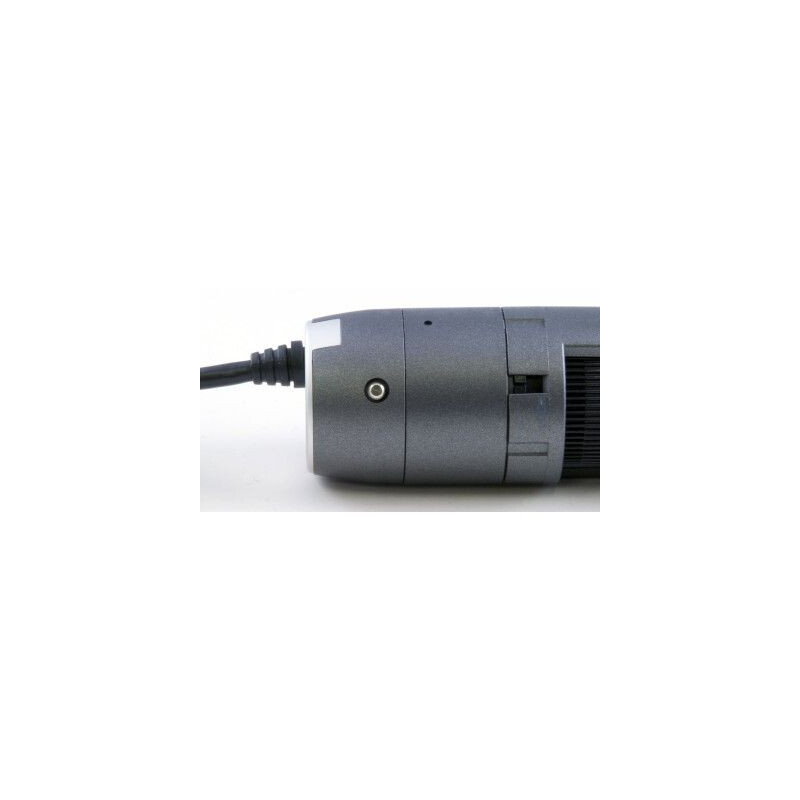

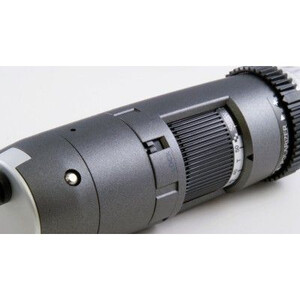

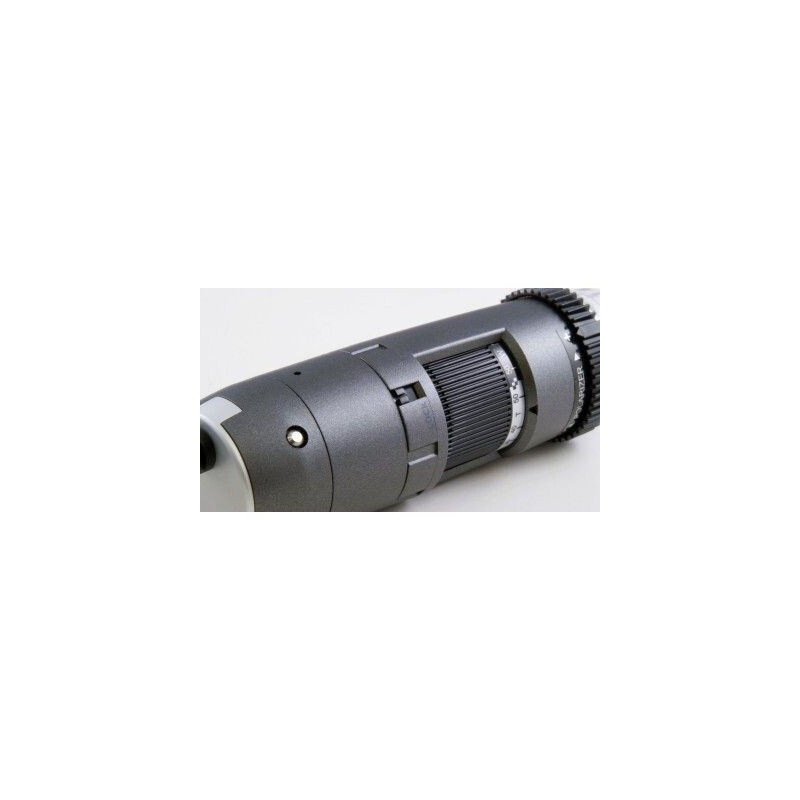

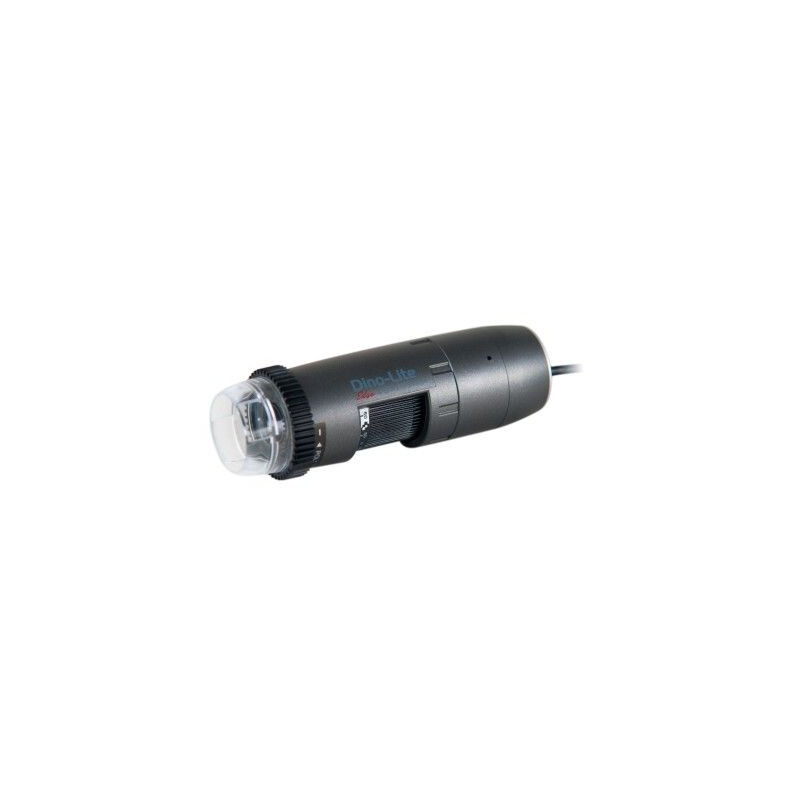

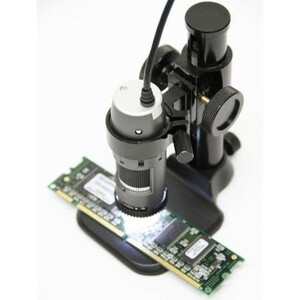

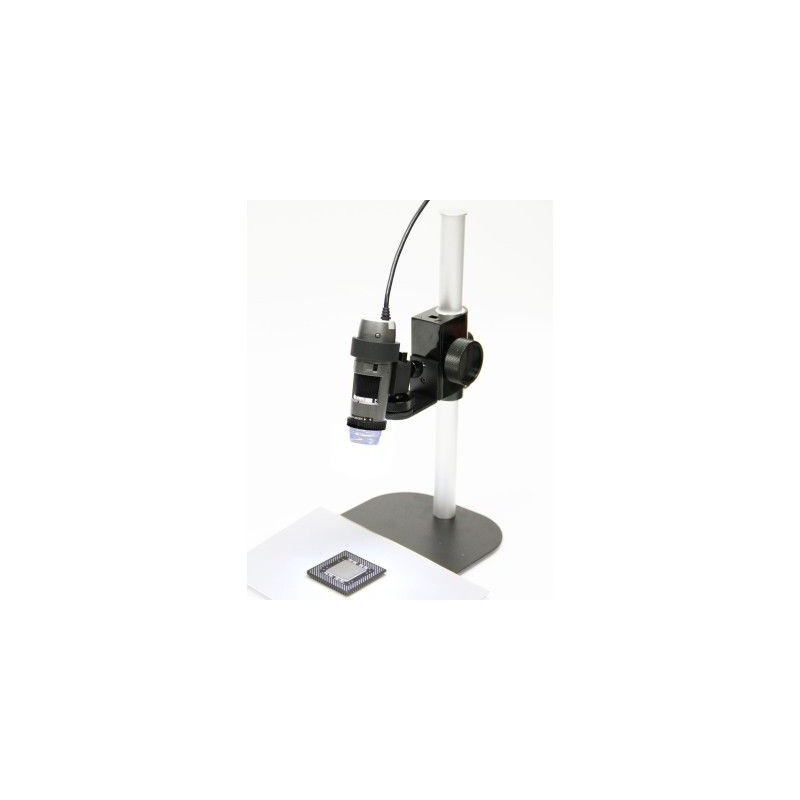

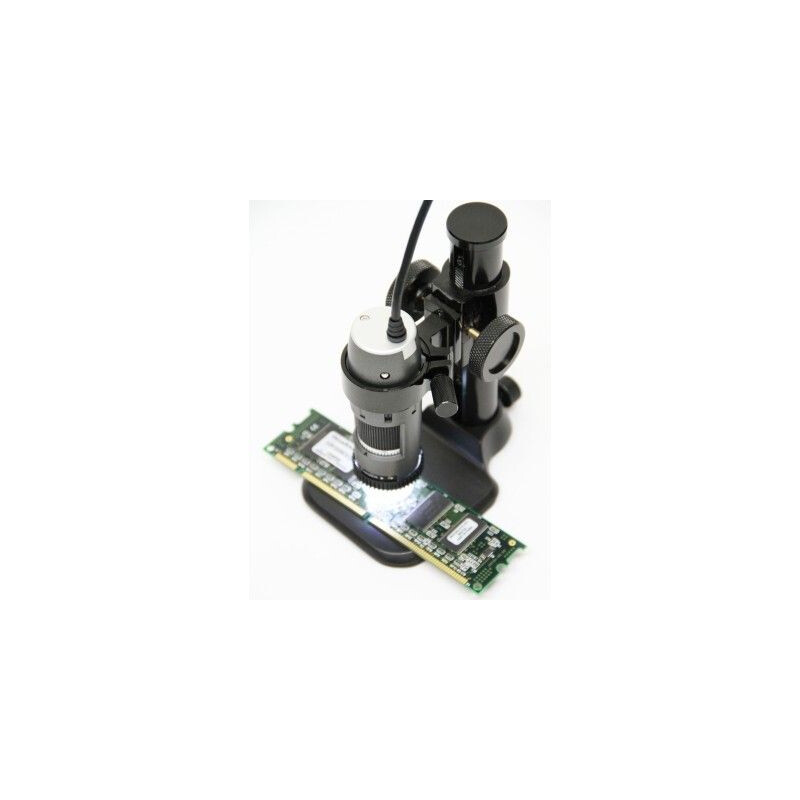

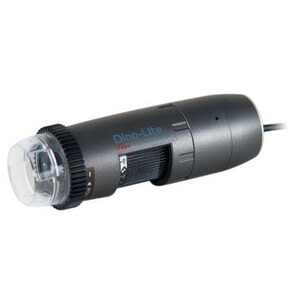

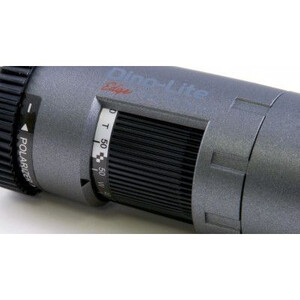

Dino-Lite AM4115ZTW
The Dino-Lite Edge models offer superior image quality and excellent flexibility thanks to their customisable cap design. The integrated, adjustable polarisation filter reduces glare and reflection on shiny objects.
This model can work with 2 magnification rates at the same working distance, making this model ideal for macro applications with a larger image field and a magnification function for detecting small details. The microscope comes with different caps, making the Dino-Lite Edge the perfect choice for any professional application.
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 10-50x
- Macro zoom: No
- Working distance: Standard
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 1.3 megapixels (1280x1024)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and up
- Included software DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV
- Imaging standards: DirectShow, UVC
- Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
- Housing material: Composite/plastic housing
- Magnification lock: Yes
- Dimensions: 10.5 cm (L) x 3.2 cm (D)
- Weight: 105 g
- Cable length: 1.8m
Features
- Special feature: Macro zoom
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: No
Information
- Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side light cap
