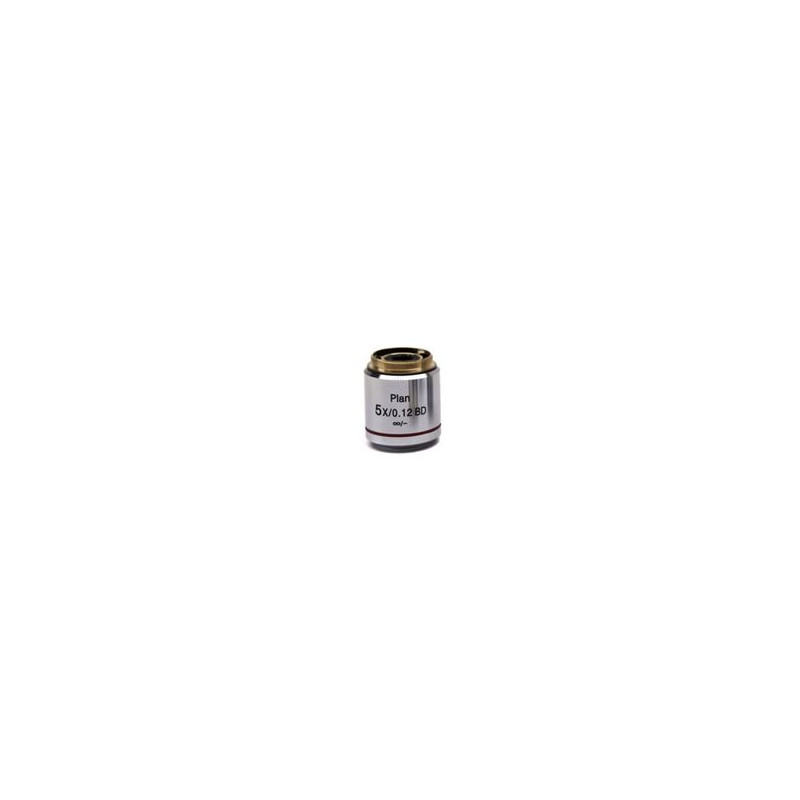

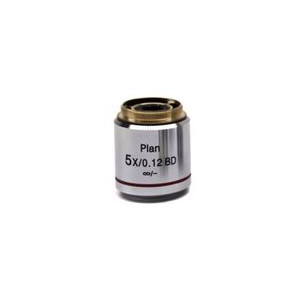

M-1109, IOS LWD W-PLAN MET BD microscope objective, 5X/0.12

Model: IOS MET Planachromatic for Darkfield

Description: Objectives for brightfield and incident darkfield observation

• Magnification / Numerical Aperture

• 5X / 0.12 (M-1109)

• 10X / 0.25 (M-1110)

• 20X / 0.40 (M-1111)

• 40X / 0.60 (M-1112)

• 50X / 0.75 (M-1113)

• 100X / 0.80 (M-1114)

• Optical Correction MET Planachromatic.
• Long working distance
• Flat field correction for 24 mm Field Number
• planachromatic spherical and chromatic corrections.
• Mechanical tube length IOS (infinity-corrected tube length)
• Cover Glass Thickness 0 mm (no cover glass)
• Working Distance • 5X W.D. 12 mm

• 10X W.D. 10 mm

• 20X W.D. 4.3 mm

• 40X W.D. 2.9 mm

• 50X W.D. 0.32 mm

• 100X W.D. 2 mm

• Screw Thread 25mm thread
• Parfocal Distance 45 mm
