UPLXAPO60XO
Extended compensated apochromats
(N5702300)
The UPLXAPO apochromatic lenses with extended compensation feature a high numerical aperture (NA), a wide, homogeneous and distortion-free image, and extended compensation of chromatic aberrations from 400 nm to 1000 nm. Thanks to these features, high-resolution, bright images can be captured for a wide range of applications, from brightfield/fluorescence microscopy to confocal/super-resolution microscopy.

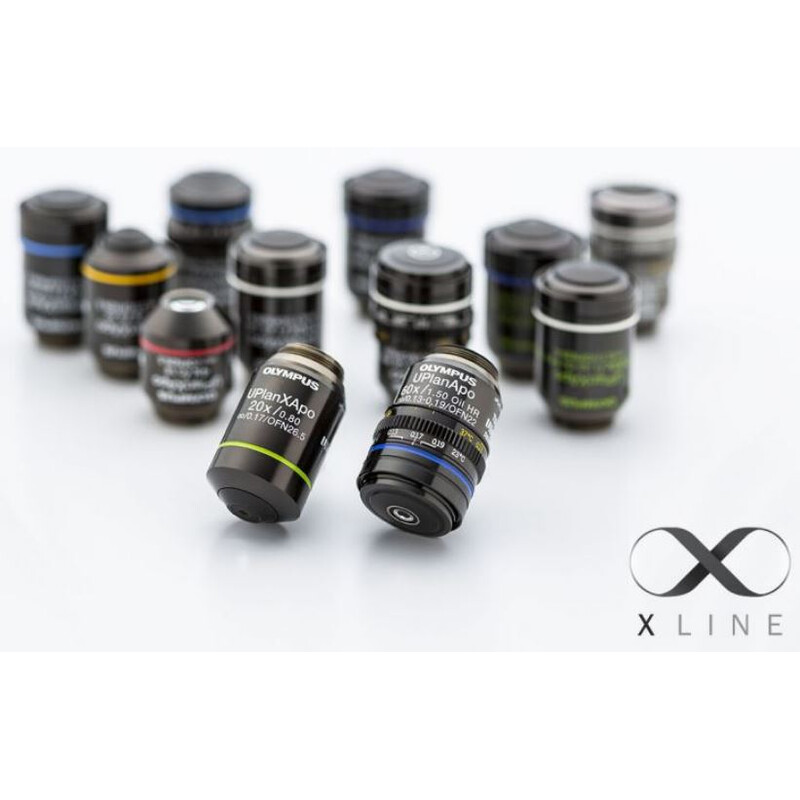

- X Line
- Magnification 60x
- Numerical aperture (NA) 1.42
- Working distance (A.D.) 0.15 mm
- Objective field number 26.5 mm
- Cover glass thickness 0.17 mm
- Immersion medium: oil
- Cushioned: Yes
- Correction of chromatic aberration
- Advanced apochromat (XAPO)

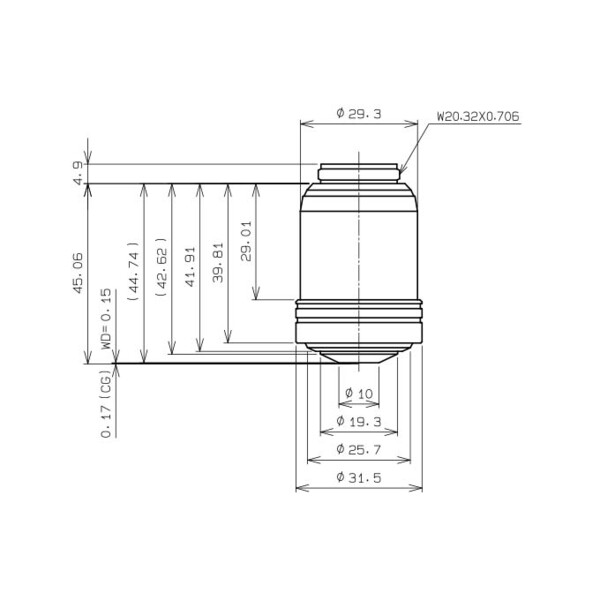

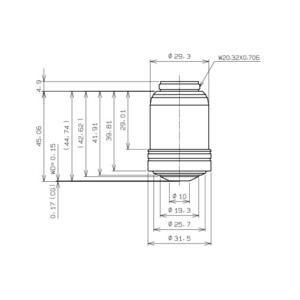

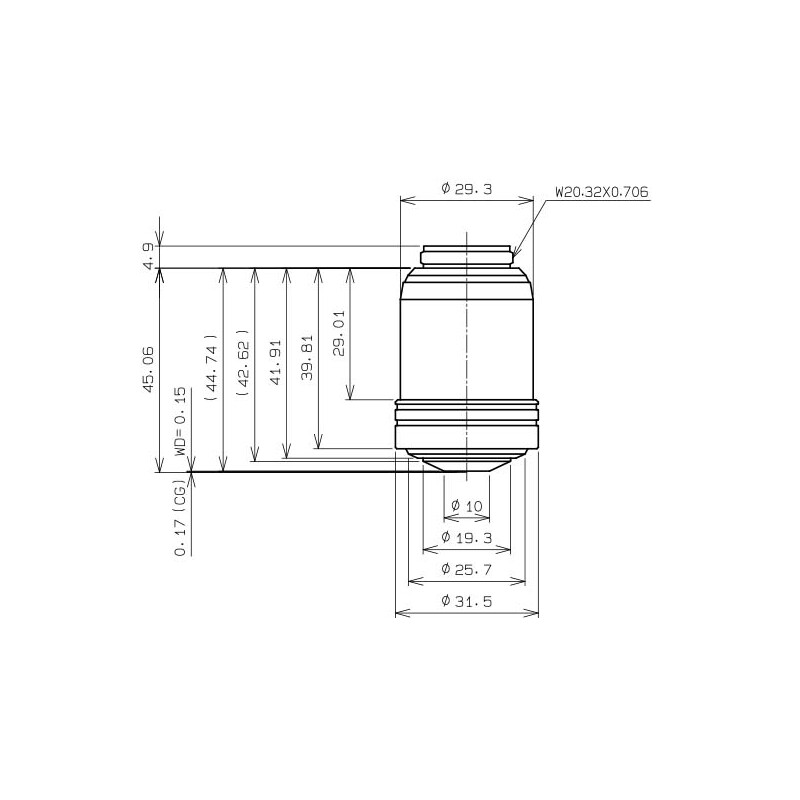

- Parfocal distance 45 mm
- Position of rear focal plane (BFP) -19.1 mm
- Type of screw thread: W20.32×0.706 (RMS)
- Bright field (transmitted light): Excellent
- DIC (transmitted light): Excellent
- Polarization: Good
- Fluorescence (B, G excitation): Excellent
- UV fluorescence (at 365 nm): Excellent
- Autofocus: Yes
