CACHN10xIPC/0.25 Objective
The UPLFLN-IPC, CACHN-IPC and LCACHN-IPC objectives are used in combination with the pre-centre phase contrast slider, CKX3-SLP. As for these objectives, no centring adjustment is necessary when changing the objective magnification in phase contrast observation.

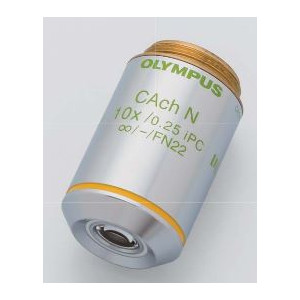

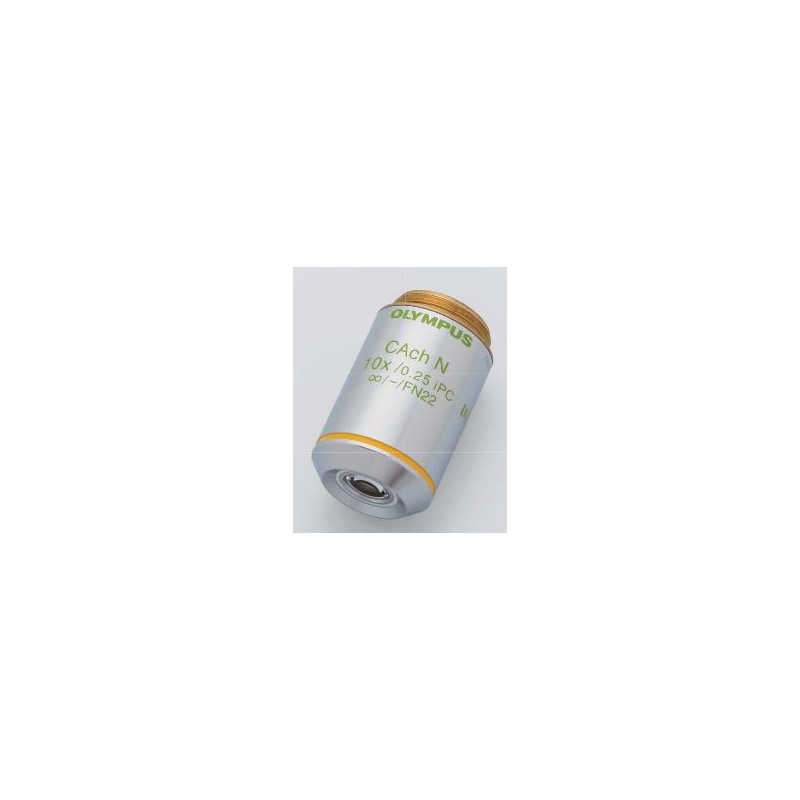

CACHN10xIPC/0.25 Plan Achromat C objective with integrated phase contrast
- Achromatic phase contrast objective (pre-centred) with 10x magnification
- Numerical aperture: 0.25
- Working distance: 8.80 mm,
- maximum field of view 2.20 mm (FN 22)
- Suitable for all cover glass thicknesses,
- suitable for IPC (integrated phase contrast) in combination with the CKX3-SLP condenser and IVC (inversion contrast) with CKX3-SLPIC ring aperture
