More about the series Z-Serie...

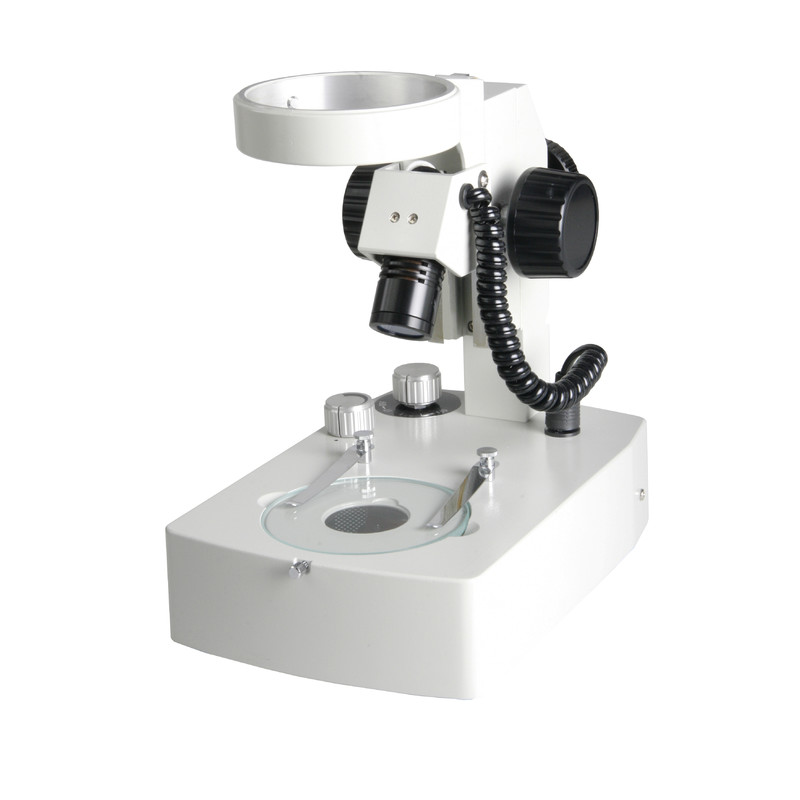

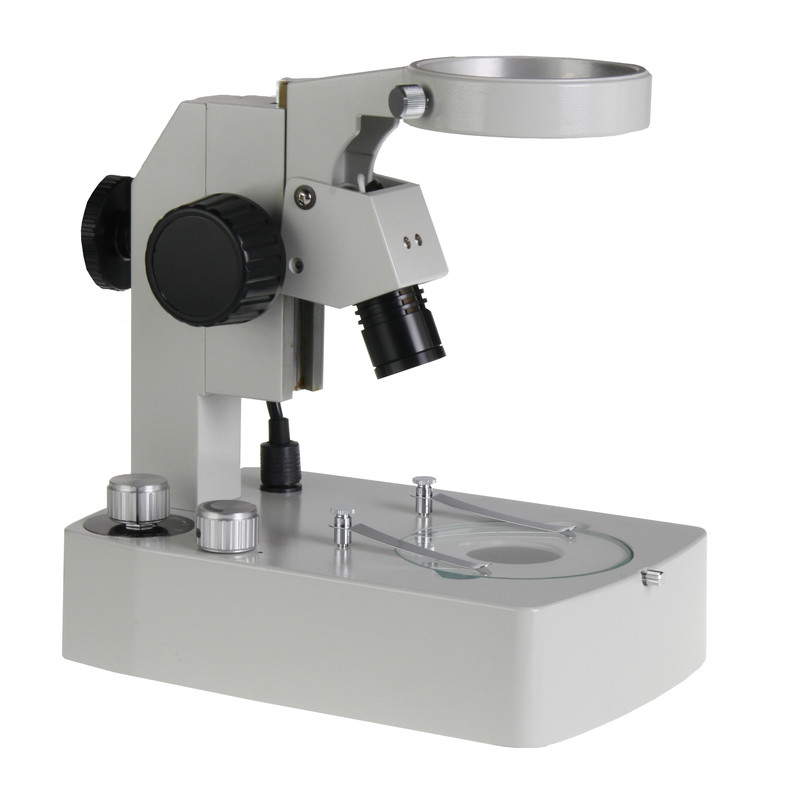

H-stand:
The tripod consists of:
- The base is 60 mm high with an extendable column
- glass object plate
- black and white object plate
- 2 object clamps
Height adjustment:
- Microscope holder is permanently mounted on the extendable column
lighting:
- Halogen lighting for reflected and transmitted light 6 volts, 10 watts
- Incident light illumination with frosted blue filter
- Transmitted light illumination with diffuse milky white filter
- Both lighting systems can be switched on separately and simultaneously
- The light intensity is continuously adjustable
- Built-in transformer 230 volts
Tripod dimensions:
- 240 mm long
- 160 mm wide
- 240 - 290 mm high
Maximum object height for:
- Stereo zoom head E-series 65 mm
- Stereo zoom head Z series 95 mm
Suitable for Z-Serie and E-Serie; not suitable for EE.1521
