Optika B-190TBPL+ – Digital Microscope with Motorized 3-Step Focus & 5MP Camera
The Optika B-190TBPL+ combines modern digital technology with precise microscopy. It is the first microscope in its class with fully electronic three-step focusing – ideal for education, routine work, and demanding observations. The focus type is selected via a push button and displayed using LEDs.

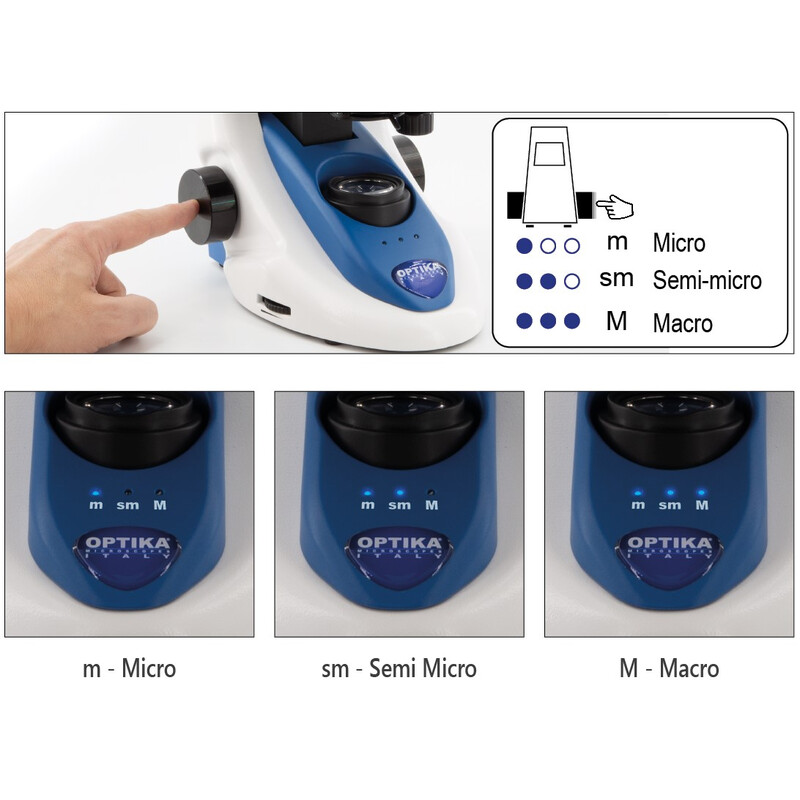

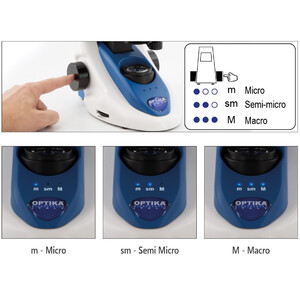

Focus levels at a glance:
- Macro: 250 μm per step (7500 mm per knob rotation) – for coarse adjustments
- Semi-Micro: 8 μm per step (240 mm/rotation) – for precise alignment
- Micro: 1 μm per step (30 mm/rotation) – for ultra-fine focus corrections

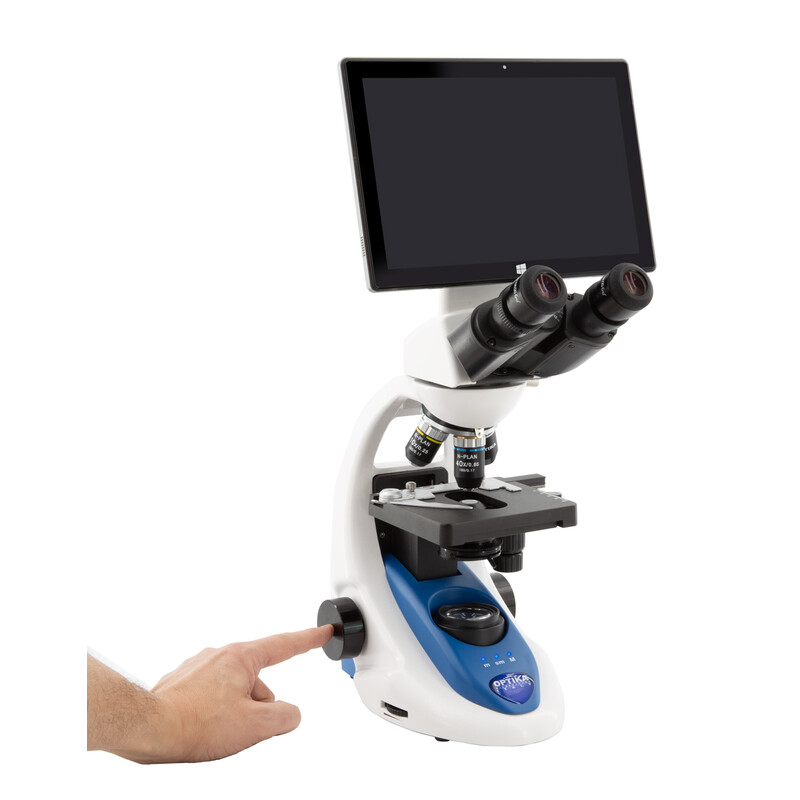

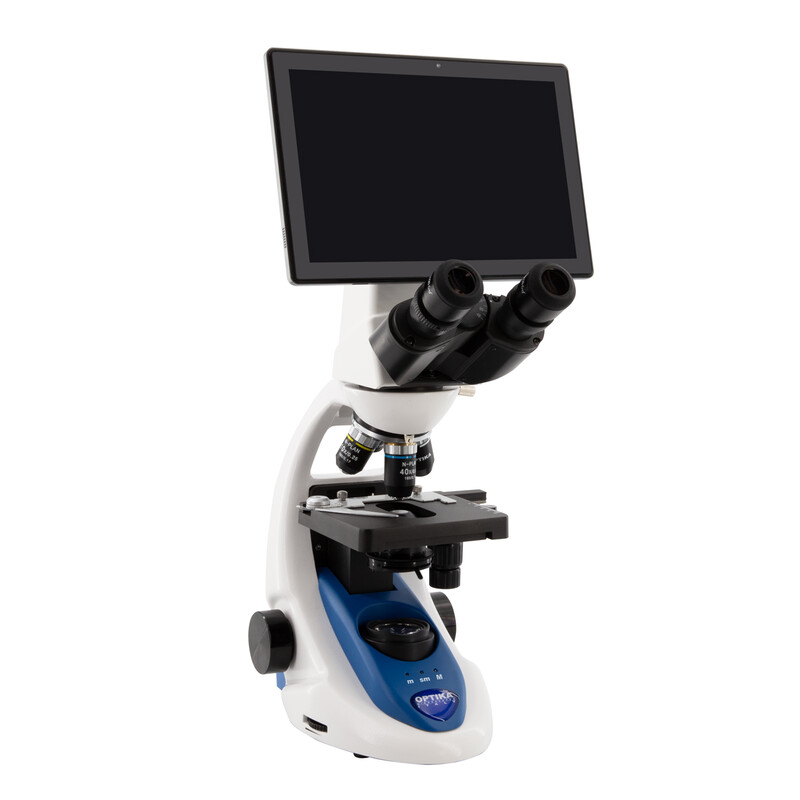

The rotatable binocular head (30° inclined) is equipped with an integrated 5 MP camera. The detachable Windows tablet allows for immediate image display, storage, and sharing. PLAN objectives deliver brilliant image quality up to 1000x magnification.
In daily use, the automatic stage retraction function facilitates immersion oil application and slide changes. The B-190TBPL+ stands for digital convenience and reliable precision.
