Microscopes > Digital microscopes > Optika > IM-300 > Optika Inverted microscope IM-300LD4D, digital, FL, infinity, plan 100x-400x, 10x/22, AL/DL, LED 400x magnification, IOS LWD PLAN F, 4 empty filter slots
Product no.: 82652

Inverted microscope IM-300LD4D, digital, FL, infinity, plan 100x-400x, 10x/22, AL/DL, LED 400x magnification, IOS LWD PLAN F, 4 empty filter slots

RRP: $ 15,100.00 Our price:
$ 13,600.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time

Product description

More about the series IM-300...

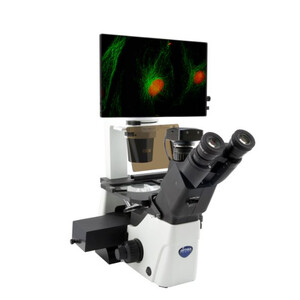

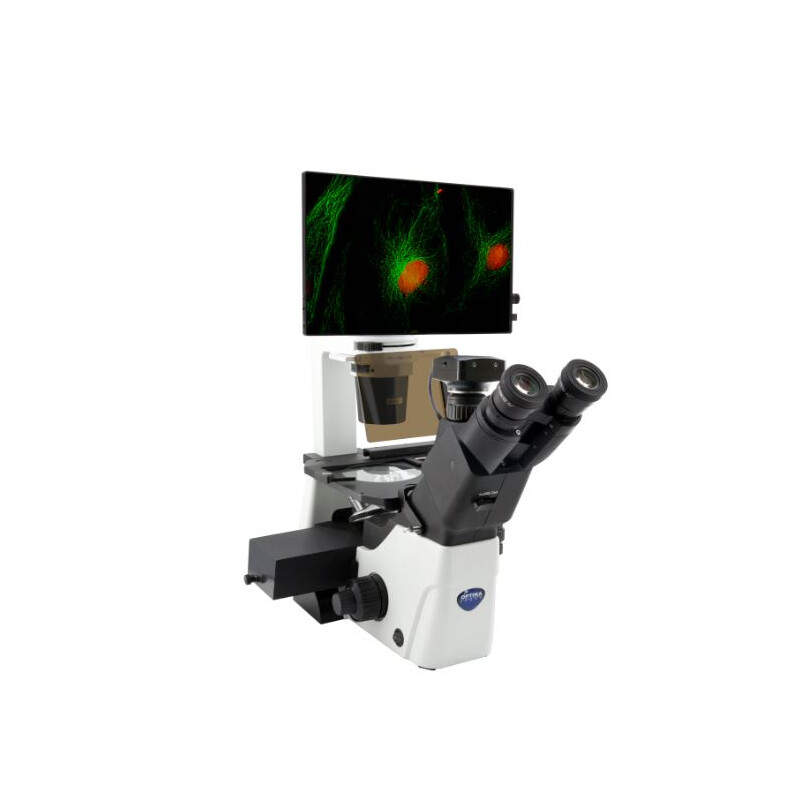

The Optika IM‑300LD4D is a modern fluorescence microscope that has been specially developed for professional applications in research, diagnostics and teaching. It impresses with its modular design, integrated digitisation and powerful LED fluorescence illumination.

Optics and mechanics
The ergonomic trinocular tube (45° inclined, 50–75 mm interpupillary distance) ensures comfortable working. High-quality wide-field eyepieces (WF10x/22) with dioptre adjustment and the ball-bearing 5-position objective turret enable precise observations. The three LWD U-PLAN F lenses supplied are anti-fungal coated and deliver brilliant images with a large working distance.

Stage and condenser
A generous microscope stage (250 × 290 mm) with glass insert and metal holder provides space for slides and petri dishes. The LWD condenser (NA 0.30, working distance 72 mm) allows flexible use of a wide variety of samples.

LED fluorescence
The fluorescence unit with four LED filter cubes has a modular design and offers significantly higher light output than conventional systems. Advantages: immediately ready for use, no lamp replacement, no warm-up time.

Digital equipment
The scope of delivery includes an integrated micro PC with a 15.6" 4K touchscreen, a 6 MP camera and Optika ProView software. This allows image capture, documentation and analysis directly on the device – including a wireless mouse and keyboard.

  • 4-fold LED filter cube system
  • Up to 35% more light intensity 15.6" 4K touchscreen PC & 6 MP camera
  • Large microscope stage
  • No lamp replacement
  • Anti-mould objectives & long-lasting LED technology

Specifications

Optics


Eyepiece
10 (10x/22, plan)
Lens type
Plan, achromatic
Lamp type
LED (X-LED8; 8W LED, 6300K/High efficiency LED, 3.5W)
Condensor
LWD, N.A. 0.3, W.D. 72mm
Lighting
Incident light and transmitted light
Magnification
400 (100, 200, 400)
Optical system
infinity
Objective 1
IOS LWD U-PLAN F 10X/0.3, W.D. 7.11mm
Objective 2
IOS LWD U-PLAN F 20X/0.45, W.D. 5.91mm
Objective 3
IOS LWD U-PLAN F 40X/0.65, W.D. 1.61mm

Capacity


Temperature of color (K)
6300 K
brightfield
yes
Fluorescence
yes
Contrast methods
Fluorescence

Mechanics


Type of build
Trinocular
Focusing
Coarse and fine movement (0.002mm graduation, with locking function as object protection)
Viewing posture (°)
45° angled eyepiece
Specimen stage
Specimen stage (250 x 230 mm)

Special features


Centering stage
-
Wide-angle eyepiece
yes (10x/22, plan)

General


Colour
grey/black
Height (mm)
625
Length (mm)
540
Width (mm)
365
Weight (g)
13500
Series
IM-300

Field of application


Medicine
yes
Biology
yes

Area of application


University
yes
Biochemistry
yes
Central laboratories
yes
Marine Biology
yes

Product safety

Manufacturer: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
