More about the series H-600...

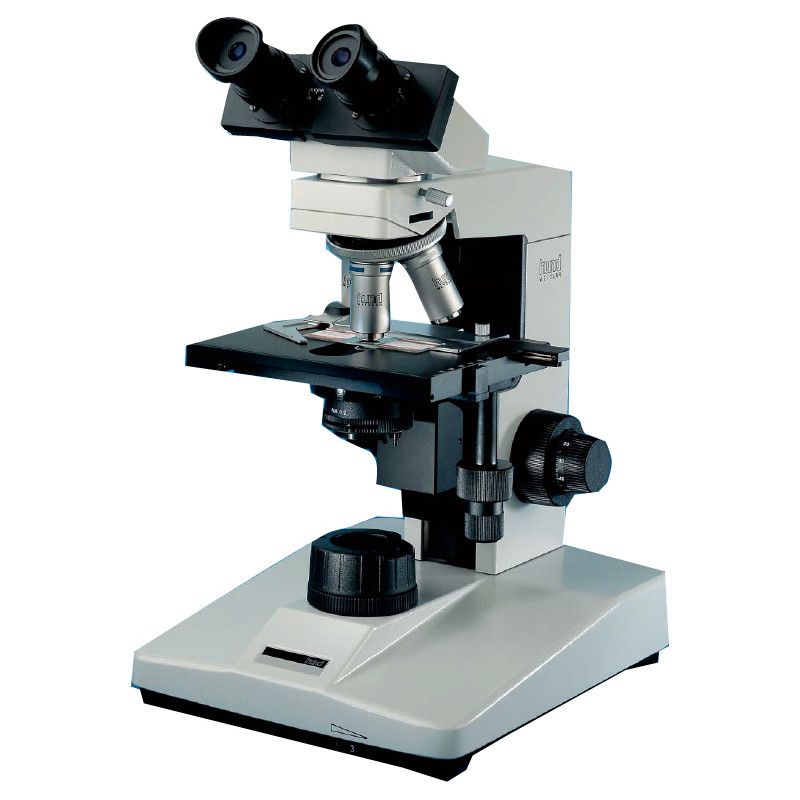

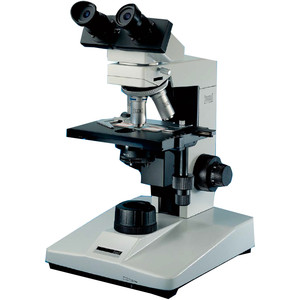

H 600 Wilo-Brau
The H 600 microscope is extremely versatile thanks to its modular design. All common microscopic examination methods such as bright field, phase contrast, dark field and polarization can be carried out by simply exchanging components. Modules for reflected light and fluorescence microscopy as well as two different trinocular photo/video tubes are also available.
Specification:
- Binocular microscope with extremely stable cast iron stand
- Equipped with coarse and fine adjustment
- Built-in halogen lamp 12 V/30 W with stepless brightness control
- Cross table 160 x 130 mm.
- Condenser with height adjustment for precise Köhler
- with aperture diaphragm and filter holder for excellent illumination of the image field at all magnification levels
- Illumination connector with adjustable light field diaphragm
- 4 or 5-position objective turret.
Scope of delivery:
- 2 eyepiece cups
- Filter slide II
- Conversion filter and VG 9 filter
- 2 centring keys
- Replacement lamp
- 2 replacement fuses
- Power cable
- Operating instructions
- dust cover
The H 600 BS is particularly suitable for examining activated sludge from sewage treatment plants.
Bright field, phase contrast and dark field can be used as contrast methods.
Details
- Achro 10 / 0.25 objective 019.9052.000
- Plan Ph 3 40 / 0.65 lens with spring-loaded specimen protection 019.9068.000
- Plan Ph 4 100 / 1.25 oil lens with spring-loaded specimen guard 019.9069.000
- Large combination condenser NA 1.2 (HF, DF, PH 3 / 4)
