Microscopes > Upright microscopes > Dark field microscopes > Euromex > iScope > Euromex Microscope iScope IS.1153-EPL/DF, trino, DF, DIN, e-plan, 40x-1000x, 10x/20mm, iCare, LED
Product no.: 51748

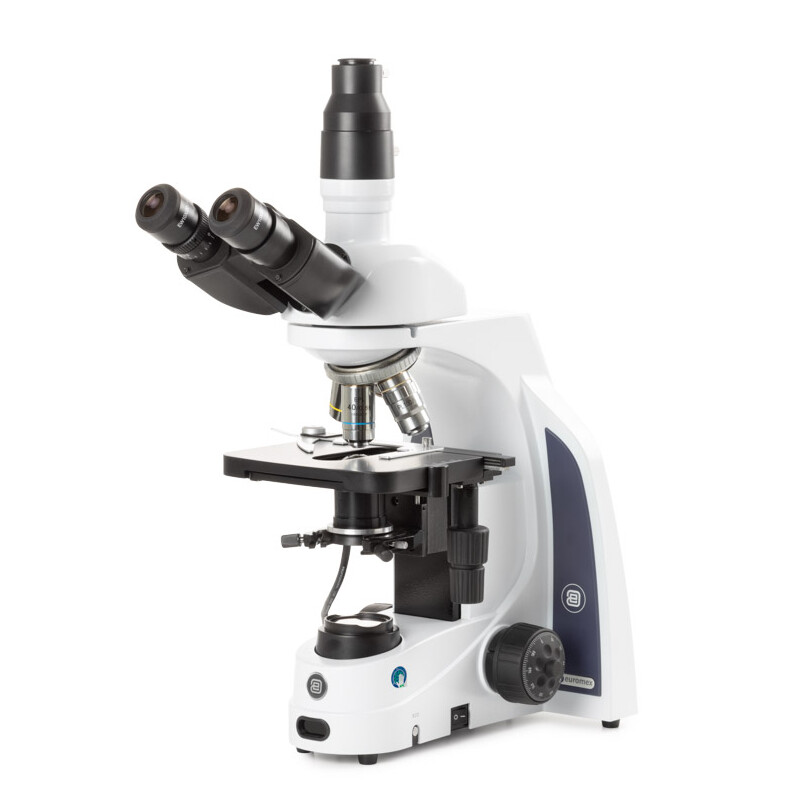

Microscope iScope IS.1153-EPL/DF, trino, DF, DIN, e-plan, 40x-1000x, 10x/20mm, iCare, LED

$ 2,540.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
This product is available in the following variants:
supplier product number Price
IS.1153-EPL/DF, trino, DIN $ 2,540.00
IS.1153-PLi/DF, trino, infinity $ 3,200.00

Product description

More about the series iScope...

iScope for dark field iS.1153-EPL/DF

  • Eyepieces EWF10x/20mm, Ø30 mm
  • Head Trinocular with Siedentopf 30° inclined tubes. Adjustable eye relief 48 - 75 mm with diopter adjustment on one eyepiece
  • Revolving head Inverted objective turret for 5 lenses
  • Objectives EPlan EPL 4x/0.10, EPL 10x/0.25, EPL S40x/0.65, EPLi S100x/1.25 oil immersion with iris diaphragm, DIN objectives. All optical parts are treated against fungi.
  • Table 156 x 138 mm microscope stage with rack and pinion
  • Condenser Karioid dark field condenser with 5W LED+ Abbe N.A. 1.25 Bright field condenser - without Köhler LED
  • Focus control Coaxial coarse and fine adjustments, 2 µm precise, 20 mm travel. Click-stop to prevent damage to lenses and specimens. Friction adjustment
  • Lighting and power supply Adjustable 3W NeoLED™ transmitted light with internal 85V-240V power supply
  • iCare sensor The unique iCare sensor was developed to prevent unnecessary energy loss. The microscope lighting switches off automatically when the user leaves their seat.
  • CSS - Cable Storage System The ISCOPE's cable storage system allows the user to conveniently insert the power cable into the rear of the instrument, making storage easy.

Specifications

Optics


Magnification
40 - 1000
Lighting
Transmitted light
Lamp type
LED
infinity corrected
no
Eyepiece
EWF 10x / 20 mm (Ø 30mm)
Number of objectives
4
Colour correction
achromatic
Field curvature
Semi-planachromatic
Objective 1
4x / 0.10 (E-Plan EPL)
Objective 2
10x / 0.25 (E-Plan EPL)
Objective 3
S40x / 0.65 (E-Plan EPL)
Objective 4
S100x / 1.25 (E-Plan EPL with iris diaphragm)
Suspension
yes
Immersion lens
yes
Condensor
Carioidcondenser with 5W LED
Optical system
DIN (160mm)

Capacity


Dark field
yes
brightfield
yes
Contrast methods
Dark field

Mechanics


Type of build
Trinocular
Focusing
Coarse and fine movement (200 x 1µm)
Revolver
5
Specimen stage
Cross table (140 x 160mm (x/y 79 x 52mm))

General


Series
iScope
Weight (g)
9000
Width (mm)
210
Length (mm)
255
Height (mm)
407

Contrast methods


Dark field
yes

Field of application


Medicine
yes

Area of application


Naturopathy
yes

Miscellaneous


supplier product number
IS.1153-EPL/DF, trino, DIN

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
