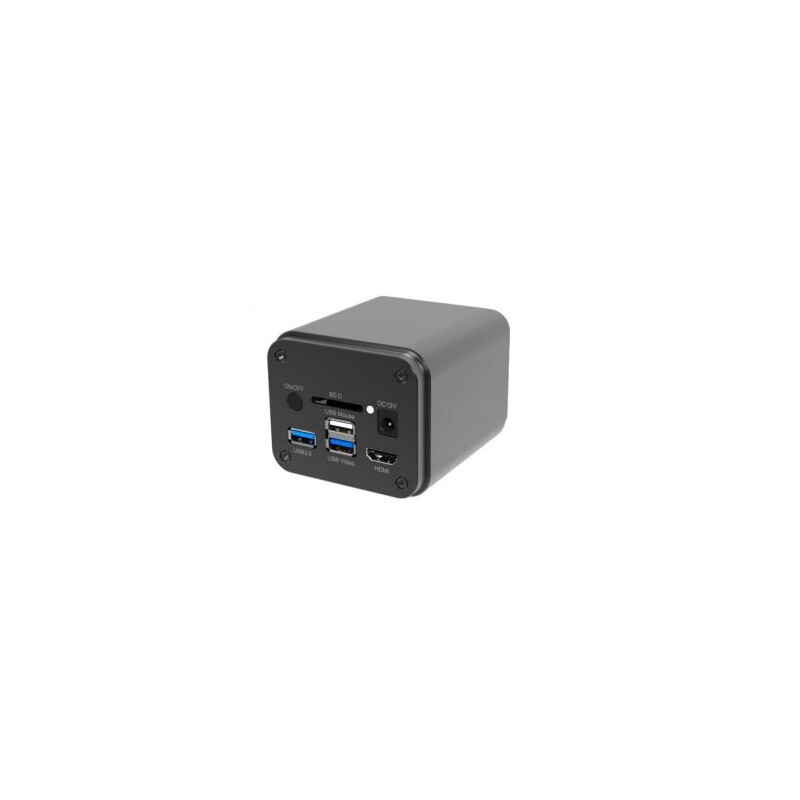

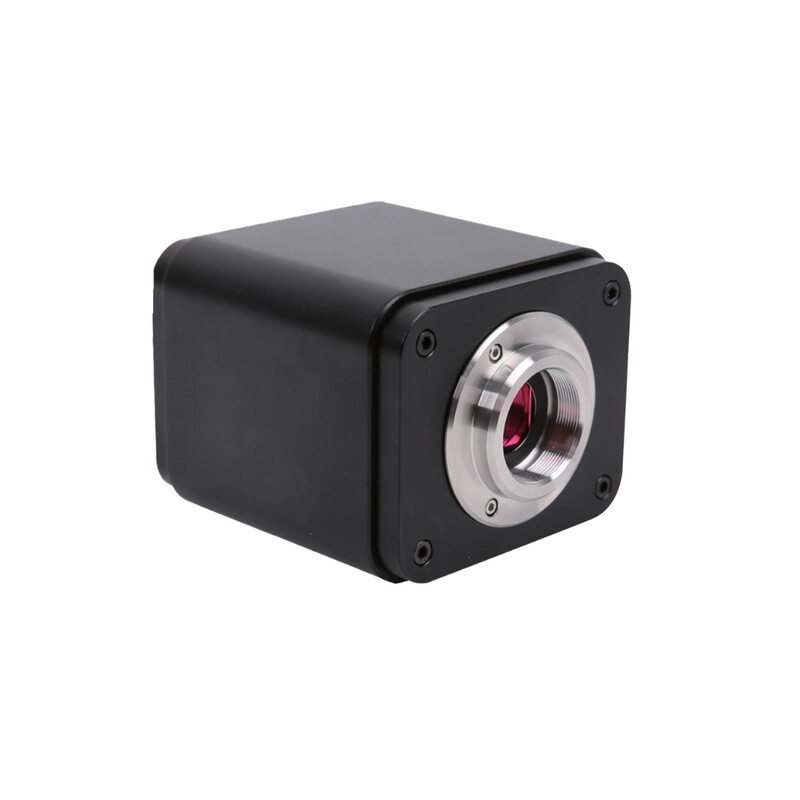

ToupTek X5FCAM4K8MPA 4K Autofocus Microscope Camera
The ToupTek X5FCAM4K8MPA is a high-performance 8 MP 4K c-mount autofocus camera designed for professional microscopy, laboratory applications and industrial image analysis. Equipped with a Sony IMX678(C) 1/1.8" Sony Starvis 2 CMOS sensor, it delivers high-resolution images at 3840 × 2160 Pixels at up to 60 fps and is ideal for detailed live observations, precise documentation and demanding inspection tasks.
Thanks to its HDMI and USB 3.0 interfaces, the camera can be used flexibly: directly on a monitor for stand-alone applications or connected to a computer for convenient image capture, control and analysis. The integrated XCamView interface enables live preview, image adjustment, measurement functions, still image capture and video recording directly via an HDMI screen and a USB mouse.
A particular advantage of the X5FCAM4K8MPA microscope camera is its integrated autofocus system. It supports various focus modes with an adjustable focus range and, in combination with depth synthesis, can be used to achieve an improved depth of field at higher magnifications. This makes the camera particularly suitable for biological microscopy, Stereo microscopy, materials testing, quality control and industrial inspection.
The camera offers powerful image processing functions such as 3D noise reduction, sharpening, ROI white balance, real-time depth synthesis, WDR output, image comparison, stitching and automatic measurement functions. It also supports local storage of images and videos, as well as working with RAW image data. ToupView and ToupLite are available for PC applications.
With its c-mount connector, compact design and high 4K frame rate, the ToupTek X5FCAM4K8MPA is a reliable solution for users seeking a precise, responsive and versatile microscope camera for research, documentation, analysis and quality assurance.
Technical highlights
- Model: ToupTek X5FCAM4K8MPA
- Camera type: 4K autofocus microscope camera
- Sensor: Sony IMX678(C), Sony Starvis 2 CMOS
- Sensor size: 1/1.8" / 7.68 × 4.32 mm
- Resolution: 8 MP
- Video output: up to 3840 × 2160 at 60 fps

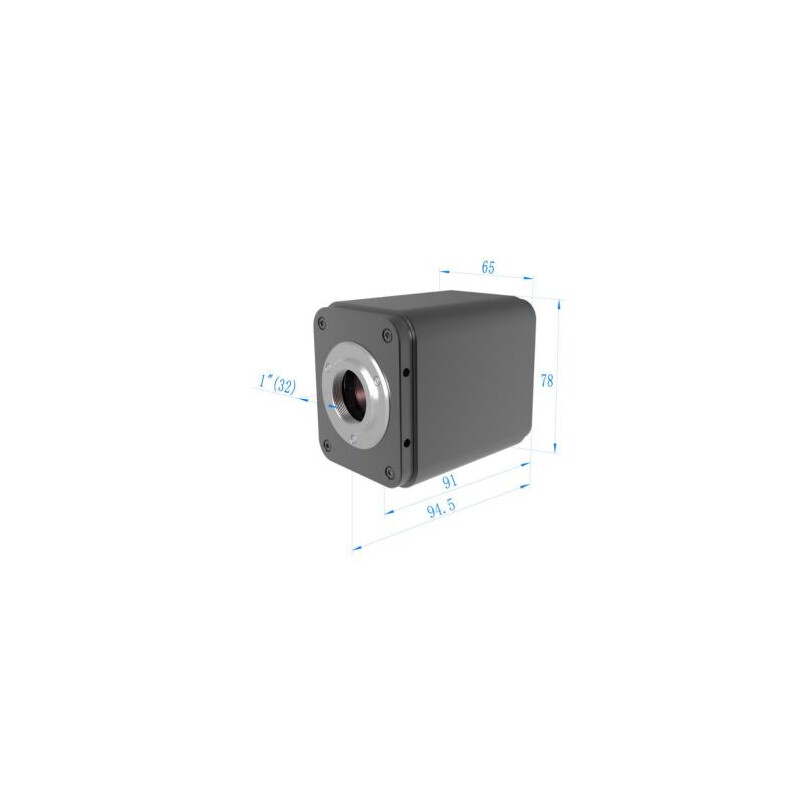

- Lens mount: c-mount
- Interfaces: HDMI, USB 3.0
- Features: Autofocus, depth synthesis, real-time image processing, measurement functions, image and video capture
- Software: XCamView, ToupView, ToupLite
Contents
- X5FCAM4K8MPA camera
- Power pack: Input AC 100–240 V, 50 Hz/60 Hz; Output DC 12 V, 1 A
- European standard: POWER-E-12V1A, model MSA-C10001C12.0-12W-DE, UL/CE/FCC
- USB mouse
- HDMI cable
- USB 3.0 A-to-A cable with gold-plated plugs, 2.0 m
- CD containing driver and utility software, Ø 12 cm
