Moticam BTX

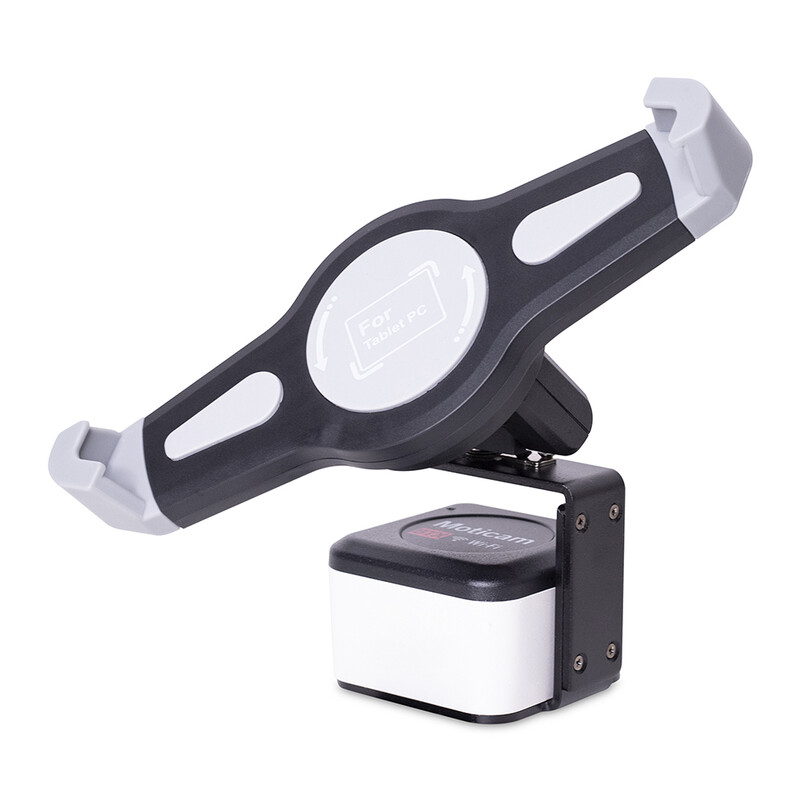

The Moticam BTX is the most flexible solution for tablets. It consists of a 4 MP camera with a built-in adjustable holder to which you can attach your own tablet (up to 10"). The camera can be connected to an iOS or Android tablet via Wi-Fi. Moticam BTX helps microscope users visualise, edit and share microscope images and enables computer-free digital microscopy.
Specifications Moticam BTX
Mounting: for tablets from 7" to 10" (tablet not included)
Sensor type: CMOS
Sensor size: 1/3"
Image area: 5.44 x 3.07 mm
Number of pixels: 4.0 MP (2592x1520 pixels)
Live display mode via USB: depends on the display resolution of the tablet
Live display mode via Wi-Fi: 1280x720, 1920x1080 pixels (Full HD)
Live display mode via Ethernet: 1280x720, 1920x1080 pixels (Full HD)
Pixel size: 2.0 x 2.0 µm
Scan mode: Progressive

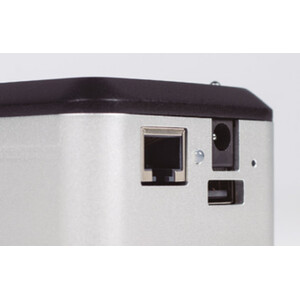

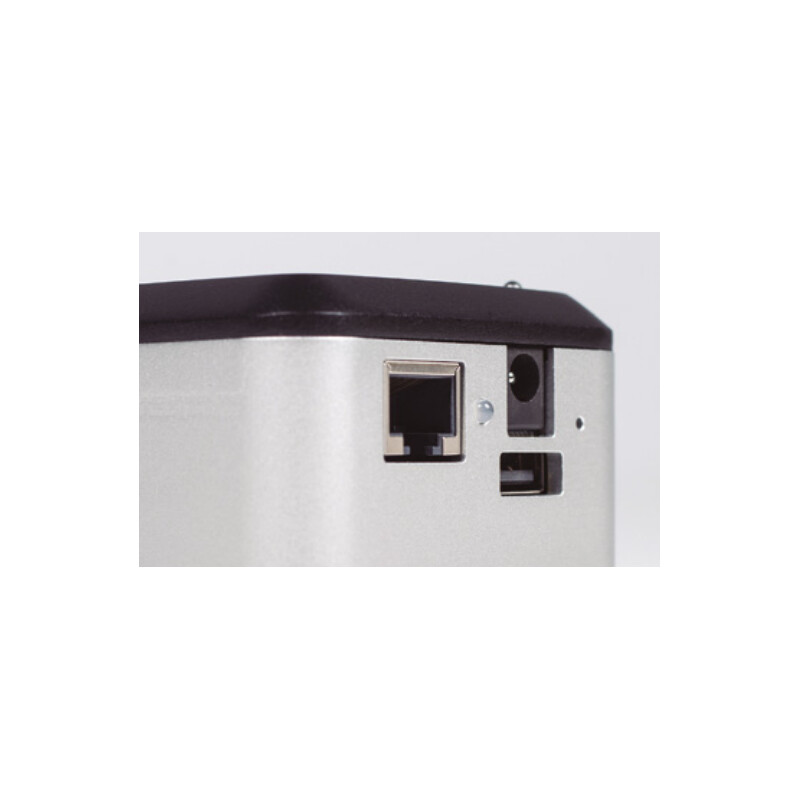

Data transmission: Wi-Fi (2.4 & 5 GHz), Ethernet
Max. frames per second (fps): 1920x1080 @ 30fps, 1280x960 @ 30fps (depending on Wi-Fi strength, under optimal lighting conditions and in accordance with the minimum computer requirements)
Exposure time: 0.03 msec to 0.03 sec
Operating temperature: 0 to +60 degrees Celsius, non-condensing
Signal-to-noise ratio: 38.3 dB
Dynamicrange: 64.4 dB
Sensitivity: 1.9 V/Lux-sec (550 nm)
Supported instruments: Universal web browser (HTML5)
Supported operating systems: Microsoft Windows 7/8/10, MAC OSX, Linux, Android 4.0 or higher, iOS7 or higher
Minimum computer requirements: 2GHz dual-core processor, 2GB RAM, at least 512 MB video memory
Lensconnection: C-mount
Software: MotiConnect app for Windows, Mac, Linux, iOS and Android (download only)
Software features: Still image and video recording, still image measurement, image settings, white balance, automatic and manual exposure, individual lens calibration system.
Power supply: 12V (external)
Scope of delivery: CS ring adaptor, Motic 4-position calibration slide holder, macro calibration card, Universal power pack 100V-240V (CE).
