The INFINITY2 CCD USB 2.0 cameras are equipped with a high-quality Sony CCD sensor and offer excellent sensitivity, a wide exposure time range and 12-bit digital data output. Among other things, the following functions are offered: image binning, automatic white balance, programmable gain, partial image and partial area selection. They are ideal for demanding scientific, medical, ophthalmic and natural science applications.
Special features
- 1, 2 and 3 megapixel resolution
- Higher dynamic range for quantitative analysis
- Fast frame rate
- Low-noise electronics
INFINITY Camera Performance Specifications
- Automatic/manual exposure
- Automatic/manual white balance
- Programmable gain, optimisable from 1 to 10X
- INFINITY1, 2 & 3 — C-mount thread
- INFINITY4 — F-mount thread
- USB 2.0 high-speed interface (USB 480 MB/s compared to Firewire 400 MB/s)
- Power supply: INFINITY1 & 2 - USB bus
- Operating temperature 0ºC to +50ºC
- Operating humidity 5% to 95%, non-condensing
INFINITY ANALYZE software
All Lumenera INFINITY cameras include INFINITY ANALYZE software, which provides full camera control and advanced image capture and analysis.
The following features are included:
- Real-time video preview
- Measurements and annotations
- Archiving with search by date, author, description
- Composition of fluorescence images includes RGB look-up tables (LUTs)
- Single image capture and time series
- Image stitching
- Automatic/manual exposure and white balance
- Hue, saturation, gain, contrast, brightness and gamma controls
- Advanced image processing
- User-specific interface for specific applications
- Worksheet with thumbnail views
- Drag & drop measurement data into Excel for analysis
- Save and restore camera settings
- Context-sensitive help function for all functions
- Optional image sharpening
Also included is INFINITY CAPTURE, an intuitive user interface that provides all the basic functions for operating the camera and capturing images. Integrate your INFINITY camera into third-party software applications using TWAIN and DirectX/WDM interfaces (included).
Applications
Bright field, dark field, DIC, live cell image processing, histology, pathology, cytology, failure analysis, semiconductor inspection, metrology
Mac plug-in for INFINITY cameras
- A Mac plug-in is now available for all INFINITY cameras.
- Compatible with Mac OS 10.4 (requires Quick Time V7)
- Visit Lumeneras website and download the latest version

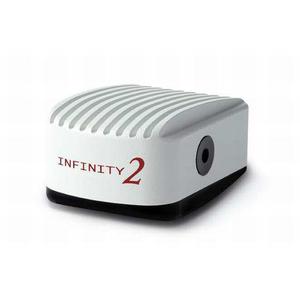

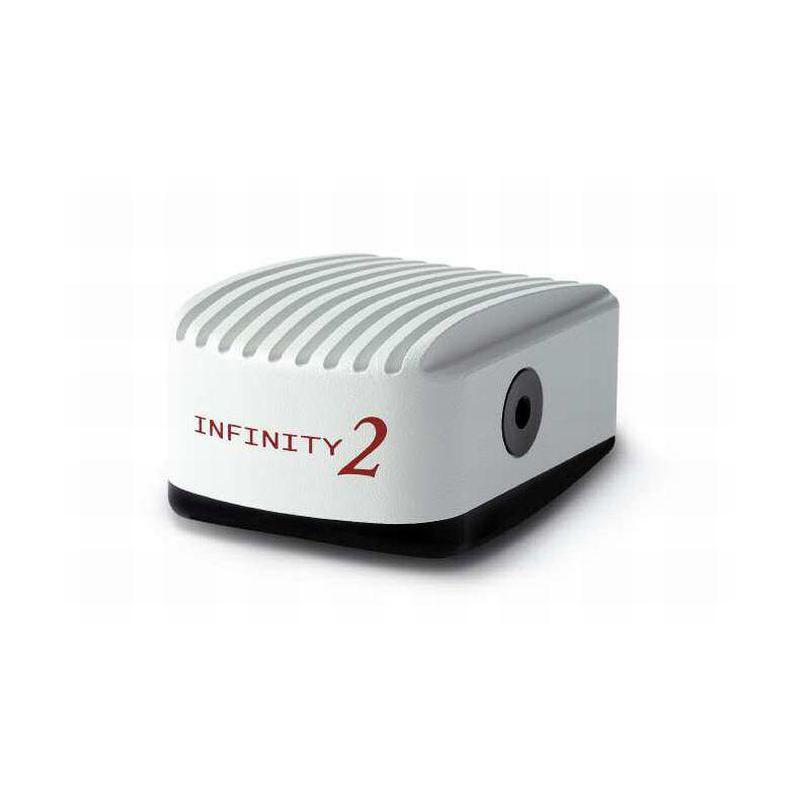

INFINITY2-3C, CCD color, 3.3 MP
Lumenera's INFINITY2-3 digital CCD camera is ideally suited for brightfield, darkfield, and DIC imaging applications where higher resolution archiving and a wide dynamic range are routinely required.
With 2080 x 1536 resolution and on-board processing, the INFINITY2-3 delivers outstanding image quality for a wide variety of scientific applications. Live video preview provides for real-time focus while auto exposure and auto white balance efficiently capture your optimal image. An intuitive user application provides camera controls while full integration to popular third-party imaging applications is available through our TWAIN drivers.
The USB 2.0 digital interface ensures simple plug-and-play installation, and one standard cable minimises camera clutter.
Every INFINITY camera includes INFINTY ANALYZE software for advanced camera control, image processing, measuring and annotation, as well as INFINITY CAPTURE, an intuitive user interface which includes all of the basic features needed to control your INFINITY camera and capture images.
The INFINITY2-3 is available in colour as well as board-level OEM and custom camera enclosures.
INFINITY cameras are supported by an experienced team of technical support and imaging experts. We understand your imaging needs and are here to help you get the most out of your camera.
Product highlights:
- High-speed USB 2.0 interface for ease of installation on any computer
- The low noise characteristic 3.3 megapixel CCD image sensor
- Crisp colour quality for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, histology, life science and geology
- Full colour sub-windowing allows for rapid focus and scanning of samples: 5 fps at full 2080 x 1536 resolution
- Select 8 and 12-bit pixel data modes
Included in the box:
- INFINITY2-3C — 3.3 megapixel colour CCD camera
- 2 m USB 2.0 cable
- LuINFSW-DVD — DVD with INFINITY user application software (including INFINITY ANALYZE), TWAIN driver and documentation
